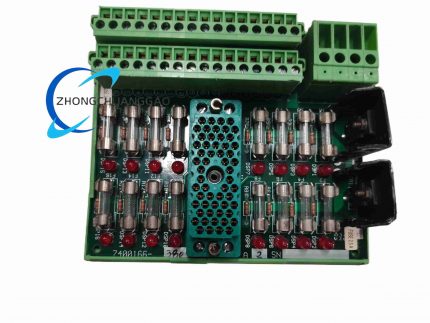

TRICONEX 9662‑810
TRICONEX 9662‑810

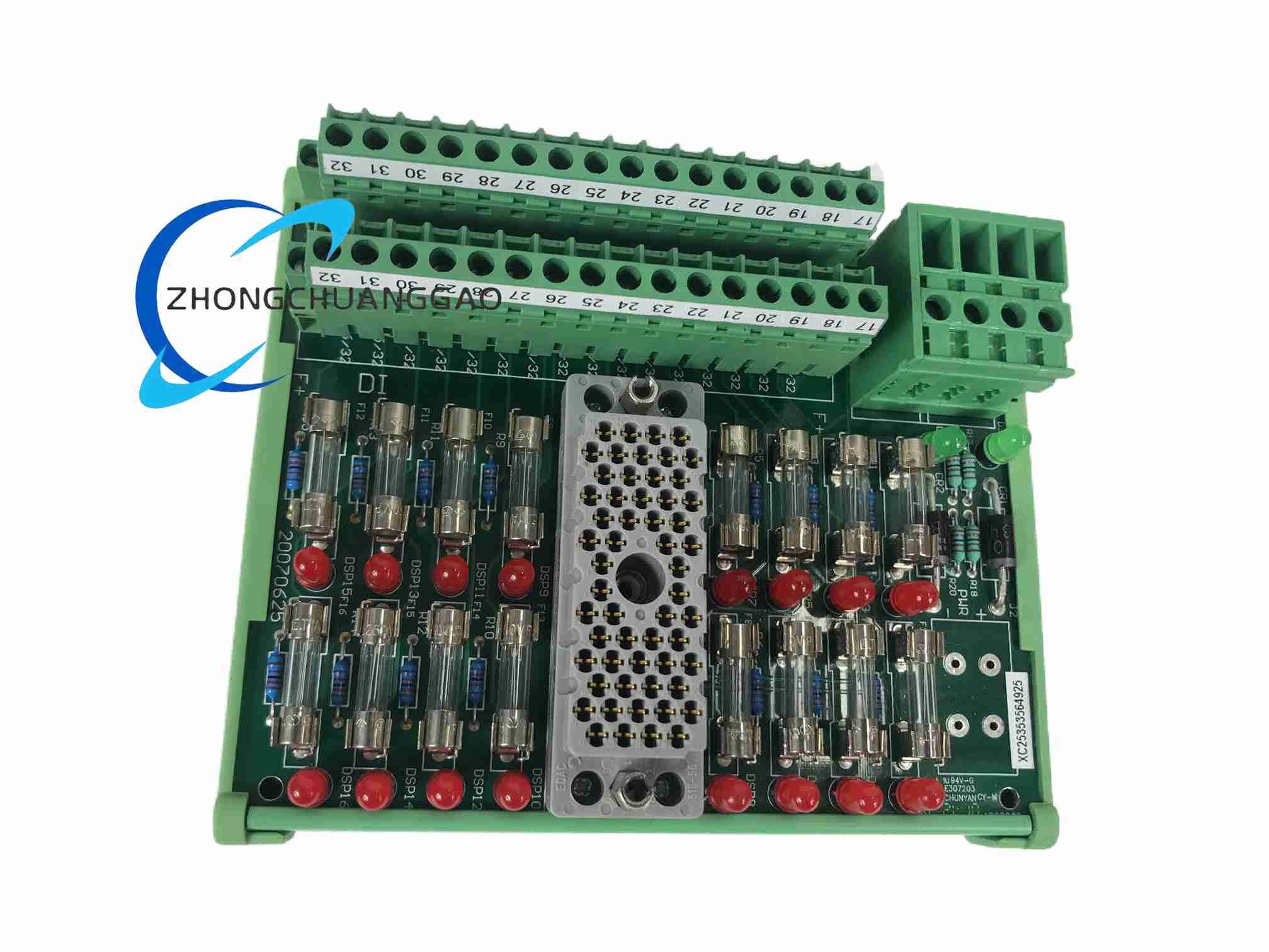

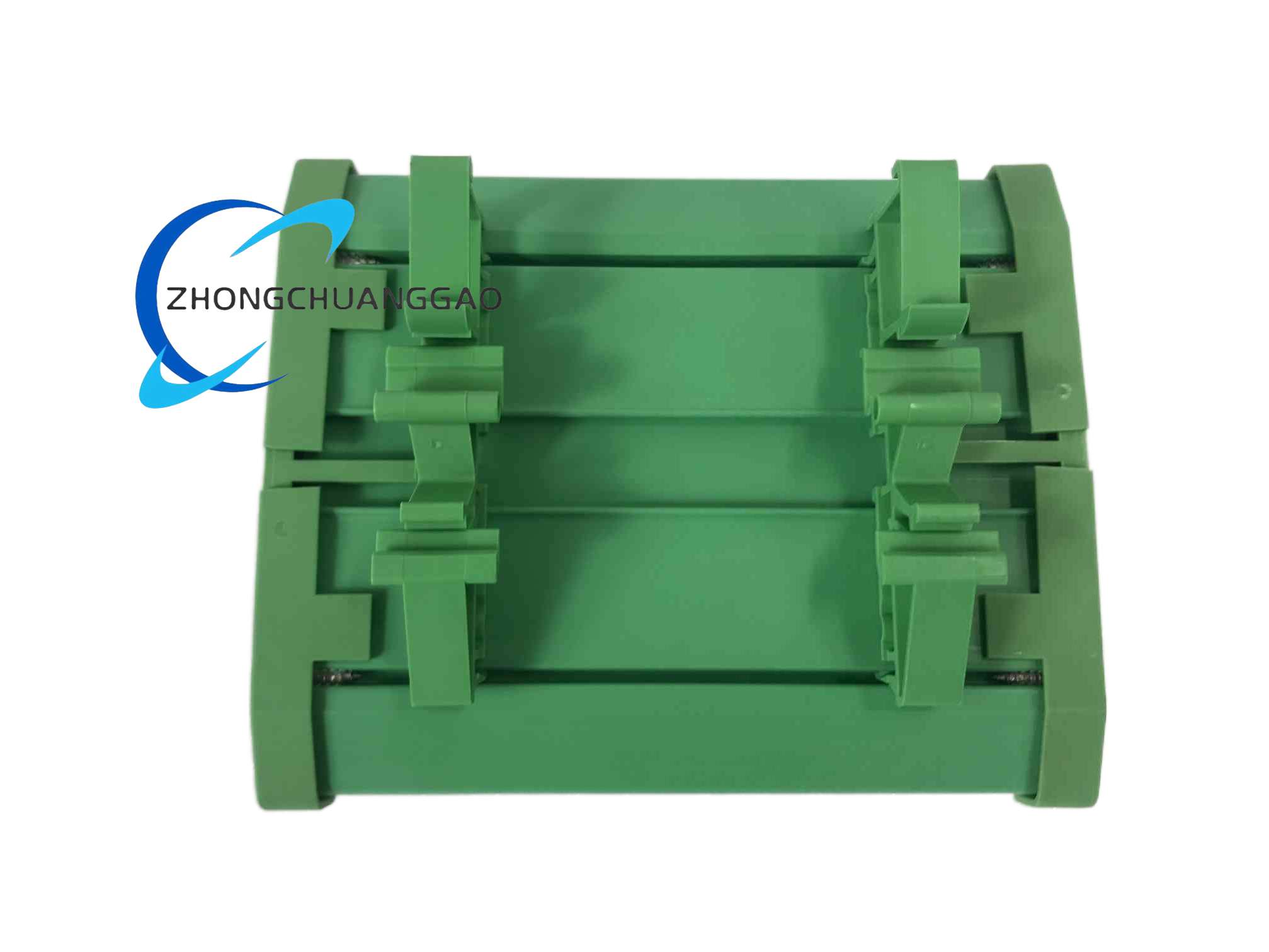

TRICONEX 9563‑810

Product Name

Triconex 9563‑810 Digital Input Module

Product Introduction

Tricon TMR triple‑modular‑redundancy discrete‑input module. It acquires digital signals from field switches, valve position feedback and pressure switches for logical computation inside SIS safety systems.

Category:
Description

Technical Specifications

TMR triple‑modular‑redundant digital input; 24VDC field‑signal acquisition; SIL3 safety level; Compatible with Tricon main rack; Channel fault‑diagnosis capability.

Functional Features

Triple‑voting architecture; Input‑loop wire‑break detection; Channel‑fault identification; Fault‑channel isolation; Supports on‑line module replacement.

Application Scenarios

Chemical‑plant SIS safety systems; Emergency‑shutdown‑system signal acquisition; Field valve‑position feedback, pressure‑switch and limit‑switch signal collection; Gas‑facility interlock protection.

Performance Parameters

SIL3; Operating temperature: 0‑60℃; Nominal input: 24VDC; Open‑circuit and short‑circuit fault identification; Per‑channel status LED indication.

Material Composition

Flame‑retardant industrial housing; Gold‑plated backplane connectors; High‑reliability industrial PCB; Signal‑conditioning circuits.

Structural Characteristics

Rack plug‑in card; Front‑panel per‑channel status LED indicators; Backplane connection to Tricon system bus; Field signals are routed through matched terminal boards.

Working Principle

Field switch signals enter three independent input circuits. Three signal copies are processed by majority‑vote logic. Only majority‑consistent signals are accepted by system. Module monitors loop impedance to detect open‑circuit and short‑circuit faults.

Installation Requirements

Install inside standard Tricon cabinet rack; Ensure good cabinet grounding; Deploy shielded field signal cables; Fasten wiring terminals; Keep cabinet temperature within allowable range.

Precautions for Use

Do not apply field‑signal voltage exceeding rated 24VDC; Suppress surge voltages entering module; Forbid hot‑plugging backplane interfaces; Perform maintenance in compliance with safety‑instrumented‑system work procedures.
