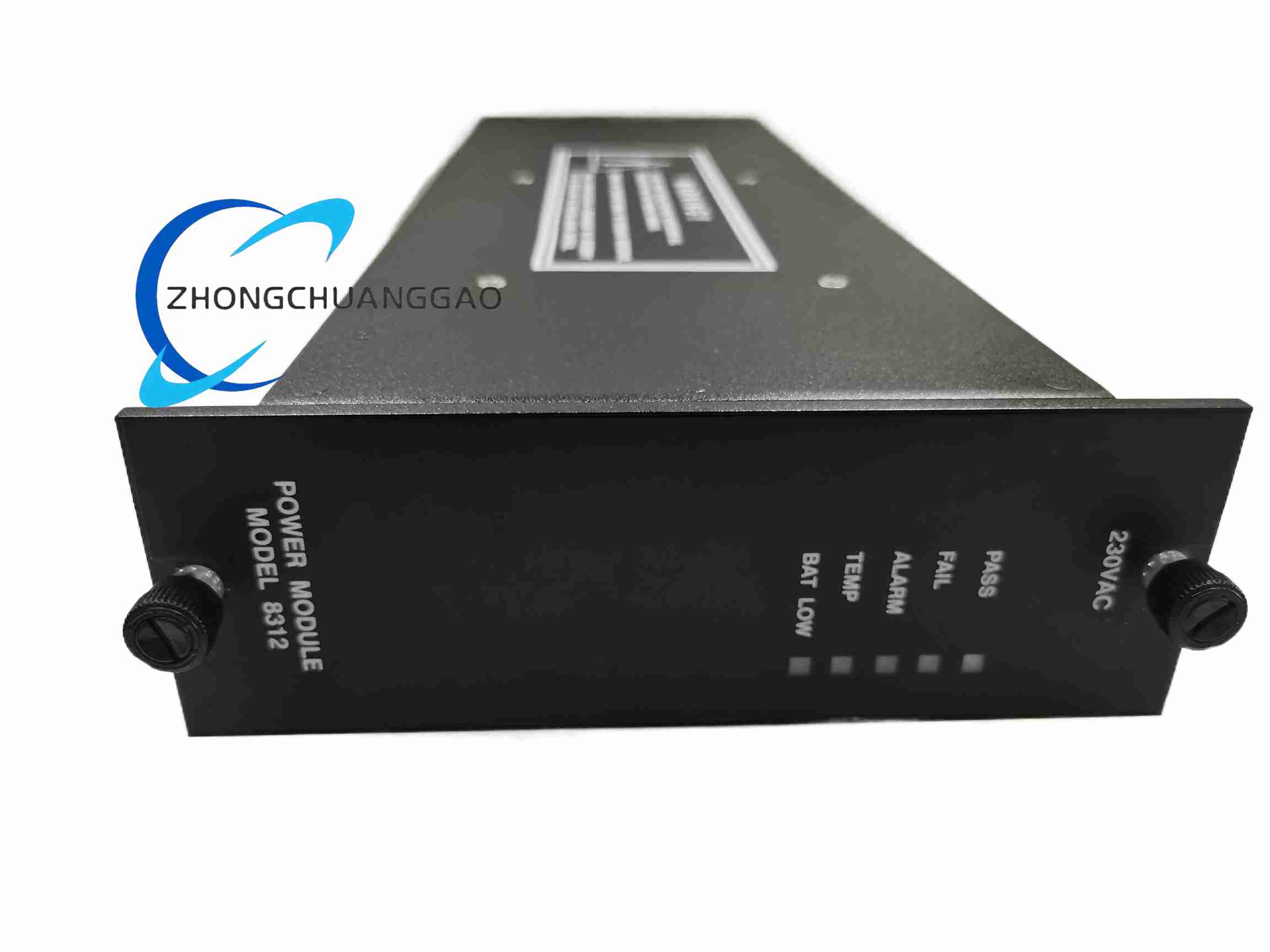

TRICONEX 8312 - Image 1

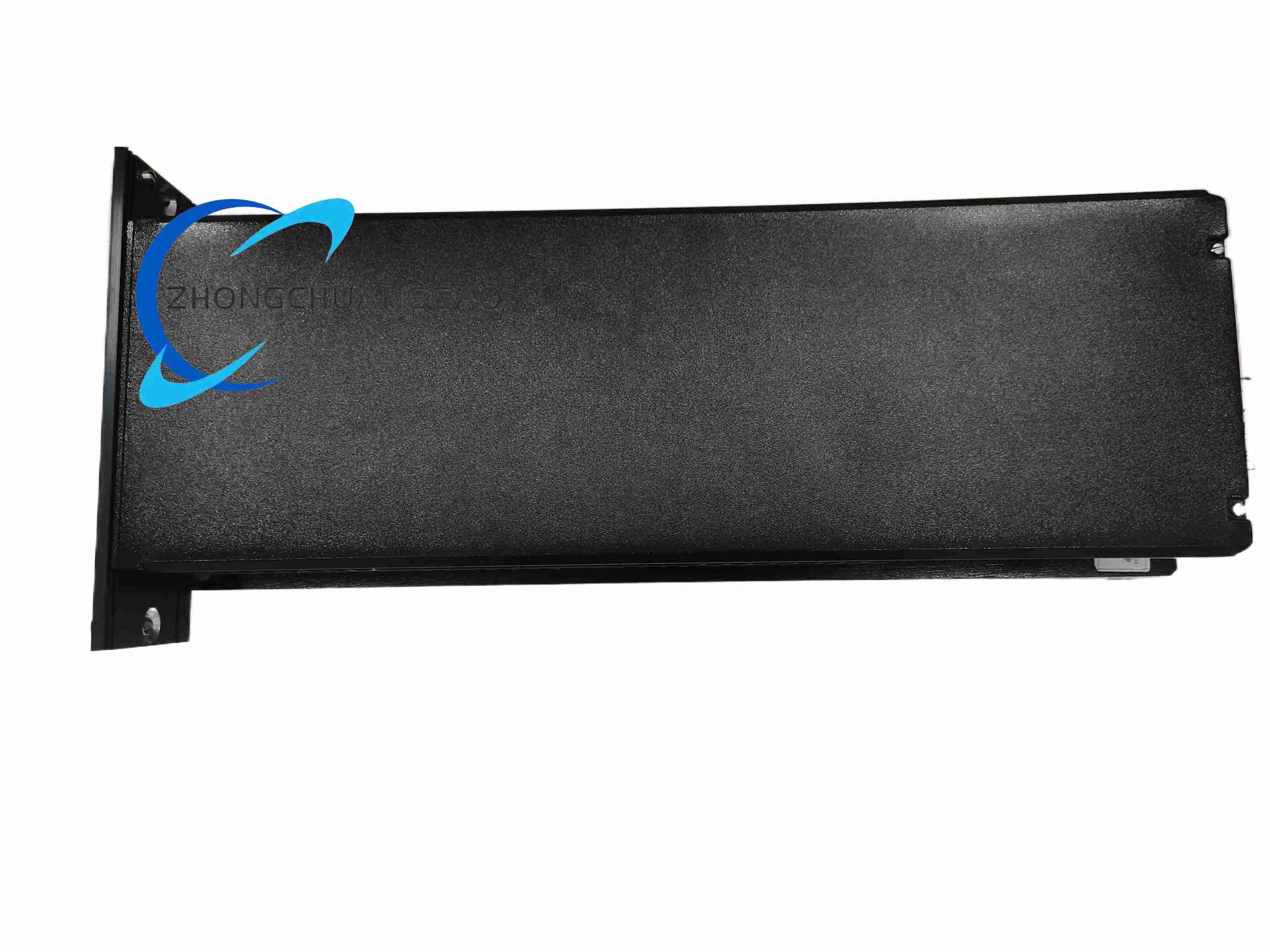

TRICONEX 8312 - Image 2
Click to enlarge
TRICONEX 8312
TRICONEX 8312 - Image 2
WOODWARD 8290‑191
WOODWARD 8290‑191
Back to products
WOODWARD 5466‑348
WOODWARD 5466‑348

TRICONEX 8312

Product Name: Triconex 8312 TMR Power Supply Module

Product Introduction: Triple Modular Redundancy power supply module for Triconex safety instrument system, provides stable power supply for internal rack modules of safety control system.

Technical Specifications: TMR triple redundant power supply architecture; SIL3 safety certification; wide input voltage range; output over‑voltage, over‑current protection.

Category:
Description

Functional Features: Redundant power output; internal fault self‑diagnosis; hot‑swap replacement; power supply fault alarm function.

Application Scenarios: Petrochemical ESD emergency shutdown system, fire‑gas safety system, high‑reliability safety‑related control systems.

Performance Parameters: Wide‑range AC or DC input; stable rated output for system rack; operating temperature 0 °C‑60 °C; hot‑swap supported.

Material Composition: High‑reliability power conversion circuit board; metal housing with heat‑dissipation structure; safety‑grade power components.

Structural Features: Rack plug‑in power supply unit; front‑panel power and fault status indicators; modular hot‑swap structure.

Working Principle: Multiple internal power conversion channels work in redundant mode, perform power voting output, single‑channel power unit fault will not interrupt system power supply, guarantee continuous power supply for safety system.

Installation Requirements: Install in dedicated Triconex system rack; meet input power specification; ensure cabinet ventilation and heat dissipation; reliable protective grounding.

Precautions for Use: Must use within specified input voltage range; do not open module housing; replace only with original specified spare parts; regularly check power fault diagnostic information.
