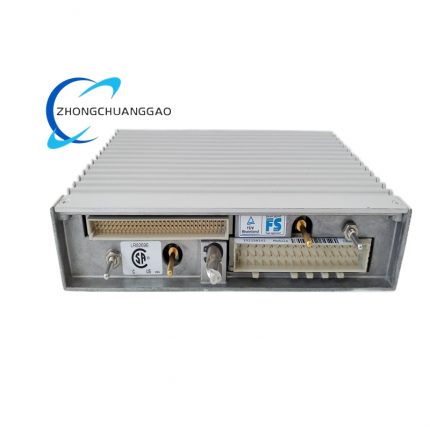

Triconex 3301S2 Digital Input Module
Triconex 3301S2 Digital Input Module
Back to products
Triconex 3481S2 Analog Output Module
Triconex 3481S2 Analog Output Module

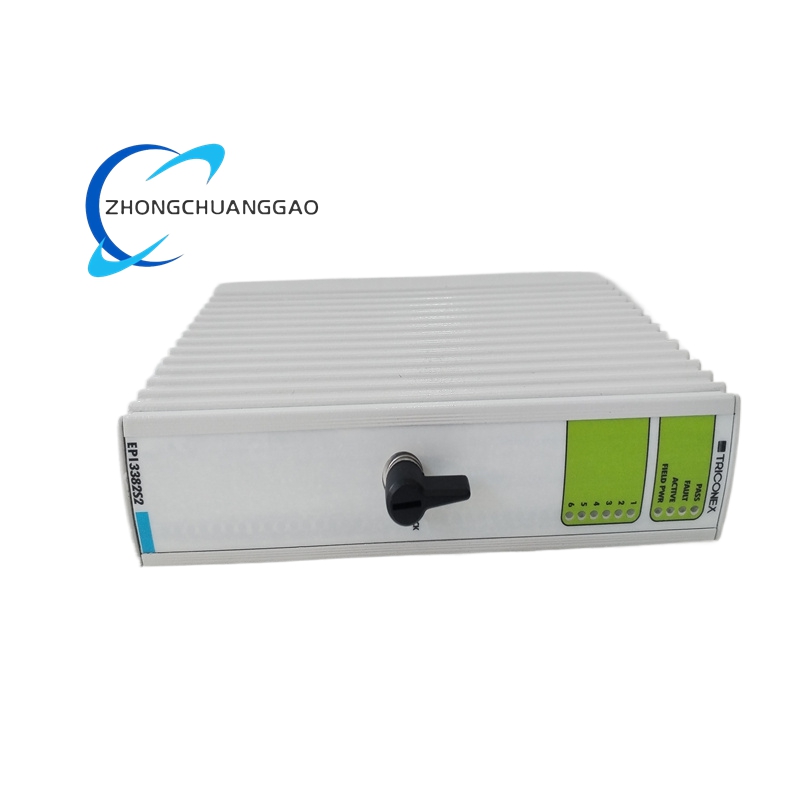

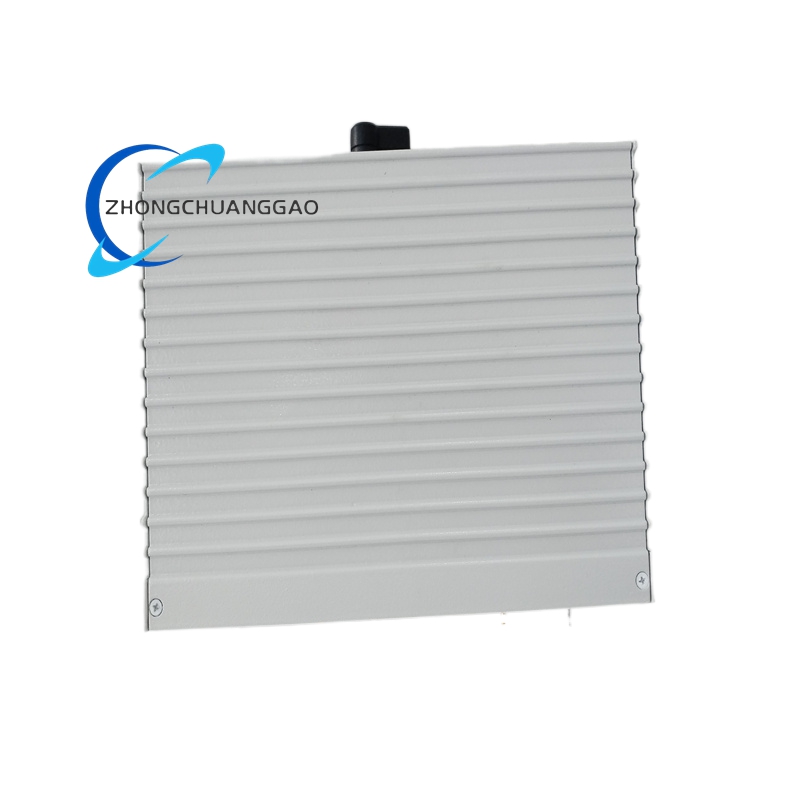

Triconex 3382S2 Digital Input Module

Product Overview
The Triconex 338S2 is a high-performance digital input module designed for safety-critical applications in industrial automation. It is part of the Triconex TMR (Triple Modular Redundant) architecture, ensuring fault tolerance and high reliability by providing three independent channels for signal processing. This module is widely used in industries requiring stringent safety standards, such as oil and gas, petrochemicals, power generation, and nuclear energy.

Category:
Description

Technical Specifications

  • Input Channels: 32 independent digital input channels
  • Signal Types: Dry contacts, pulse signals, and other digital signals
  • Input Voltage Range: 24 V DC (18–32 V DC acceptable)
  • Input Current: Maximum 6 mA per channel
  • Channel Isolation: Each input channel is electrically isolated from the system bus
  • Redundancy Design: TMR architecture with three redundant input paths per channel
  • Response Time: ≤5 ms (including filtering)
  • Diagnostic Functions: Supports line monitoring, open-circuit detection, and short-circuit detection
  • Operating Temperature: -20°C to +60°C
  • Storage Temperature: -40°C to +85°C
  • Humidity Range: 5%–95% RH (non-condensing)
  • Protection Class: IP65 (front panel)
  • Dimensions: 230 mm x 170 mm x 80 mm

Functional Characteristics

  • High Reliability: TMR architecture ensures continuous operation even if one channel fails.
  • Fault Tolerance: Self-diagnostics detect faults and trigger alarms for timely maintenance.
  • Signal Quality Enhancement: Provides signal filtering, isolation, and debouncing to improve signal integrity.
  • Compatibility: Works seamlessly with other Triconex I/O modules and controllers in a TMR system.
  • Ease of Maintenance: Modular design supports hot swapping, reducing downtime during maintenance.

Application Scenarios

  • Oil and Gas: Used in refineries, gas processing plants, and pipelines for monitoring safety-critical signals such as emergency shutdown (ESD) triggers, valve positions, and pressure switches.
  • Petrochemicals: Ensures safe operation in chemical processing plants by monitoring reactor safety interlocks and equipment status signals.
  • Power Generation: Deployed in power plants for boiler and turbine control systems, monitoring critical parameters like generator status and protective device signals.
  • Nuclear Energy: Used in nuclear power plants for safety-grade applications, adhering to strict regulatory requirements.
  • Other Industries: Suitable for transportation (railways, aviation), military facilities, and data centers where high reliability and safety are essential.

Key Advantages

  • SIL 3 Certified: Meets the highest safety integrity level under IEC 61508 and IEC 61511 standards.
  • High Availability: TMR design minimizes downtime, ensuring continuous system operation.
  • Scalability: Supports up to 2,880 I/O points per controller group, with flexible expansion options.
  • Robust Design: Withstands harsh industrial environments, including high temperatures, humidity, and electromagnetic interference.
  • Global Certifications: Approved for use in nuclear power plants and railway signaling systems, meeting international safety standards.
