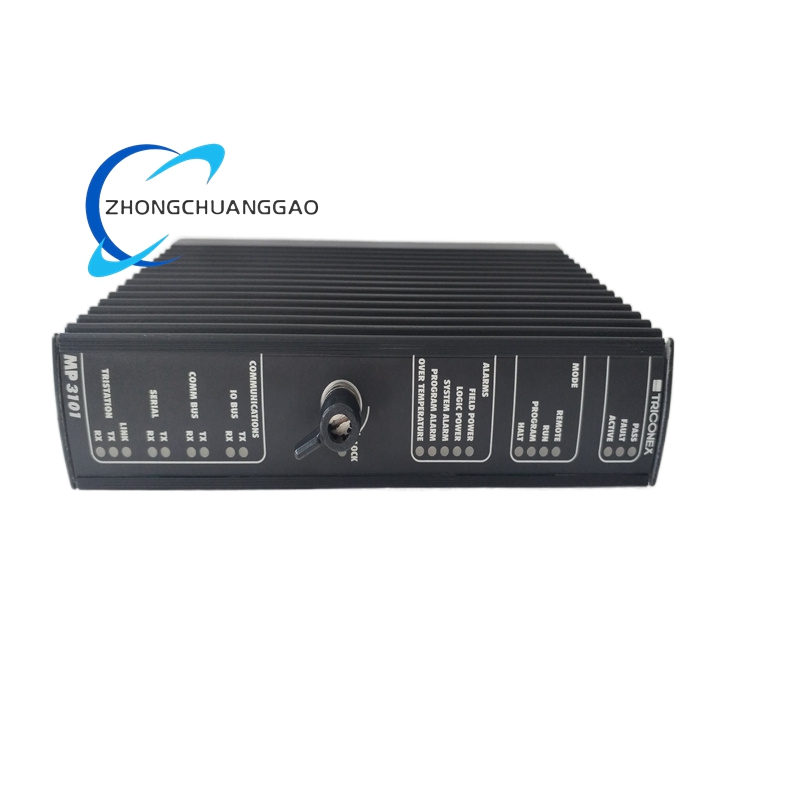

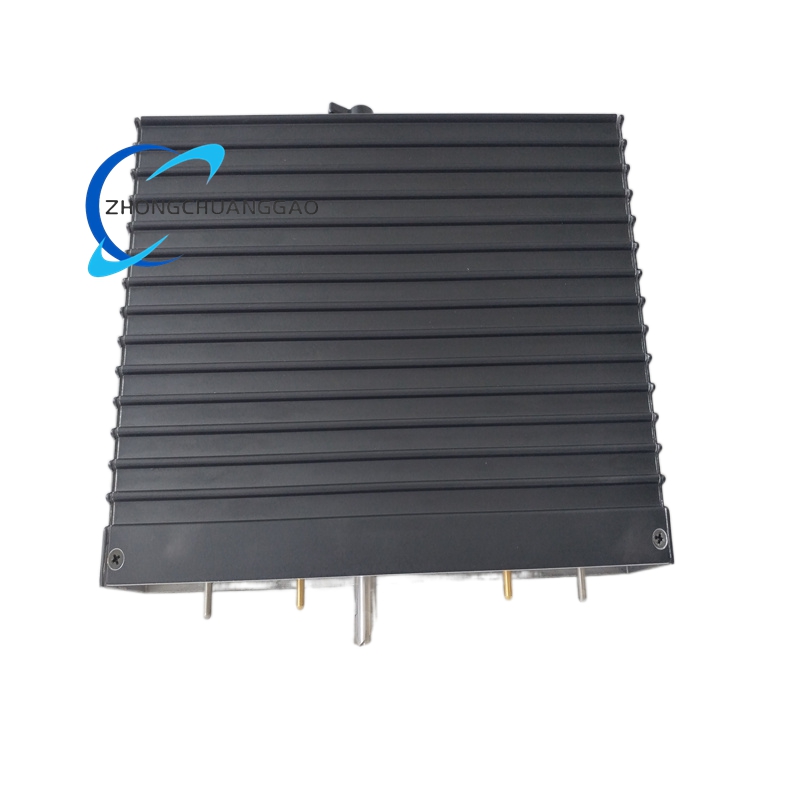

Triconex 3101 Main Processor Module
Triconex 3101 Main Processor Module - Image 2

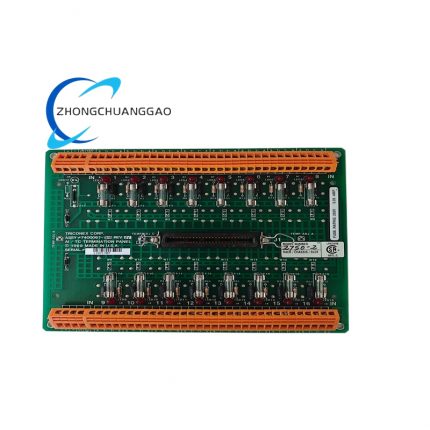

Triconex 275-2 Safety Controller Module
Triconex 275-2 Safety Controller Module
Back to products
Triconex 3301S2 Digital Input Module
Triconex 3301S2 Digital Input Module

Triconex 3101 Main Processor Module

Product Overview
The Triconex 3101 is a high-performance main processor module designed for industrial safety and automation systems. It serves as the core computing unit in Triconex’s Triple Modular Redundant (TMR) architecture, ensuring high reliability and fault tolerance in critical control applications. The module executes safety logic and control algorithms, maintaining system operation even during single-point failures. It is widely used in industries requiring stringent safety standards, such as oil and gas, petrochemicals, power generation, and nuclear energy.

Category:
Description

Technical Specifications

  • Architecture: Triple Modular Redundant (TMR) with three independent processing channels.
  • Processor: High-speed microprocessor optimized for real-time control tasks.
  • Memory: Sufficient RAM and Flash memory for storing control logic and historical data.
  • Input Voltage: 24 VDC (externally powered).
  • Operating Temperature: -40°C to 70°C, suitable for harsh industrial environments.
  • Communication Interfaces: Supports multiple protocols including Modbus, Ethernet, and proprietary TMR communication links.
  • Certifications: Complies with SIL 3 (Safety Integrity Level 3) standards under IEC 61508 and IEC 61511.

Functional Characteristics

  • TMR Redundancy: Three independent channels perform identical tasks, with voting mechanisms to ensure accurate decision-making. If one channel fails, the other two continue operation without interruption.
  • Fault Tolerance: Designed to detect and isolate faults automatically, enabling hot swapping of modules without system shutdown.
  • Real-Time Processing: Capable of high-speed data processing and decision-making for complex control tasks.
  • Diagnostics: Built-in self-diagnostics and health monitoring for each channel, with alerts for potential issues.
  • Data Logging: Supports event recording and reporting for fault analysis and system optimization.
  • Security: Incorporates cybersecurity features to protect against unauthorized access and data tampering.

Application Scenarios

  • Safety Instrumented Systems (SIS): Used in emergency shutdown systems (ESD), burner management systems (BMS), and fire and gas systems (F&G) to ensure safe operation.
  • Process Control: Provides reliable automation control in petrochemical plants, refineries, and power generation facilities.
  • High-Integrity Pressure Protection Systems (HIPPS): Prevents overpressure scenarios in pipelines and vessels.
  • Nuclear Power Plants: Ensures safe operation of critical equipment under stringent regulatory requirements.
  • Explosion-Hazardous Areas: Suitable for deployment in environments classified as hazardous due to the presence of flammable gases or dust.

Key Advantages

  • High Reliability: TMR architecture eliminates single points of failure, ensuring continuous operation.
  • Scalability: Can be integrated with various Triconex I/O modules to meet different application needs.
  • Ease of Maintenance: Hot swapping and online diagnostics reduce downtime and maintenance costs.
  • Global Certifications: Meets international safety standards, making it suitable for worldwide deployment.
  • Industry-Proven: Trusted by leading companies in oil and gas, power, and chemical processing industries.
