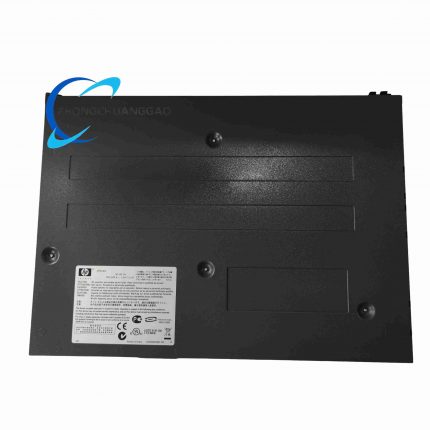

HP ProCurve J9022A 2810-48G
HP ProCurve J9022A 2810-48G
Back to products

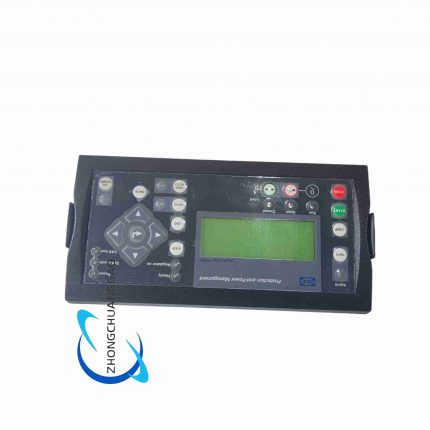

DEIF PPM3-6DG-6H3-1F1
DEIF PPM3-6DG-6H3-1F1

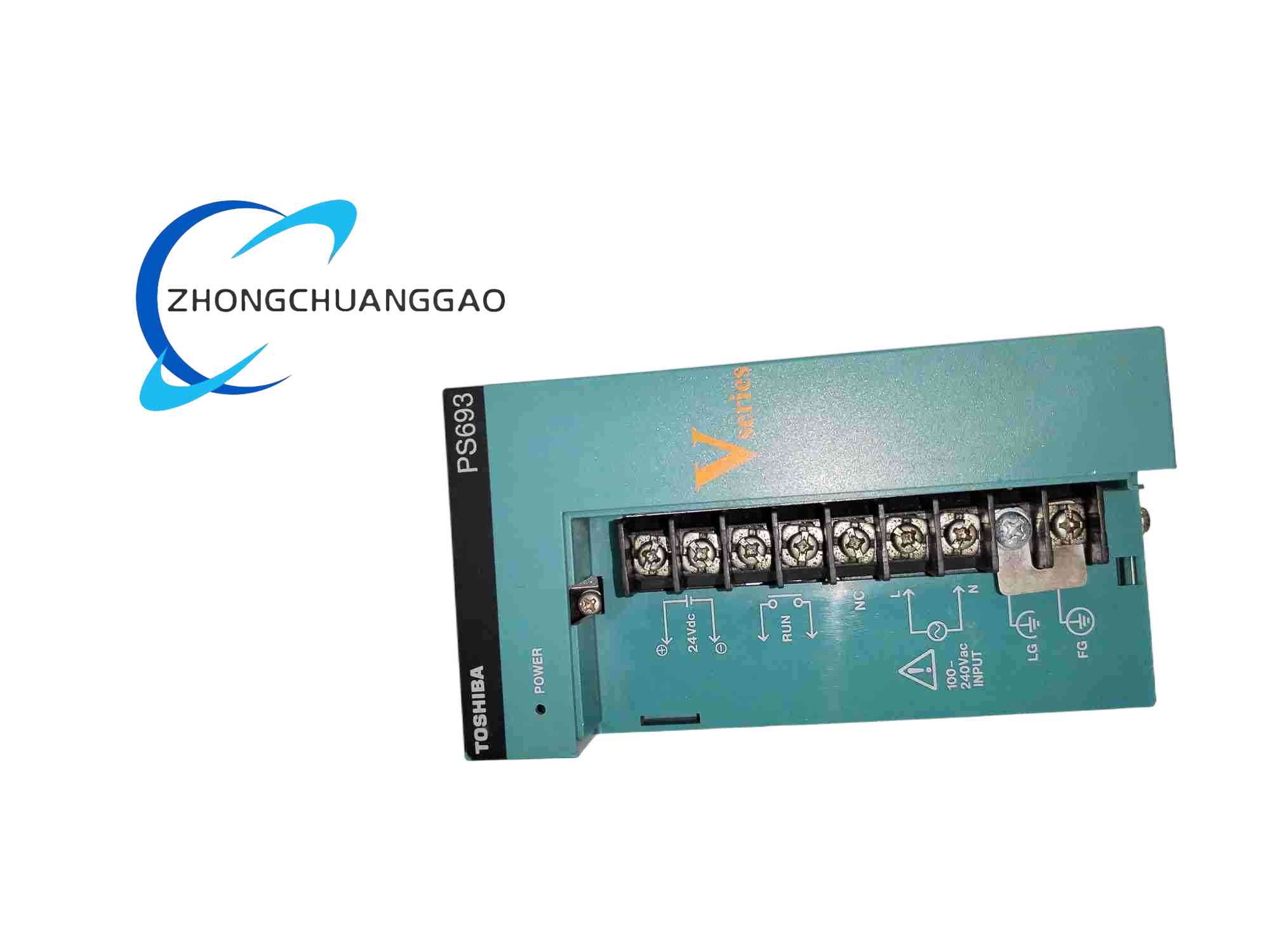

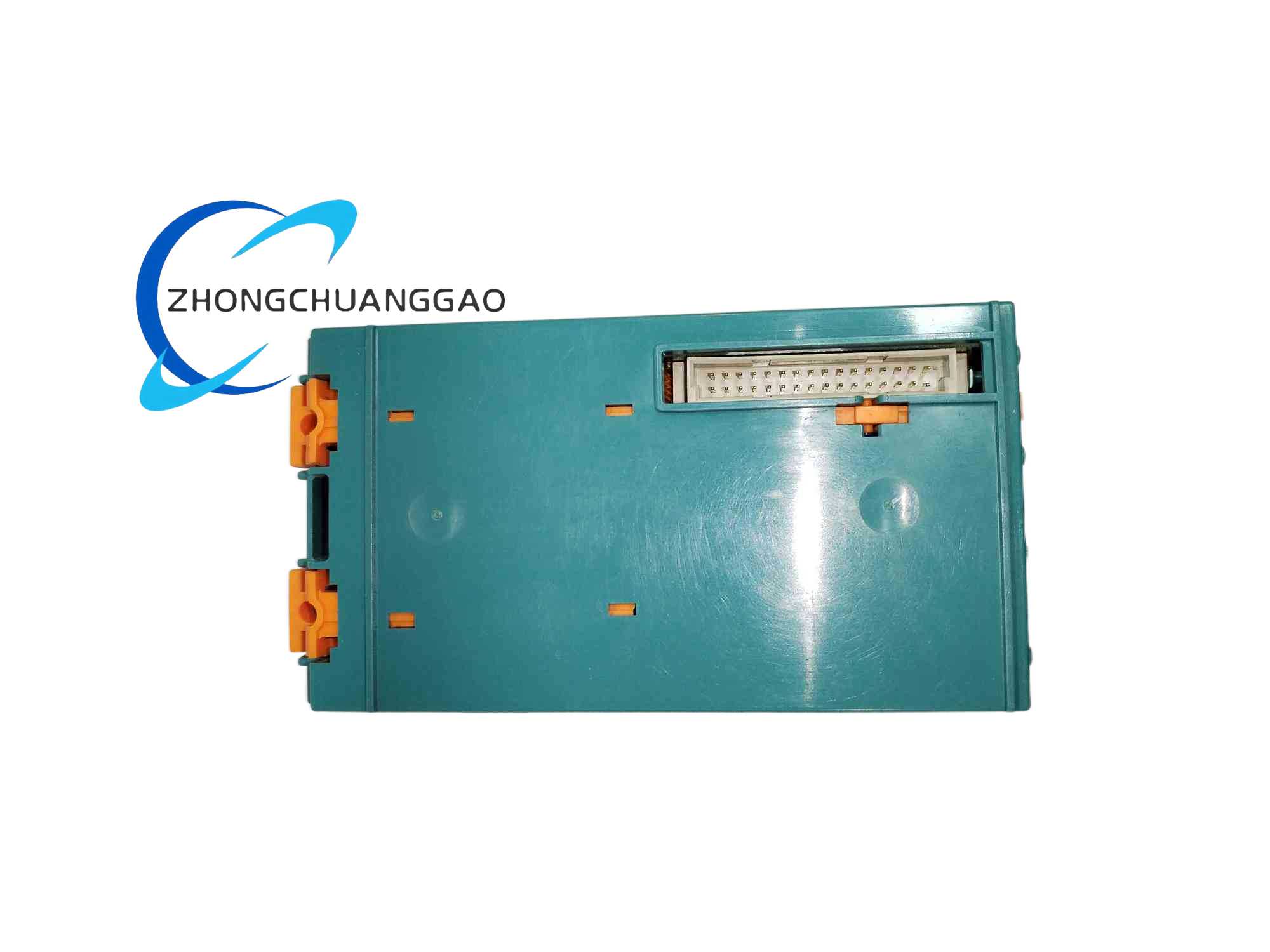

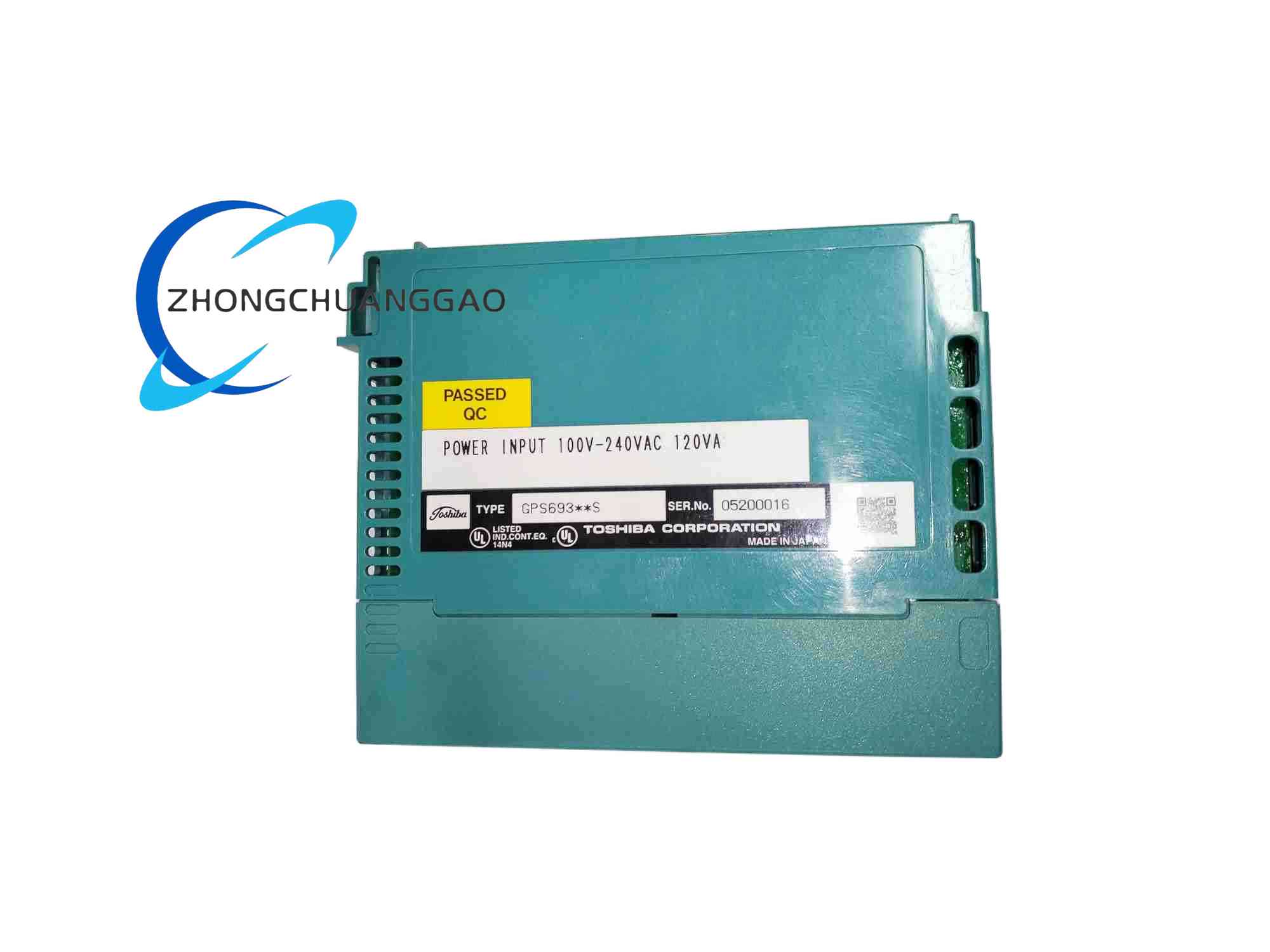

Toshiba PS693

Product Name:​ nv-Series Unified Controller Power Supply Module
Product Introduction:​ AC-input power unit for Toshiba nv light controller / PLC rack, feeds internal logic and external 24 V peripherals.
Category:
Description
Technical Specifications:
  • Input: 100–240 V AC (85–264 V), 50/60 Hz, 1.2 A max
  • Inrush: 30 A peak @ 220 V
  • Outputs: 5 V DC 7 A (logic), 3.3 V DC 1 A, 24 V DC 0.8 A (external, total 35 W)
  • Consumption: 120 VA max
  • Hold-up: ≥10 ms
  • Isolation: 2000 V AC 1 min, 500 V DC megger
  • Protection: overvoltage, overcurrent, overheat
  • Indicators: green POWER LED, RUN dry contact (1a, 24 V 0.2 A)
  • Mount: 2-slot width (70 mm), 70.5×130×104.5 mm, ~600 g
  • Life: electrolytic cap redesign every 8 years @ 40 °C avg
Applications:​ Backplane power for Toshiba nv-Series CPU, I/O, analog modules.
Notes:​ 24 V terminal not for heavy field loads; use external PSU for sensors/valves.
