Teknic SST-PB3-VME-2

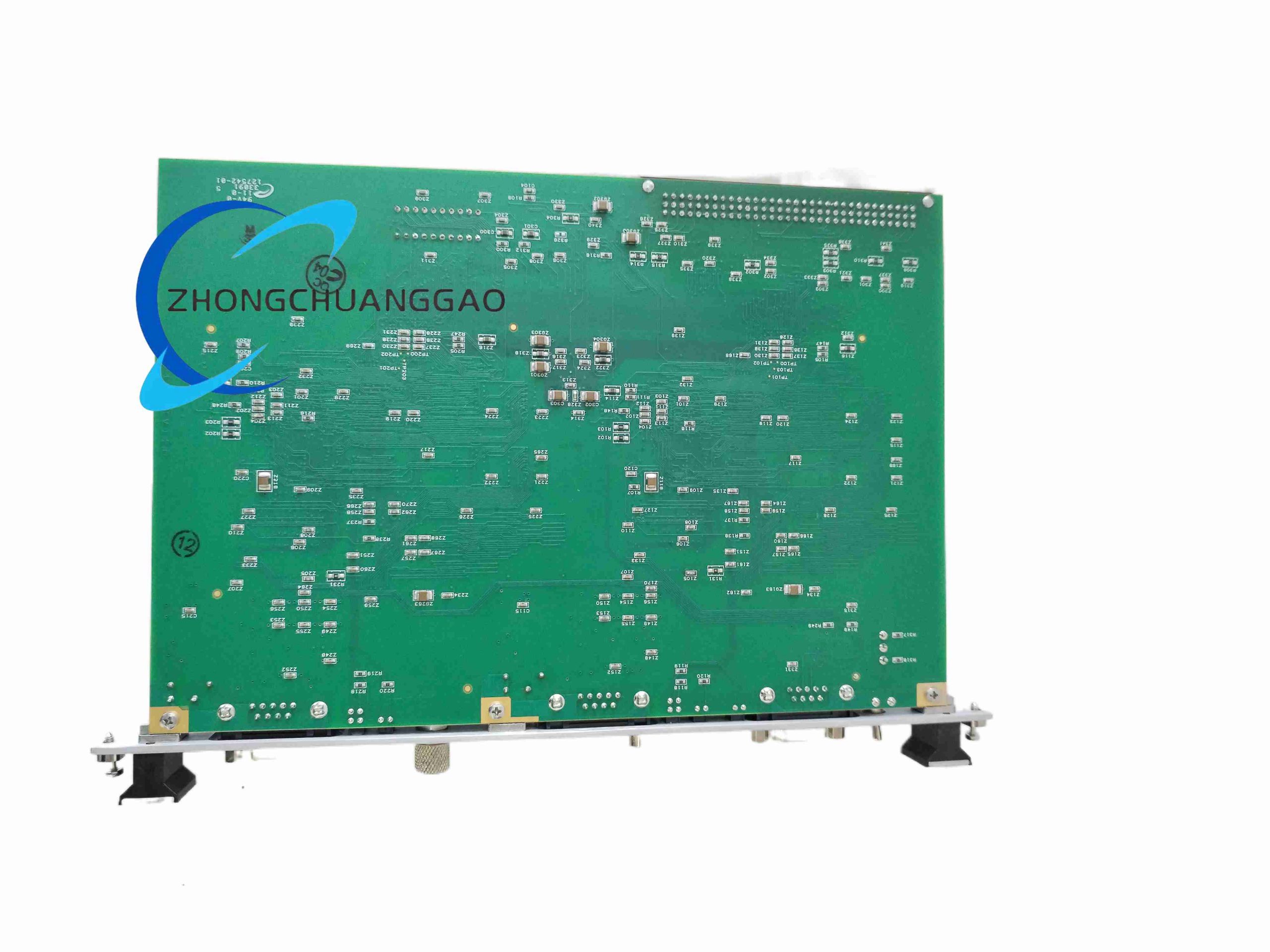

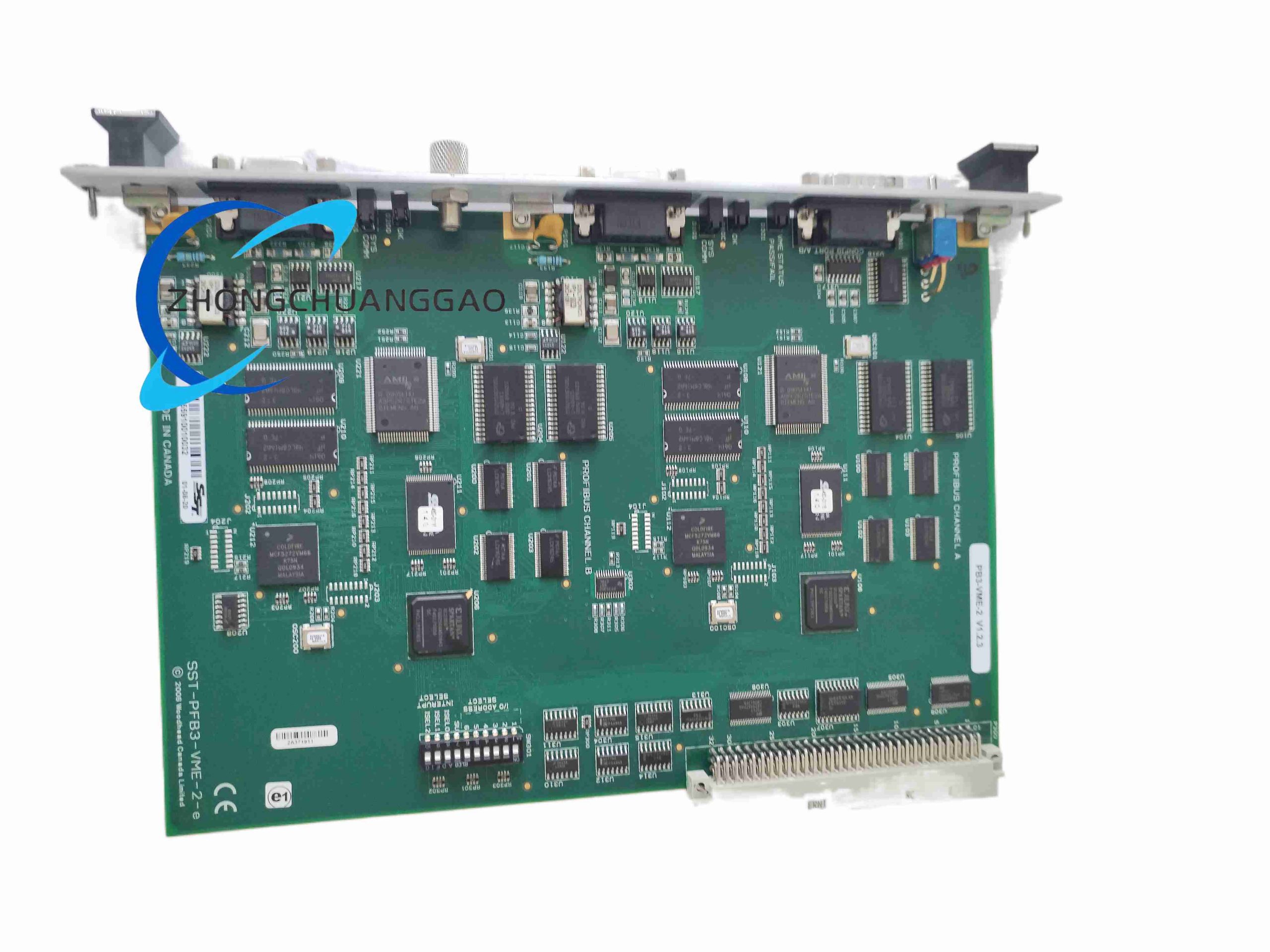

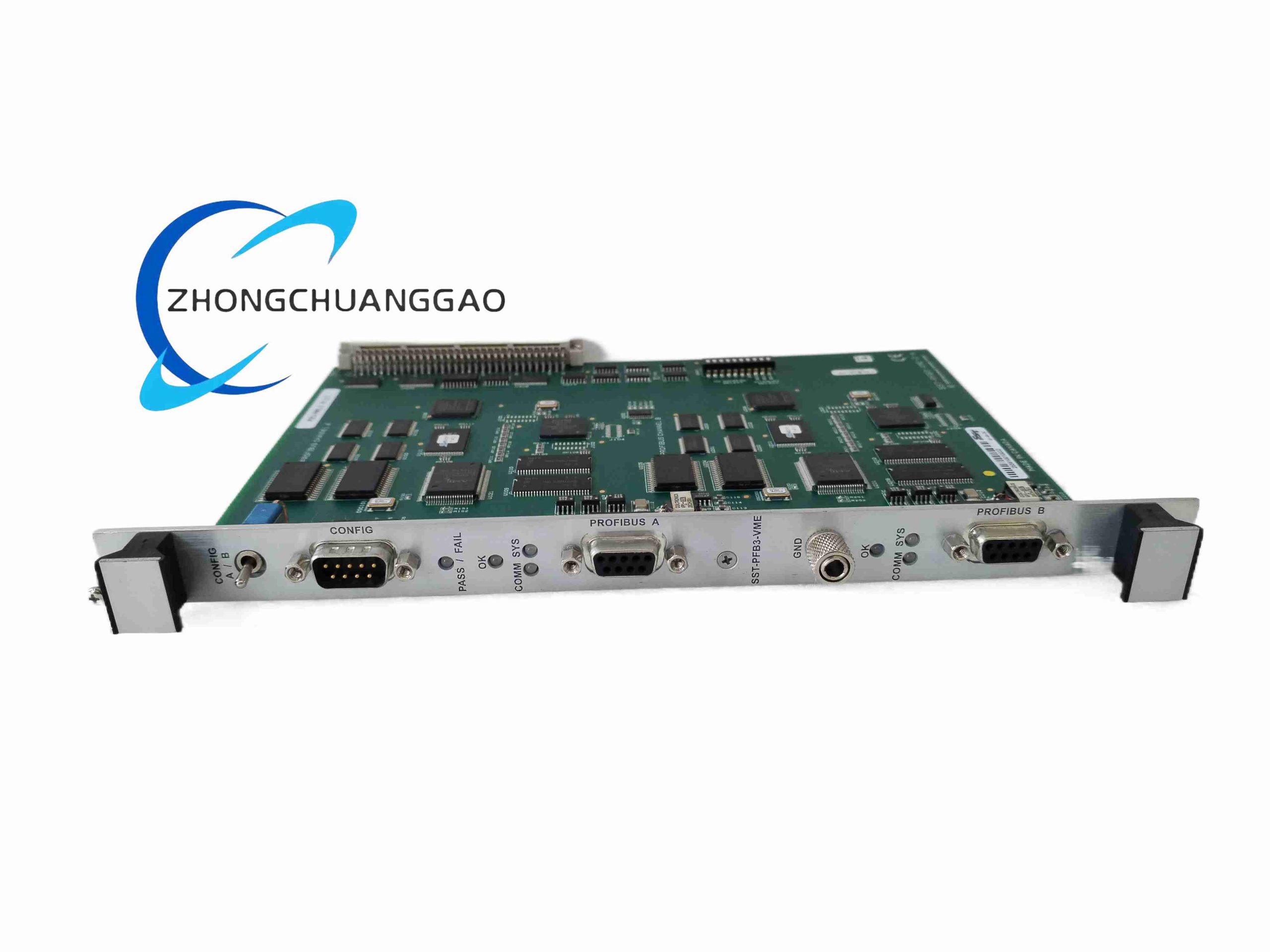

Product Name:​ Teknic SST-PB3-VME-2 — Profibus DP VME Bus Interface Module (SST Family, legacy motion/communication card)
Product Introduction:​ A VMEbus slave board providing a Profibus DP (Decentralized Peripherals) slave or master port for interfacing VME-based motion controllers or industrial computers to Profibus DP networks. Typically used in legacy multi-axis motion systems.
Category:
Description
Technical Specifications (typical for SST PB3 series):
  • Bus Interface:​ VMEbus (A16/A24/A32 address modifier support)
  • Fieldbus Port:​ 1 × RS-485 Profibus DP (9-pin D-sub), up to 12 Mbps
  • Profibus Conformance:​ DP-V0 / DP-V1 slave (depending on firmware)
  • Onboard Memory:​ Dual-port RAM for mailbox and cyclic data exchange
  • Configuration:​ Via GSD file imported to master (Siemens Step7 etc.) or SST configuration utility
  • Supply:​ +5 V from VME backplane
  • Operating Temp:​ 0 to +55 °C
  • Status LEDs:​ Run, Err, Tx/Rx, Link
Applications:​ Legacy CNC/motion control cabinets where VME CPU needs Profibus DP connectivity to Siemens PLC or remote I/O.
Notes:​ This is a discontinued product line; spare parts / second-source may be required. Verify firmware revision matches your master’s GSD version.
