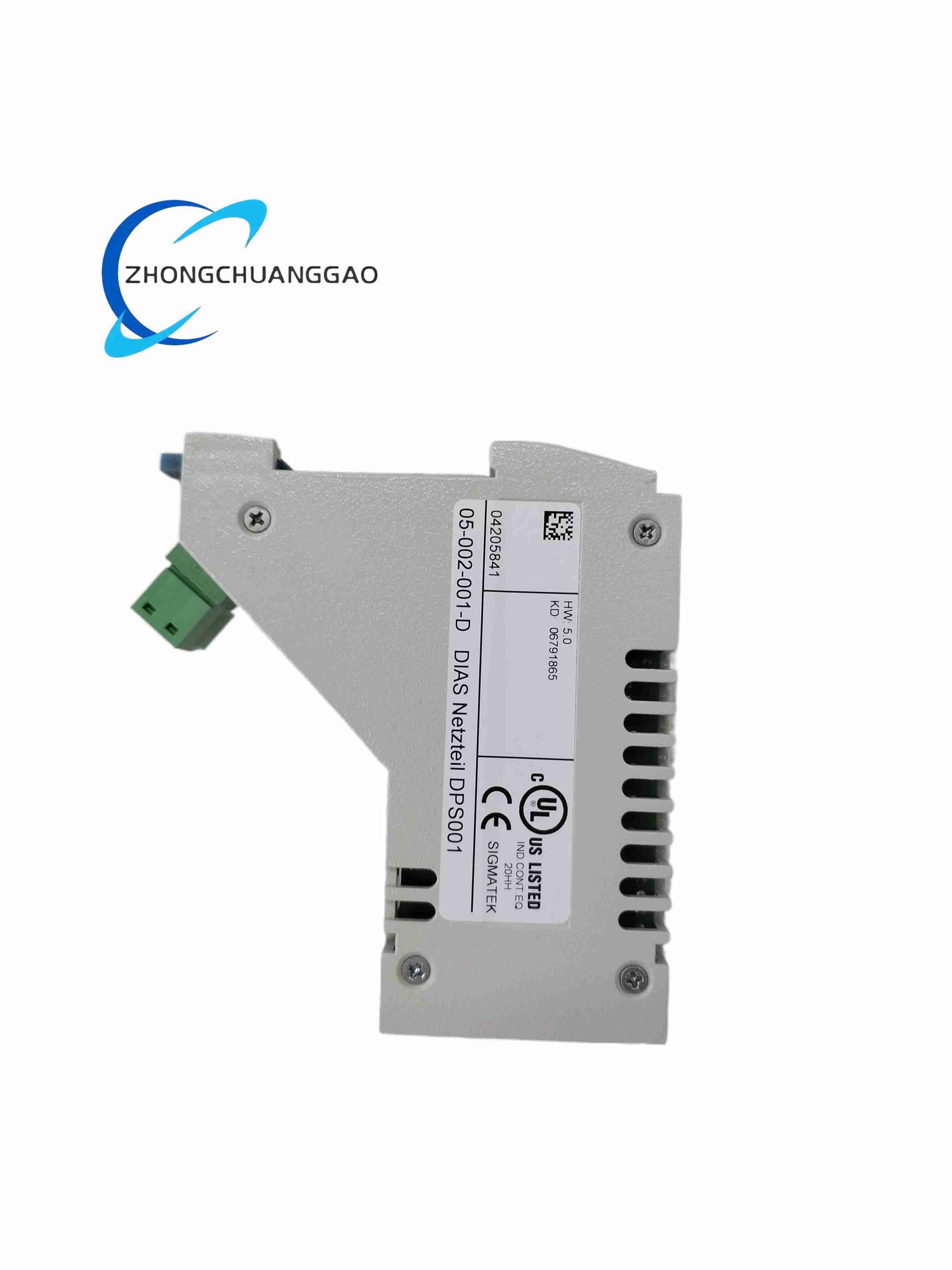

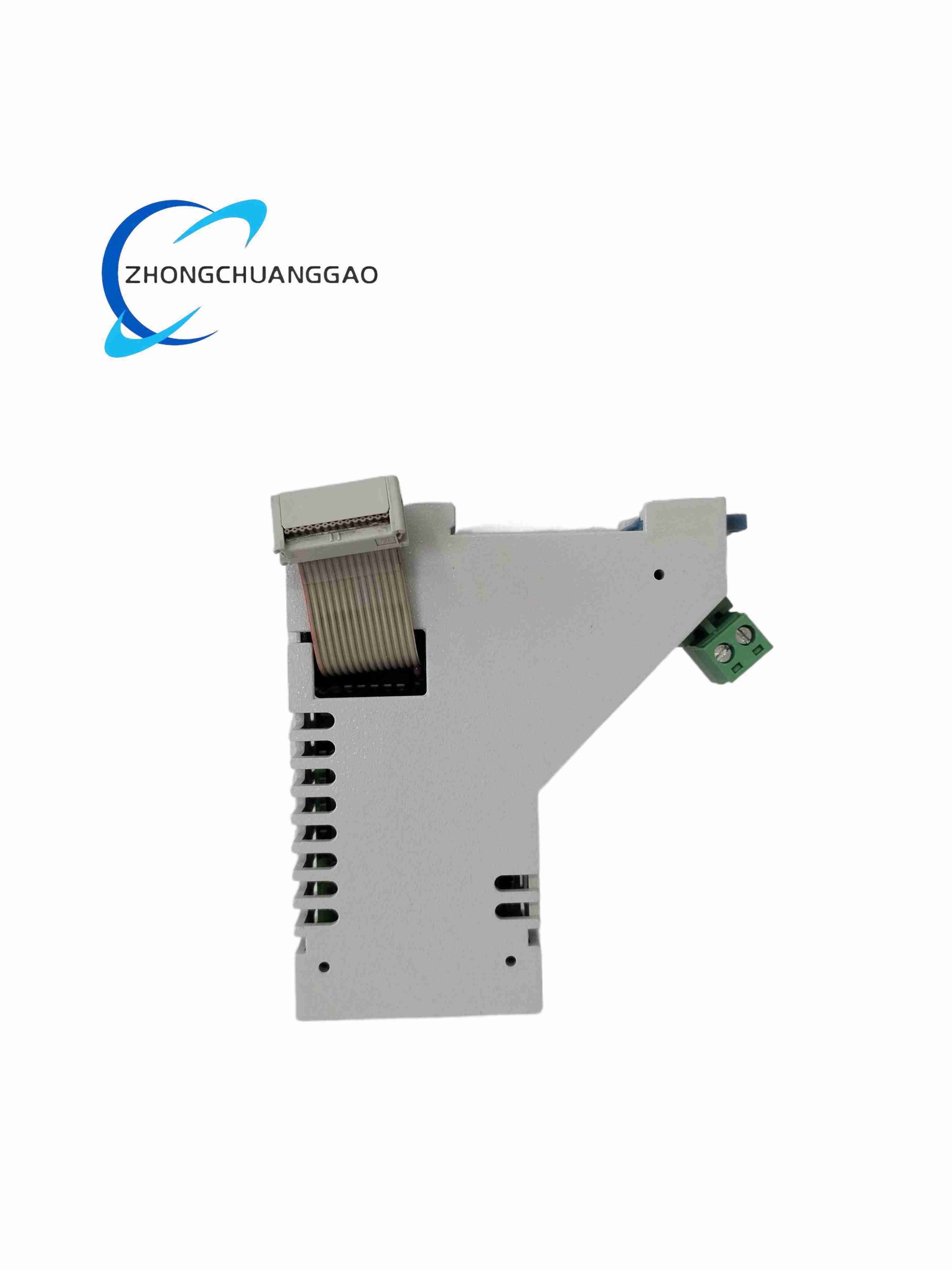

SIGMATEK DPS001

Product Name: SIGMATEK DPS001 — Compact Industrial Control / Mixed Signal I/O Module

Product Introduction: The SIGMATEK DPS001 is a compact automation module used within SIGMATEK DIAS-based control systems. It provides combined digital and analog I/O capabilities and communicates with the central controller via the internal DIAS bus. It is designed for machine-level control, signal conditioning, and small-footprint automation tasks.

Category: Others

Description

Technical Specifications & Performance Parameters:

Digital Inputs: 8 × 24 V DC (sink type, 3 mA typ.)
Digital Outputs: 4 × 24 V DC (transistor, 0.5 A max per channel, short-circuit protected)
Analog Inputs: 4 channels, configurable for 0–10 V or 0/4–20 mA, 12-bit resolution
Analog Outputs: 2 channels, 0–10 V or 4–20 mA, 12-bit resolution
Supply Voltage: 24 V DC (±10 %) for field I/O; logic power via DIAS bus
Communication Interfaces: DIAS backplane bus; optionally accessible via RS-485 or Ethernet when used with gateway base
Scan Time: Depends on DIAS master cycle; typical I/O update < 2 ms
Indicators: Per-channel LEDs + module status LEDs

Material & Structural Features:

Housing: Flame-retardant plastic (UL 94 V-0), RAL 7035
Mounting: On SIGMATEK DIAS base module → 35 mm DIN rail (EN 60715)
Terminals: Spring-cage terminals on base module
Dimensions (Module only): Approx. 45 mm (W) × 100 mm (H) × 75 mm (D)
Weight: Approx. 150 g

Operating Conditions & Installation Requirements:

Operating Temp.: -20 °C to +70 °C
Storage Temp.: -40 °C to +85 °C
Humidity: 5 % – 95 % RH, non-condensing
Protection: IP20 (control cabinet only)
Certifications: CE, UL, RoHS

Application Scenarios: Small to medium machine control, test rigs, localized I/O aggregation, retrofits where space is limited.

Notes / Precautions:

Analog inputs must be configured in software before use; incorrect wiring (voltage into current-input mode) may damage the input.
Total simultaneous digital output load must not exceed module thermal rating (check base module specification).
Use separate ferrite chokes or shielded cables for analog signals in noisy environments.
