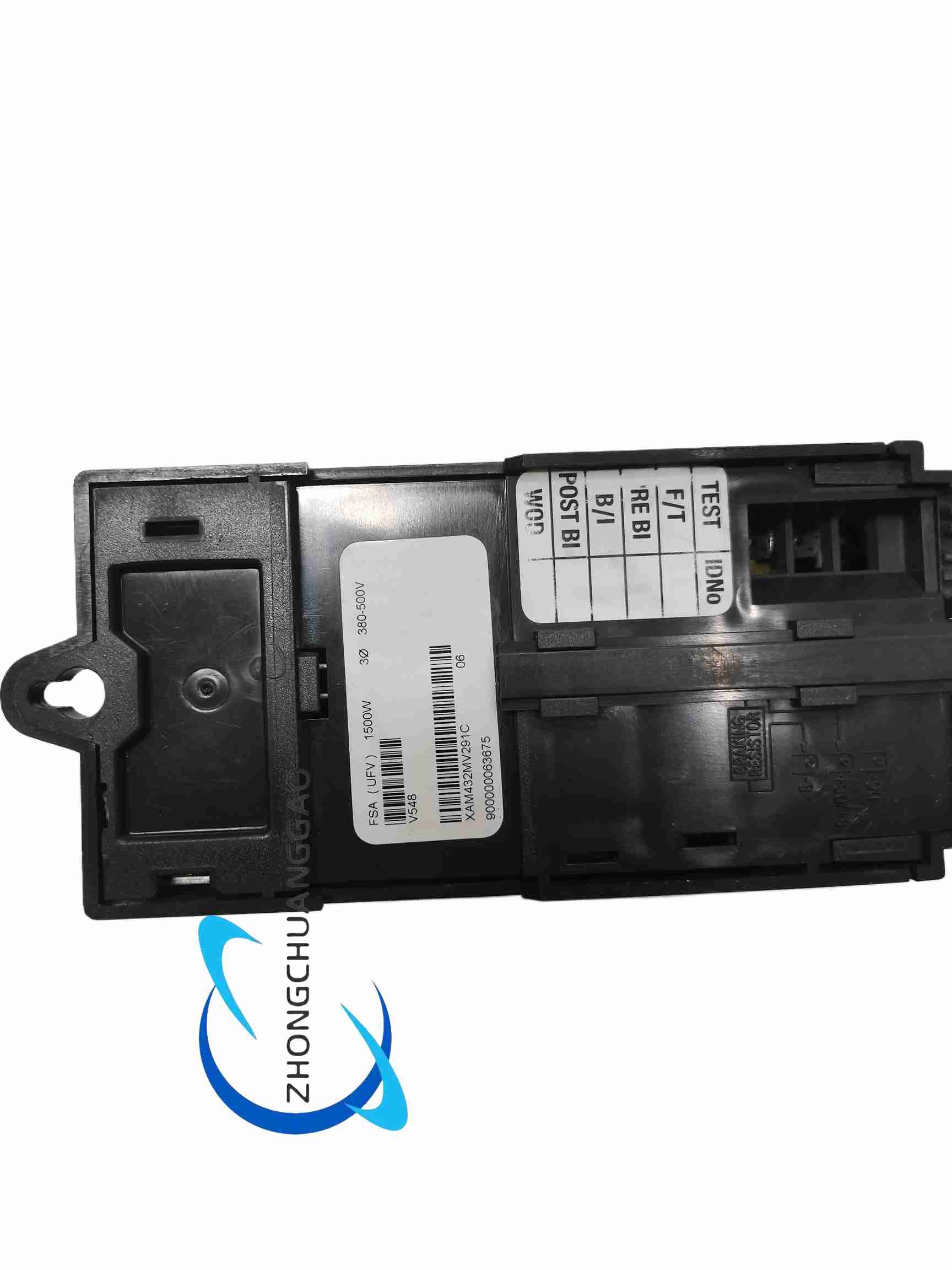

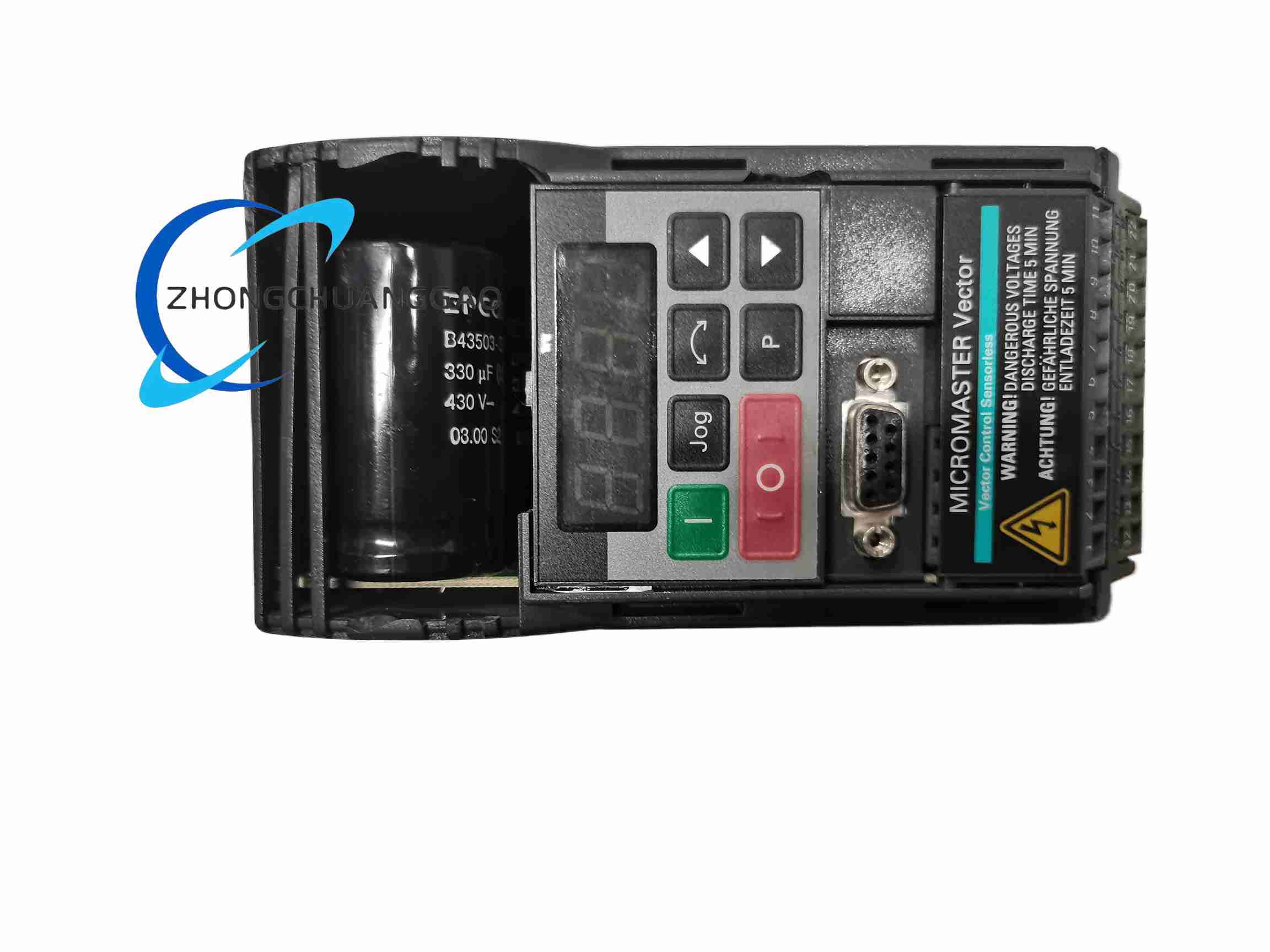

Siemens 6SE3214‑0DA40

Technical Specifications

• Input Power: 3‑phase AC input
• Rated Power: 2.2 kW
• Output Frequency Range: 0 Hz ~ 650 Hz
• Control Mode: V/F voltage‑frequency ratio control for asynchronous motor
• Protection Class: IP20
• Installation Method: 35 mm DIN‑rail mounting or cabinet‑wall mounting
• Operating Temperature: 0 °C ~ +50 °C (derate power above 40 °C)

Functional Features

• Parameter‑configurable V/F curve for driving general‑purpose asynchronous motors
• Built‑in motor‑overload, over‑voltage, under‑voltage, over‑current and short‑circuit protection functions
• Digital‑input terminal for external start‑stop command; analog‑input terminal for speed‑setpoint signal
• Basic fault‑diagnosis function with fault‑code display for failure‑situation troubleshooting
• Compact book‑style housing, suitable for installation inside small‑volume control cabinets

Application Scenarios

• Speed‑regulation of fans, pumps, conveyor belts in traditional industrial equipment
• Retrofit of old‑generation production‑line equipment for variable‑speed motor‑driving
• General‑purpose variable‑speed drive for textile, packaging and material‑handling machinery

Performance Parameters

• Carrier‑frequency parameter adjustable for noise‑optimization of motor operation
• Built‑in DC‑braking function for motor‑rapid‑stop requirement
• Thermal‑overload protection curve matches asynchronous‑motor thermal‑characteristic

Material Composition

• Housing: Industrial‑grade flame‑retardant plastic enclosure
• Internal circuit: Power‑electronic IGBT inverter power‑stage, control‑unit PCB, terminal‑block assembly

Structural Characteristics

• Vertical book‑shape compact housing, terminal blocks on top and bottom for power‑and‑signal‑wiring
• LED status indicator for operation and fault‑state display
• DIN‑rail clip‑mount structure on housing back‑side

Working Principle

• Rectifier unit converts input AC power into DC bus voltage; IGBT inverter unit converts DC‑bus into adjustable‑frequency adjustable‑amplitude three‑phase AC output for asynchronous‑motor driving
• Control‑unit executes V/F algorithm according to set‑point signal to adjust output voltage‑frequency characteristic, realizes motor‑speed regulation
• Hardware‑protection circuit monitors voltage, current and temperature signals, triggers output shutdown upon fault‑condition detection

Installation Requirements

• Mount inside IP20‑rated control cabinet, vertical installation orientation
• Reserve sufficient upper‑and‑lower ventilation clearance for heat dissipation
• Use shielded motor‑cable for motor‑wiring; separate power‑cable and signal‑cable routing
• Complete reliable protective‑earthing connection
