SCHROFF MPS02213100-203

Product Name

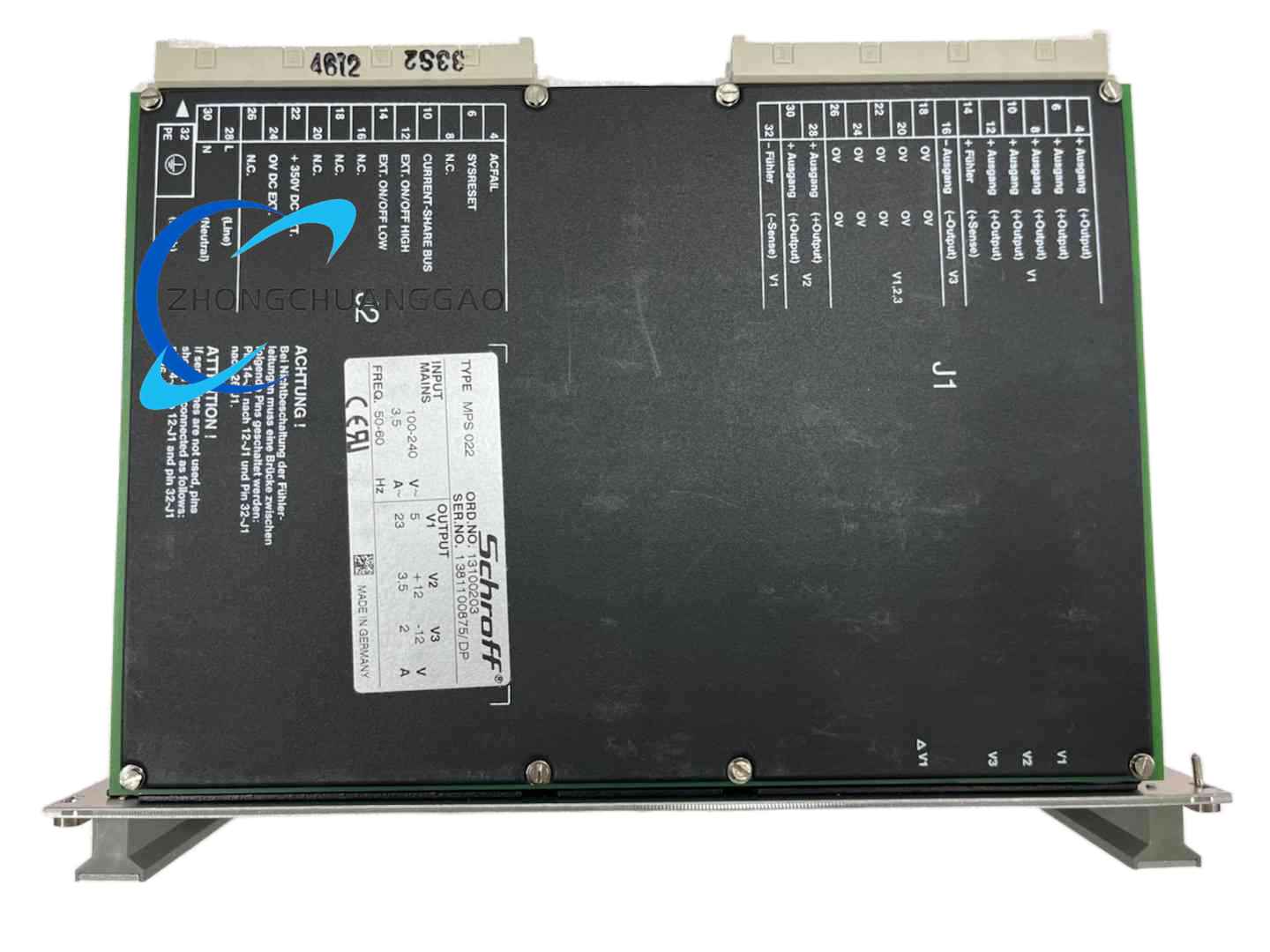

nVent SCHROFF MPS022 13100-203 VMEbus 6U AC/DC switched-mode power supply module
Product Introduction
This module is a Eurocard VMEbus power source designed for industrial computers, defense electronics, telecommunications and embedded controllers. It converts wide-range AC or DC input into regulated VME logic voltages and supports bus signaling, power-good reporting and redundant operation with other MPS022 units.
Category:
Description
Technical Specifications
Parameter​
Value​
Form factor​
6U height, 12HP width VME eurocard
Total power​
Approximately 224 W
AC input​
90–264 VAC, 47–63 Hz
DC input​
130–350 VDC
+5 V output​
25–28 A depending on configuration
+12 V / +15 V output​
+12 V approximately 6–7 A, +15 V approximately 5.6 A
-12 V / -15 V output​
-12 V approximately 2–3 A, -15 V approximately 2.4 A
Power factor correction​
Active PFC
Backplane connector​
H15 / DIN 41612 VME-compatible
Bus signals​
SYSRESET, ACFAIL, Power OK / system fail support
Ripple and noise​
Typically below 10 mVpp on main rails
Efficiency​
Generally above 85 percent
Protection​
Overload, overvoltage, overtemperature, short-circuit
Redundancy​
Decoupling diodes and parallel current sharing support
Functional Features
Multiple isolated VME voltage rails from one module. Active PFC reduces harmonic current. VME power-status signals allow the controller to manage reset and power-fail sequences. Decoupling diodes support N+1 redundant configurations. Front handle and eurocard mechanics support live service in compatible subracks.
Performance Parameters
Continuous 5 V delivery up to approximately 28 A for logic boards, with auxiliary ±12 V or ±15 V for analog, communication and interface circuits. Stable output under wide AC grid and DC battery conditions. Low ripple maintains signal integrity for sensitive processor and I/O cards.
Materials And Construction
Standard VME metal front panel with handle, printed-circuit power stages, high-frequency transformer, filter capacitors, PFC components and H15 backplane connector. Cooling follows convection and chassis airflow within the subrack.
Working Principle
AC input passes EMC filtering and active PFC, then is converted by a high-frequency switched-mode stage into isolated DC rails. Output regulators maintain 5 V, 12/15 V and negative rails. VME monitor circuitry generates ACFAIL, SYSRESET and power-ok signals for orderly system startup and shutdown.
Application Scenarios
VME and VME64x industrial computers, military and aerospace embedded systems, telecom control shelves, test and measurement chassis, power-generation control cabinets and legacy automation mainframes.
Installation Requirements
Insert into the designated 6U VME slot with H15 backplane mating. Confirm output voltage configuration before installation. Use the correct handle and guide rails. Connect AC or DC input only after verifying subrack grounding. For redundancy, install multiple MPS022 units with compatible decoupling hardware.
Usage Notes
Verify 5 V current requirement against total board load before commissioning. Maintain subrack ventilation limits. Replace only with the same 13100-203 configuration or approved MPS022 variant. Inspect Power OK and ACFAIL indicators during preventive maintenance. Observe electrostatic and high-voltage safety rules during service.
