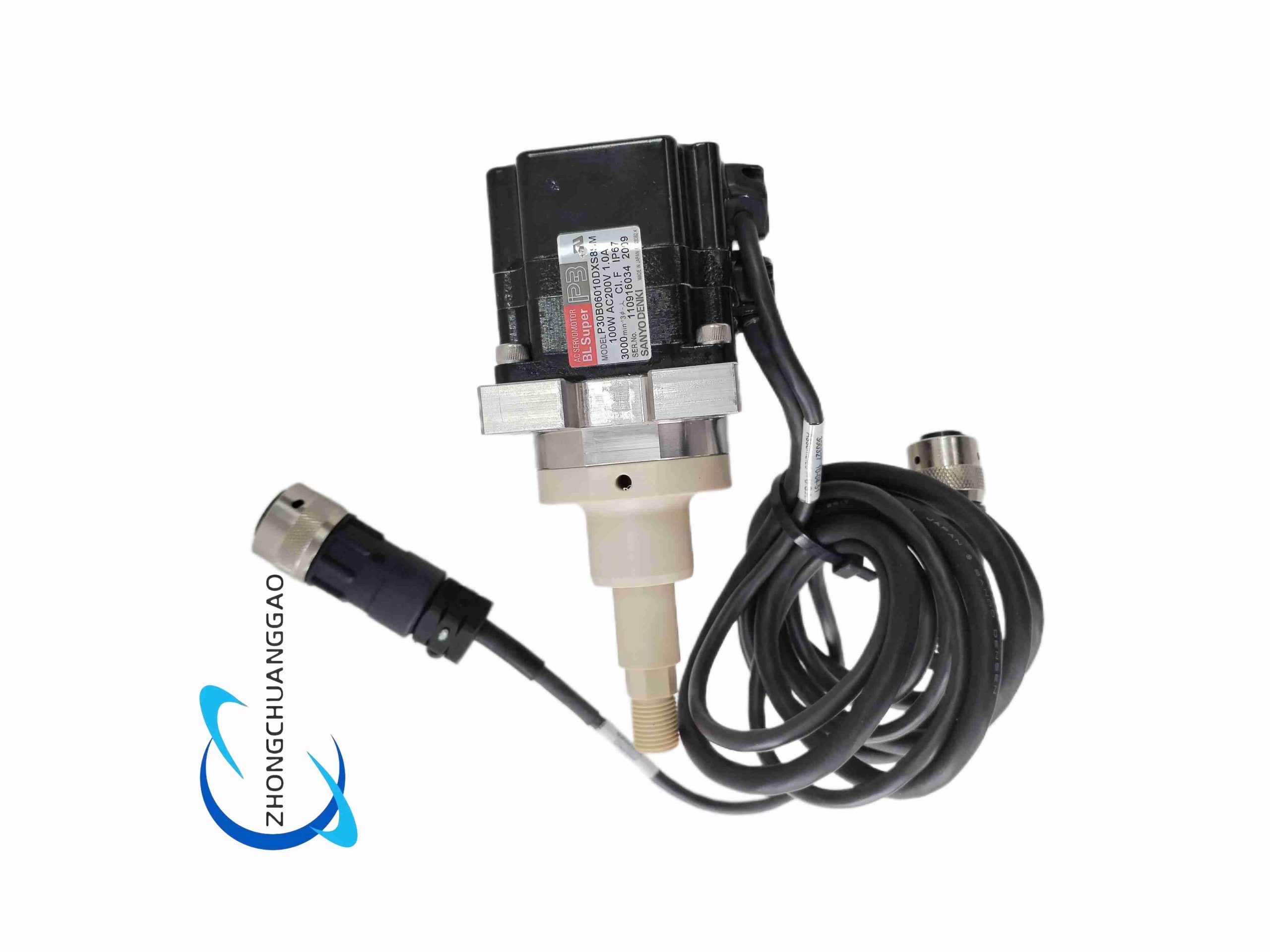

Sanyo Denki P30B06010DXS8SM

Product Name:​ SANMOTION BL Super P3 AC Servo Motor, 60 mm Frame
Product Introduction:​ Mid-range 100 W (some listings 600 W on mislabeled resale pages—OEM P30B06010DXS8SM is 100 W class 200 V) brushless servo for XY stages, packaging and inspection rigs.
Category:
Description
Technical Specifications:
  • Frame:​ 60 mm flange (NEMA 24)
  • Rated power:​ 100 W (200 V AC)
  • Rated speed:​ 3000 rpm
  • Rated current:​ ~1.0–1.1 A
  • Torque:​ ~0.32 N·m rated
  • Encoder:​ Incremental high-resolution (variant-dependent)
  • Shaft:​ 8 mm keyed
  • Insulation:​ F class
  • Protection:​ IP40 standard (IP65 on sealed option)
  • Weight:​ ~1.8–2.2 kg depending on brake/encoder
    Functional Features:​ High torque density, low vibration, 3× overload capability in short burst, direct flange swap with Panasonic/Yaskawa 100 W class.
    Working Principle:​ Same PMSM vector principle as P30B04010; larger rotor inertia matched to 60 mm thermal envelope.
    Installation:​ Align coupling with laser or feeler gauge; torque bolts to 2.5 N·m; route motor/encoder separately.
    Usage Notes:​ Brake (if fitted) requires 24 V DC external supply with freewheel diode; store with shaft protected from rust; do not paint over nameplate QR.
