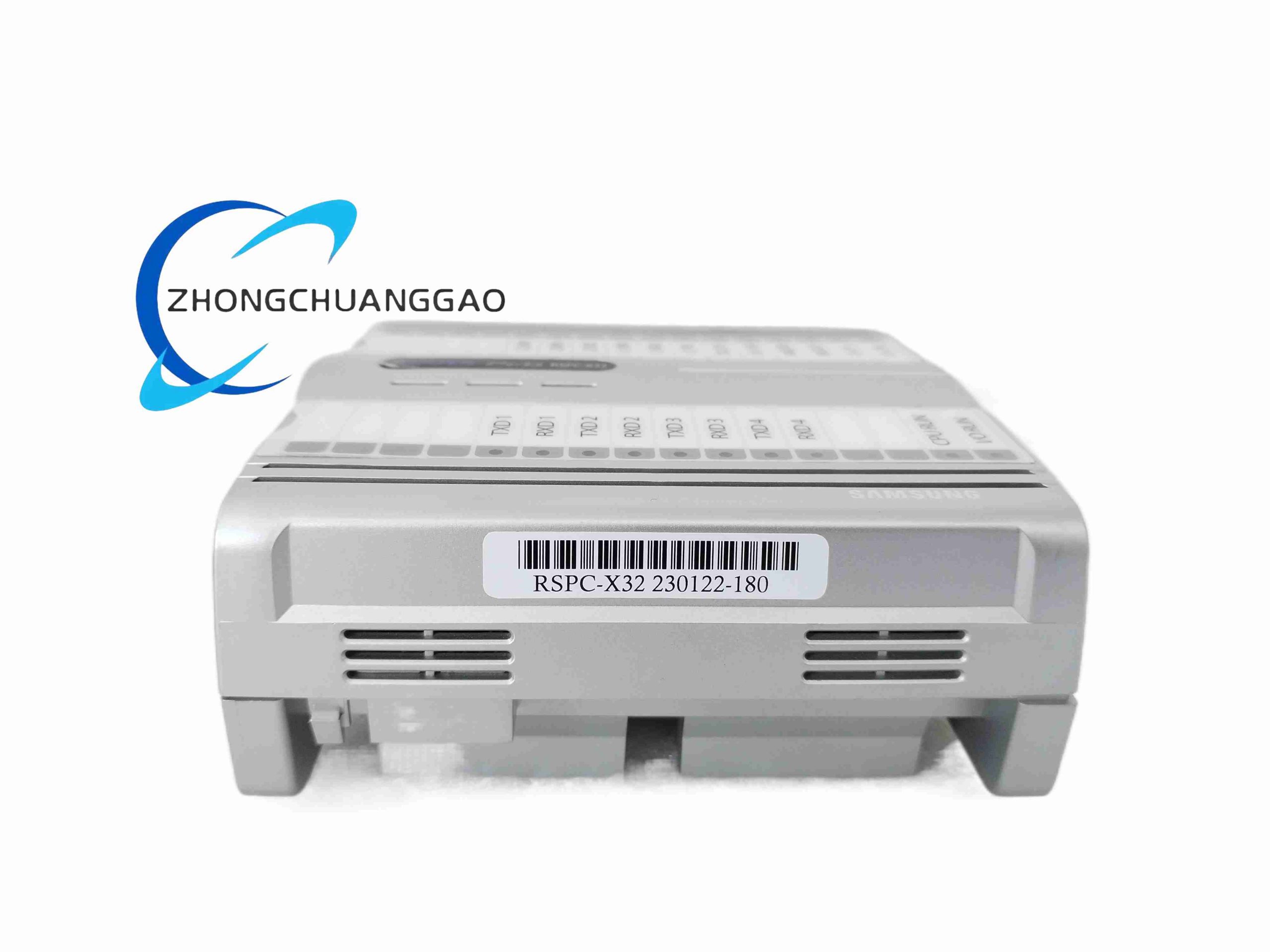

SAMSUNG RSPC-X32 - Image 1
SAMSUNG RSPC-X32 - Image 2
Click to enlarge
SAMSUNG RSPC-X32
SAMSUNG RSPC-X32 - Image 2
Emerson SE4001S2T2B1
Emerson SE4001S2T2B1
Back to products
ABB RVVP-TPE SBSE018741R15
ABB RVVP-TPE SBSE018741R15

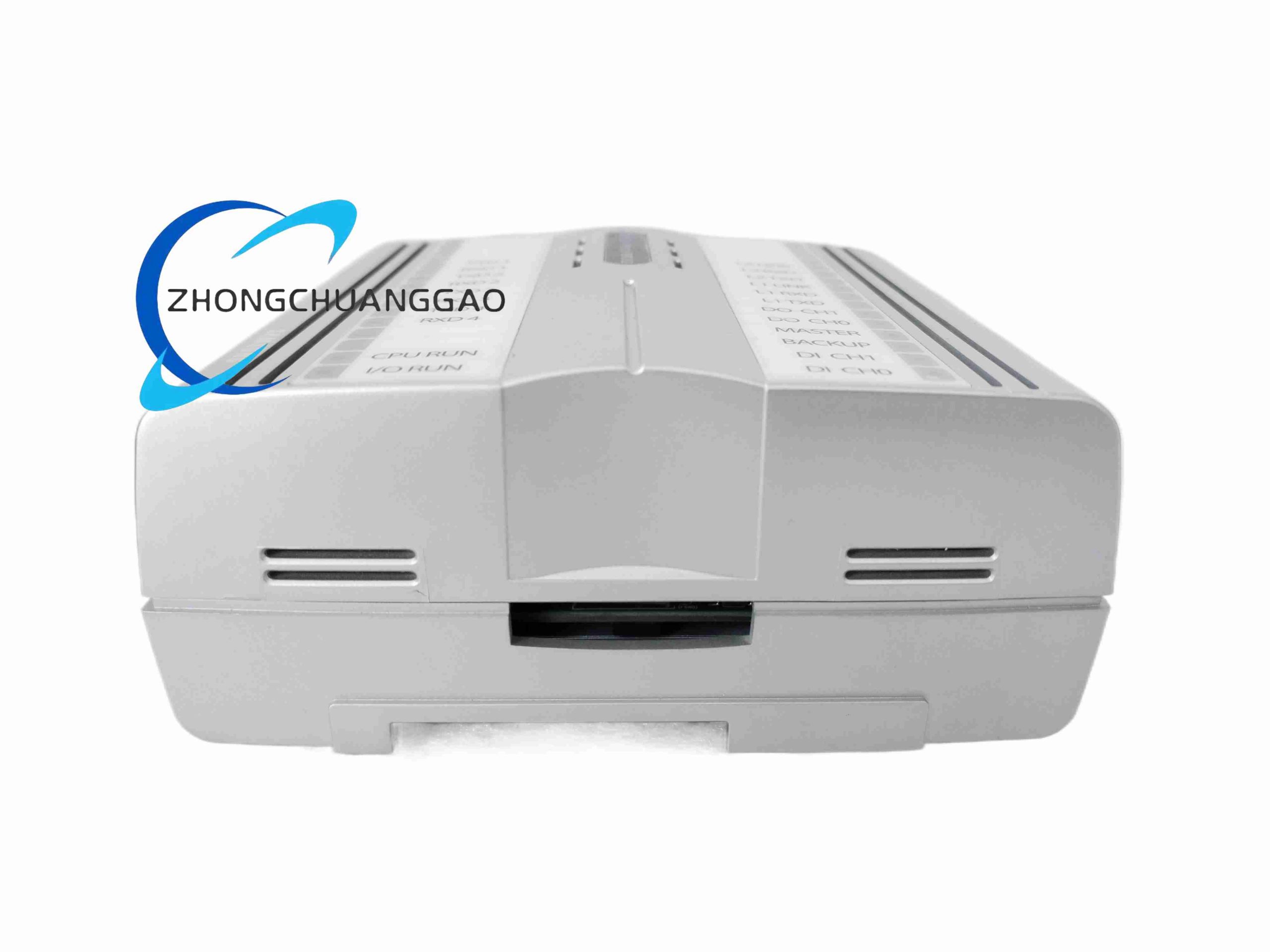

SAMSUNG RSPC-X32

Product Introduction:​
The RSPC-X32 is a high-density remote I/O and signal processing module within Samsung’s SSAS-PRO (Ship/Shore Automation Safety System – PRO) series. It is designed for marine engine room monitoring, alarm systems, and industrial process supervision. The unit acquires analog and digital field signals, processes them locally, and transmits data to the main processing unit via serial bus or Ethernet.
Category:
Description
Technical Specifications:
  • Model:​ RSPC-X32 (SSAS-PRO Series)
  • Input Channels:​ 32 configurable universal inputs (AI 4–20 mA, RTD Pt100, Thermocouple, DI dry contact)
  • Power Supply:​ 24 V DC (±10%), typical consumption ~15 W
  • Communication:​ RS-485 / CAN-Bus / Ethernet (system-dependent); optically isolated serial ports (RS-422/485)
  • Microprocessor:​ MPC860 32-bit RISC processor
  • Isolation Voltage:​ 1500 V AC (channel-to-bus)
  • Operating Temperature:​ -20 °C to +70 °C
  • Storage Temperature:​ -30 °C to +85 °C
  • Mounting:​ 35 mm DIN rail or sub-rack mounting
  • Certifications:​ ABS, DNV, LR, KR Marine Type Approval; CE
  • Indicators:​ LED per channel + system status LEDs (RUN / ERR / COM)
Key Features:
  • High-density 32-channel compact design reduces panel space
  • Supports redundant dual-bus communication for fault tolerance
  • Built-in self-diagnostics detect open sensor lines and internal faults
  • Hot-swappable in redundant configurations (with proper backplane)
  • Marine-grade EMI immunity and vibration resistance
Applications:
  • Marine engine room alarm monitoring (exhaust temp, lube oil pressure)
  • LNG carrier cargo tank pressure & BOG monitoring
  • Power plant auxiliary equipment alarm management
  • Ballast water treatment system valve & pump monitoring
Installation Notes:
  • Mount on grounded 35 mm DIN rail; allow ≥20 mm clearance between modules
  • Use shielded twisted-pair cable for analog signals; ground shield at one end
  • Do not power up before verifying wiring polarity
  • Firmware updates only via authorized SSAS-PRO configuration software
