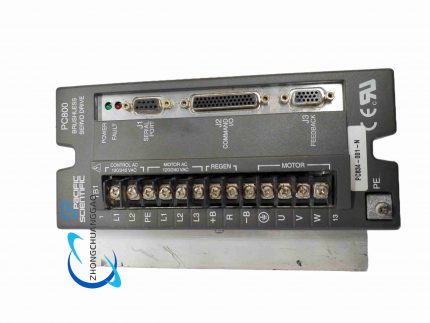

PACIFIC SCIENTIFIC PC834-001-N
PACIFIC SCIENTIFIC PC834-001-N
Back to products
SAIA PCD3.A465
SAIA PCD3.A465

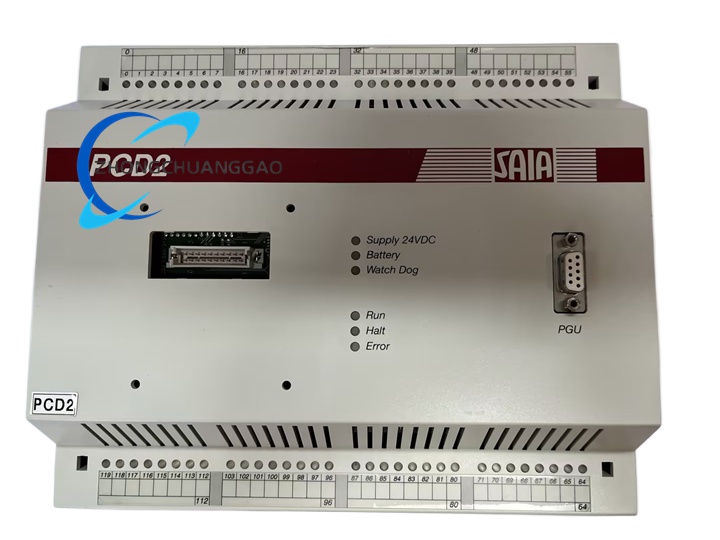

SAIA PCD2.M110

Product Introduction:​ The PCD2.M110 is a modular mid-range PLC processor from the Saia PCD2 family (Saia-Burgess Controls, later under Honeywell). It targets machine control, building automation sub-systems and small process skids where onboard mixed I/O plus fieldbus expansion is required.

Category:
Description
Technical Specifications:
  • Processor:​ Motorola 68000-class 32-bit CPU, 25 MHz
  • Memory:​ 512 KB user program RAM, 128 KB data/text RAM, EPROM option for program backup
  • Onboard I/O:​ 16 × 24 V DC digital inputs (sink/source, ~8 ms filter), 16 × transistor digital outputs (5–32 V DC, 0.5 A per point), 4 × analog inputs, 2 × analog outputs
  • Power Supply:​ 24 V DC (±10 %), typical consumption ≤ 10 W
  • Communication:​ RS-232, RS-485 (115.2 kbit/s), 3 communication module slots (A1/A2/C) for Profi-S-Net, MPI, Modbus RTU, CANopen (option)
  • Programming:​ PG5 Suite, IEC 61131-3 (LD, ST, FBD, IL, SFC)
  • I/O Expansion:​ Up to 1024 I/O points via PCD2.Cxx0 / PCD3.Cxx0 holders and cassette I/O
  • Environment:​ 0…+55 °C operating, -40…+85 °C storage, IP20, DIN rail TH35 mount
  • Dimensions / Weight:​ approx. 180 × 130 × 60 mm, ~0.8 kg
    Functional Features:​ Integrated mixed-signal I/O removes need for separate I/O cards in small cabinets; multitasking firmware; online program change; watchdog relay output; non-volatile program backup via EPROM or flash card.
    Application Scenarios:​ Packaging machines, pump control panels, HVAC sub-controllers, water treatment skids, retrofit of legacy Saia installations.
    Installation Notes:​ Mount on 35 mm DIN rail inside IP54+ cabinet; separate 24 V DC supply from power contacts; ground shield of RS-485 to cabinet earth only at one end.
    Usage Precautions:​ Do not exceed 0.5 A per output channel; EPROM version requires UV erase before rewrite; keep firmware backup before PG5 download.
