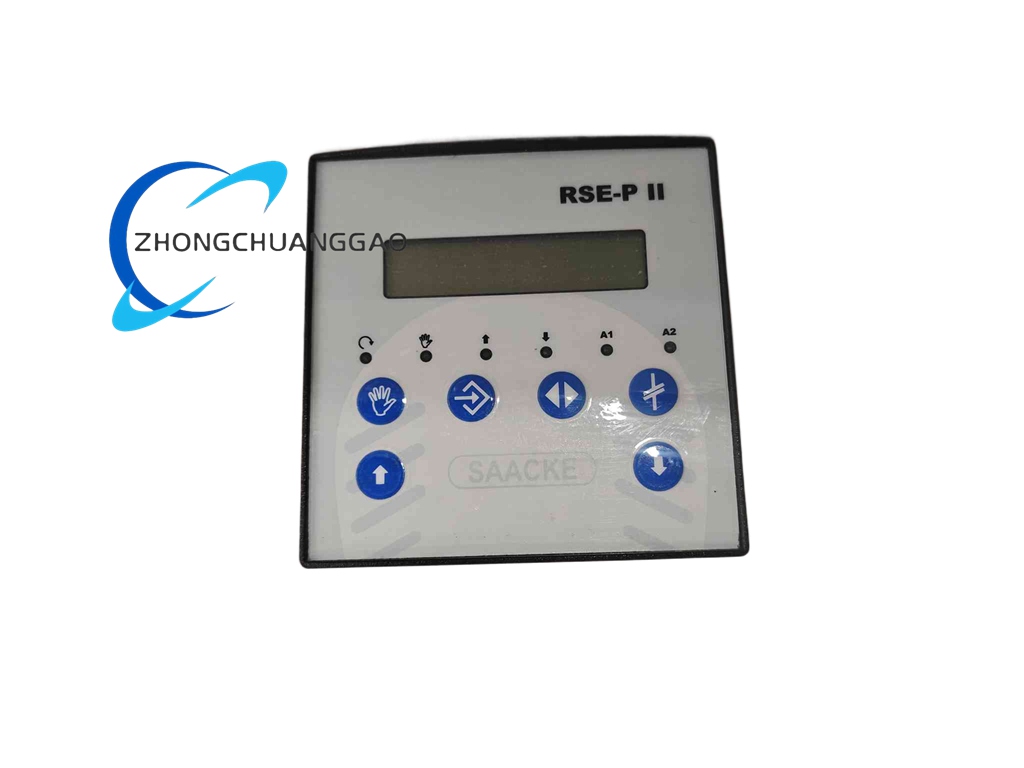

SAACKE RSE-PII

Product Name:​ RSE-P II Burner Management System and Combustion Controller
Product Introduction:​ Microprocessor-based burner safety and modulating load controller from SAACKE, Germany, for industrial boilers, thermal oil heaters, marine combustion and dual-fuel burners.
Category:
Description
Technical Specifications:
  • Supply: 85–264 V AC 50/60 Hz or 24 V DC redundant
  • Power Consumption: max 25 W
  • Digital I/O: 16 isolated DI, 16 relay DO (expandable to 64)
  • Analog Inputs: 2 universal ports (4–20 mA, 0–10 V, Pt100, potentiometer)
  • Flame Interfaces: Dual UV channels + 1 IR, triple-redundant evaluation
  • Safety Response: Flame loss cutoff ≤500 ms, scan cycle ≤100 ms
  • Communication: Profibus DP, Modbus TCP/IP, RS485 service port
  • Standards: EN 298, EN 746-2, NFPA 86, IEC 61508SIL2/SIL3 depending on config
  • Temperature Range: -30 to +70 °C
  • Enclosure: 19-inch 3U rack, IP30 internal, 483 × 133 × 210 mm, 3.9 kg
    Functional Features:​ Pre-purge timing, ignition delay, flame stabilization confirmation, fuel-air ratio PID with FlameIQ FFT analysis, hardwired emergency stop independent of CPU, 8 MB event log (50k entries), LCD local HMI.
    Application Scenarios:​ Marine main boilers on LNG carriers, refinery crude heaters ESD, HRSG duct burners, waste incineration kilns, chemical ethylene cracker furnaces.
    Working Principle:​ Dual-processor 2oo3 voting on flame and pressure trips; analog inputs scaled to fuel valve / air damper actuators; purge interlock released only after fan proof and pressure checks passed.
    Installation Requirements:​ DIN rail or 19-inch rack in ventilated cabinet, shielded analog runs separated from ignition HV cables, ground separately for logic and power, configure DIP switches for input type before power-up.
    Usage Precautions:​ Never bypass flame scanner during commissioning; recalibrate air/fuel curve with flue gas analyzer; UV tube life must be trended via diagnostics.
