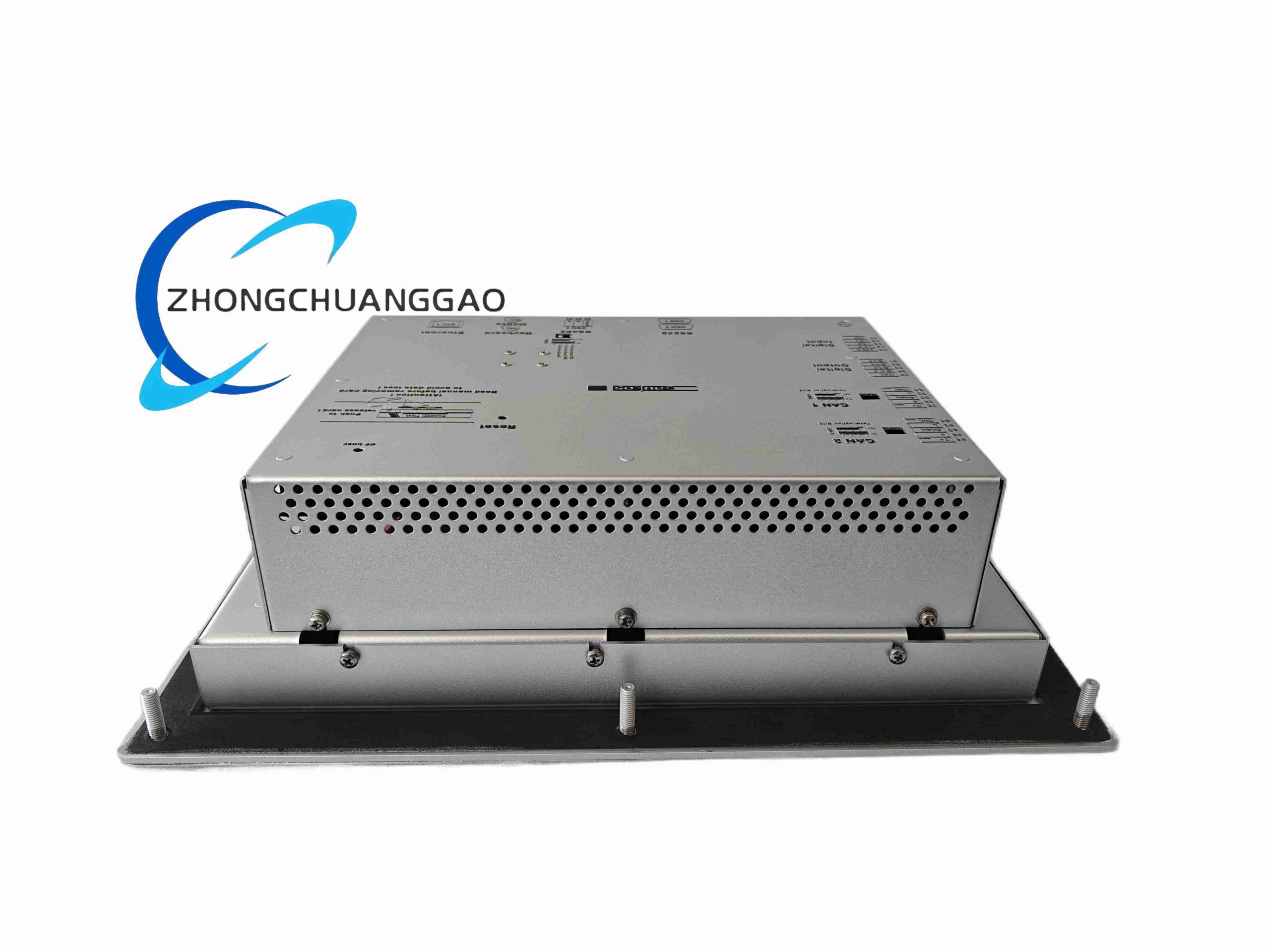

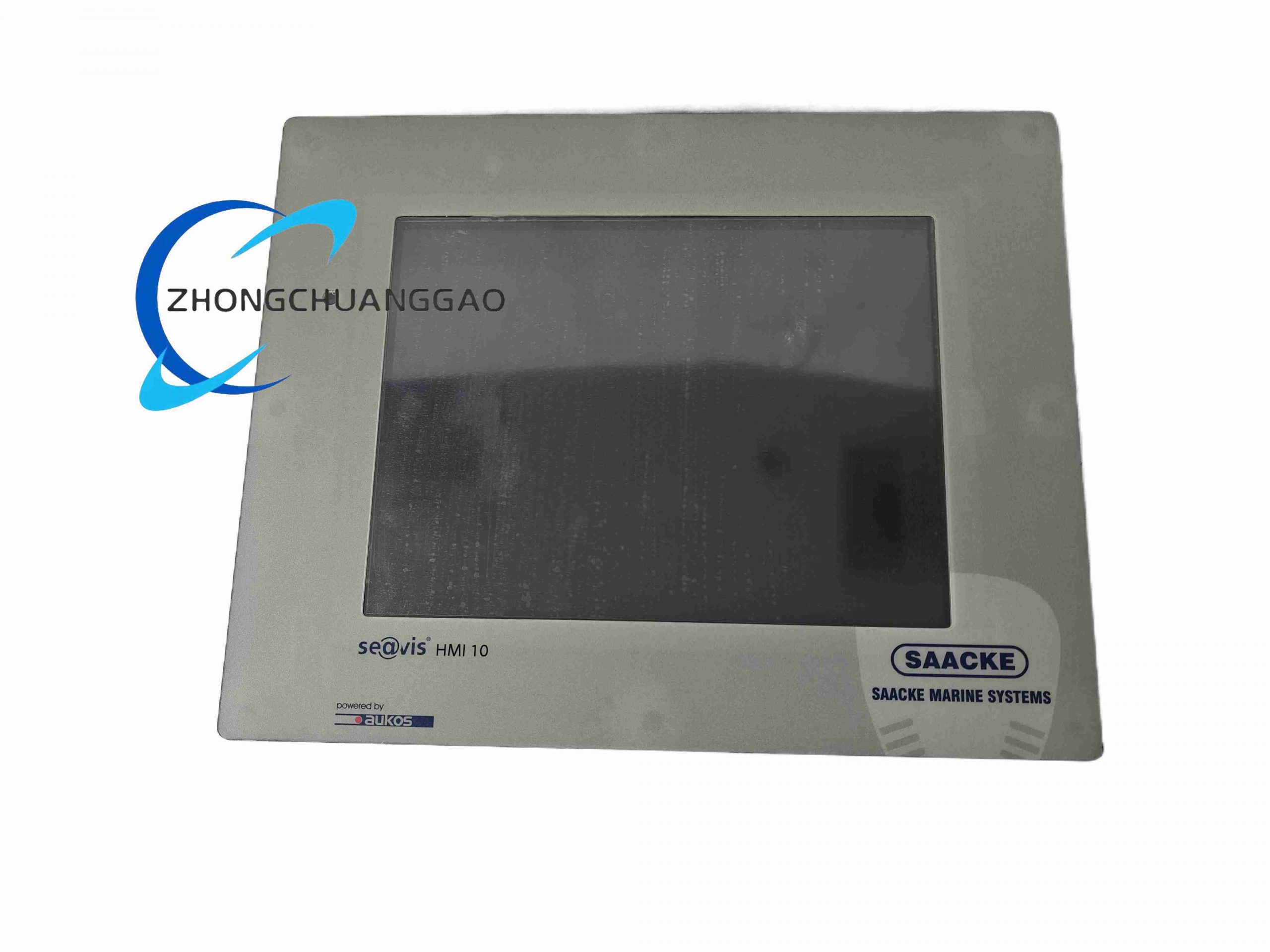

SAACKE HMI10-M REV203

Manufacturer:​ SAACKE GmbH (Germany)
Product Brief:​ Rugged, application-specific HMI terminal integrated with SAACKE combustion management controllers (BMC / SBC series). Provides graphical visualization, parameter setting, alarm annunciation, and trend recording for marine and industrial boiler plants. REV203 indicates third hardware/firmware revision with enhanced connectivity and cybersecurity features.
Category:
Description
Key Technical Specifications:
  • Display:​ 10.4″ TFT Color LCD, resistive touchscreen
  • Resolution:​ 640 × 480 (VGA)
  • Backlight Life:​ ≥ 50,000 hours
  • Processor:​ Embedded industrial CPU (ARM Cortex-class or equivalent)
  • Memory:​ ≥ 128 MB Flash / SDRAM; SD card slot for data logging / firmware update
  • Communication Ports:
    • RS-485 (Modbus RTU) to SAACKE burner controller
    • CANopen (optional)
    • Ethernet 10/100Base-T (TCP/IP for remote service / integration)
    • USB for service / backup
  • Software:​ Proprietary SAACKE HMI runtime (embedded Linux / RTOS); pre-loaded boiler/burner screens
  • Protection Rating:​ Front panel IP65; rear IP20 (install in enclosed cabinet/console)
  • Operating Temperature:​ -10 °C to +55 °C
  • Power Supply:​ 24 V DC (typical, ±10 %)
  • Panel Cutout:​ Approx. 270 × 210 mm (verify with SAACKE mechanical drawing)
  • Class Approvals:​ DNV GL, ABS, LR, BV, CCS; EMC per IEC 60945(marine electronics)
Functional Features:
  • Boiler start / stop, flame supervision, steam pressure setpoint adjustment
  • Real-time bar-graphs and mimic diagrams (flame status, O₂, exhaust temp, drum level)
  • Alarm list with time stamp; event log > 10,000 entries
  • Three consecutive ignition failure → forced purge lockout per SOLAS/IMO rules
  • Remote diagnostic capability via Ethernet (SAACKE Remote Service)
Application Scenarios:​ Auxiliary / exhaust gas boilers on merchant vessels, LNG carriers, offshore platforms; industrial packaged boilers with SAACKE burners.
Installation & Notes:
  • Use supplied gasket to maintain IP65 front seal; do not overtighten mounting clamps.
  • Connect only to SAACKE-approved controller; incorrect baud rate will prevent communication.
  • Configure operator access levels (operator vs. engineer password) to prevent unauthorized parameter changes.
