Reliance Electric 45C992

Technical Specifications

• Series: Shark XL Controller I/O‑module
• Number of Input Channels: 8‑single‑ended‑analog‑input‑channels
• Input‑Signal‑Range: 0‑10 V DC‑voltage‑input
• Resolution: 8‑bit A/D‑conversion
• Input‑Impedance: 100 kΩ‑per‑channel
• Single‑channel‑conversion‑time: 1 ms
• Backplane‑bus: Shark XL‑proprietary‑controller‑backplane‑interface
• Operating‑temperature: 0 °C ~ +50 °C
• Mounting: Plug‑in‑slot‑installation‑inside‑Shark XL‑controller‑chassis
• Status‑indication: Channel‑related‑diagnostic‑LED‑indicators
• Weight: Approximately 0.35 kg
• Functional Features
• 8‑channel‑0‑10 V‑DC‑analog‑voltage‑signal‑acquisition‑for‑field‑transmitters‑and‑sensors
• 8‑bit‑A/D‑conversion‑provides‑stable‑digital‑value‑transmission‑to‑controller‑backplane
• Each‑channel‑supports‑continuous‑sampling‑for‑real‑time‑process‑variable‑monitoring
• Module‑level‑diagnostic‑LED‑indicators‑for‑quick‑fault‑location
• Hot‑plug‑unavailable;‑plug‑in‑slot‑structure‑for‑fast‑module‑replacement‑during‑system‑shutdown
• Compact‑form‑factor‑to‑reduce‑chassis‑space‑occupation
• Application Scenarios: Legacy‑industrial‑automation‑system‑retrofit‑and‑spare‑parts‑maintenance,‑analog‑sensor‑signal‑collection‑for‑temperature‑pressure‑level‑transmitters‑outputting‑0‑10 V‑signals,‑material‑‑processing‑equipment‑control‑systems‑based‑on‑Shark XL‑controller‑platform
• Performance Parameters: Millisecond‑level‑single‑channel‑conversion‑speed;‑stable‑signal‑sampling‑for‑slow‑changing‑process‑variables;‑backplane‑high‑speed‑data‑transmission‑to‑controller‑CPU;‑good‑noise‑immunity‑for‑industrial‑field‑voltage‑signal‑collection.

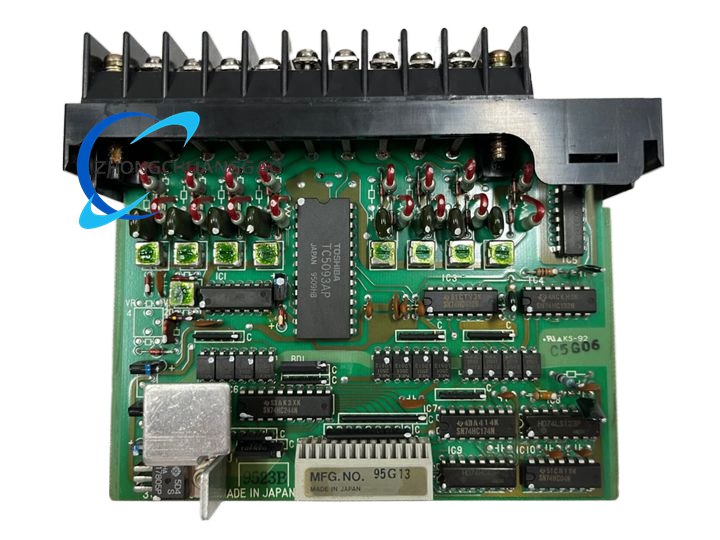

• Material Composition: Green‑printed‑circuit‑board‑with‑A/D‑conversion‑chips‑and‑analog‑signal‑conditioning‑circuit‑components;‑plastic‑module‑housing‑with‑front‑terminal‑block‑assembly;‑gold‑plated‑backplane‑edge‑connector‑for‑chassis‑bus‑connection.
• Structural Characteristics: Standard‑Shark XL‑plug‑in‑module‑structure;‑front‑side‑screw‑terminal‑block‑for‑field‑sensor‑wiring;‑rear‑side‑gold‑plated‑edge‑connector‑inserted‑into‑controller‑chassis‑backplane‑slot;‑plastic‑housing‑encloses‑circuit‑board‑assembly.
• Working Principle: Field‑0‑10 V‑DC‑analog‑voltage‑signal‑is‑input‑via‑front‑terminal‑block‑to‑on‑board‑analog‑signal‑conditioning‑circuit;‑conditioned‑analog‑signal‑is‑sent‑to‑8‑bit‑A/D‑converter‑to‑generate‑digital‑value;‑digital‑data‑is‑transmitted‑to‑controller‑CPU‑through‑chassis‑proprietary‑backplane‑bus‑for‑logic‑processing‑and‑data‑storage. Installation Requirements: Insert‑module‑into‑corresponding‑slot‑of‑Shark XL‑controller‑chassis‑under‑power‑off‑state;‑tighten‑front‑panel‑fixing‑screws;‑field‑sensor‑wiring‑connected‑to‑front‑screw‑terminals‑according‑to‑signal‑wiring‑diagram;‑separate‑analog‑signal‑cables‑from‑high‑power‑power‑cables‑to‑reduce‑interference.
