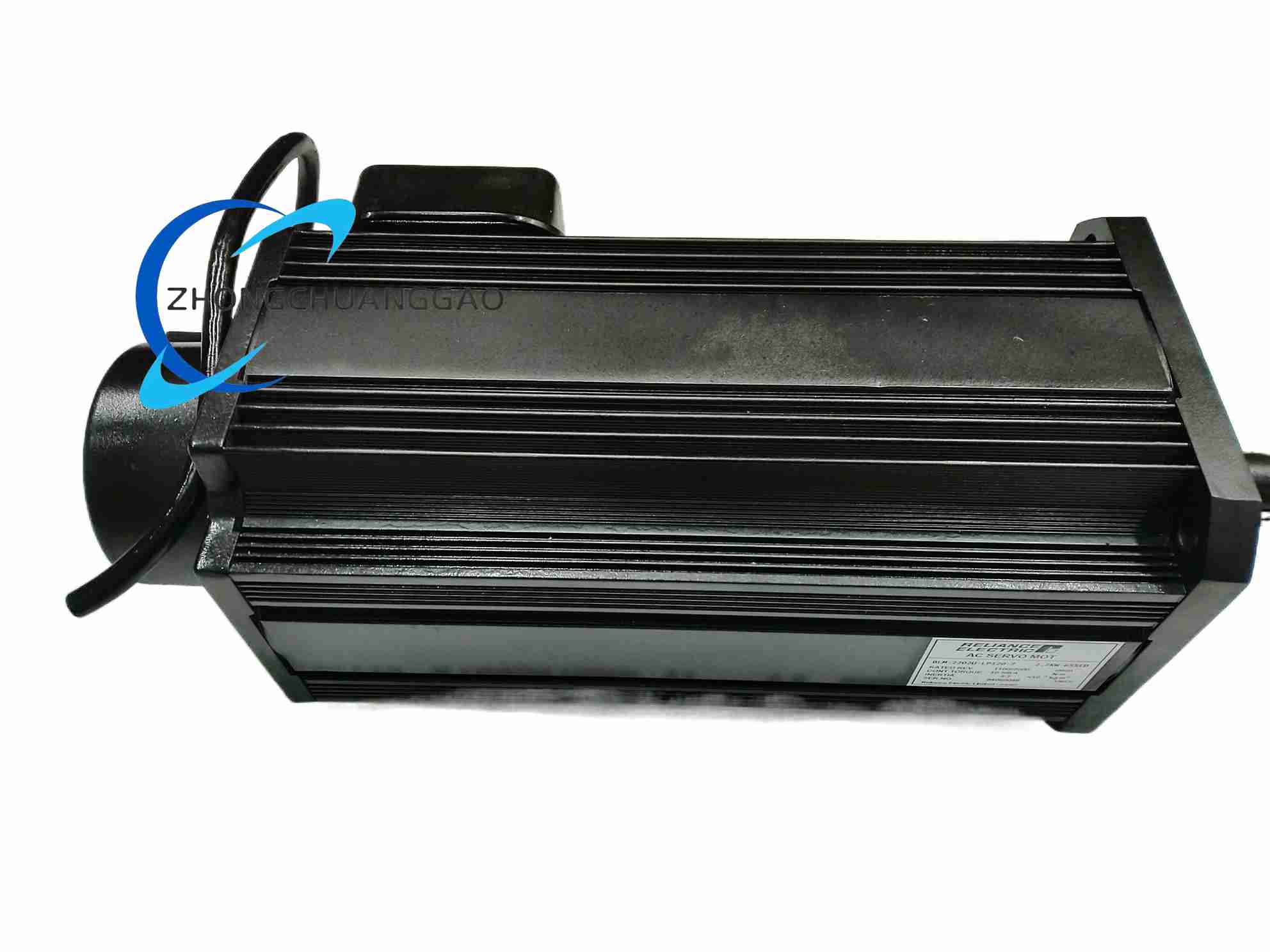

RELIANCE BLM-2202U-LP120-7

Technical Specifications

Permanent magnet brushless DC servo motor; insulation class F per UL 1004-1; integrated thermistor for winding over-temperature protection; integrated encoder feedback (LP120 specification); natural air cooling; protection class IP65 (excluding shaft end).

Functional Features

High torque density in compact package; low cogging torque for smooth operation; built-in temperature sensor protection; wide speed range; high reliability and long service life.

Application Scenarios

Automated conveyor lines, packaging machinery, material handling equipment, textile machinery, industrial robots.

Performance Parameters

Maximum rated speed 3000 rpm; maximum winding temperature 155 °C; operating ambient temperature +5 °C to +40 °C at rated conditions; rated operation up to 1000 m altitude, derating required for higher altitudes.

Material Composition

Aluminum alloy housing, high-grade permanent magnet rotor, silicon steel stator core, enameled copper winding, stainless steel output shaft.

Structural Features

Round flange mounting configuration; encoder assembly integrated at rear end; separate power and feedback connectors; heat dissipation ribs on the motor body.

Working Principle

Three-phase AC current from the servo drive generates a rotating magnetic field in the stator windings, driving the permanent magnet rotor to rotate synchronously. The encoder feeds back rotor position and speed in real time to achieve closed-loop servo control.

Installation Requirements

Ensure coaxial alignment during flange mounting; avoid excessive radial and axial load on the shaft; use shielded power and feedback cables with single-end shield grounding; connect motor ground terminal reliably.

Usage Notes

Do not impact the shaft end or encoder section; do not operate beyond rated speed and torque; keep the motor clean and free of oil dust and debris; check connector tightness periodically.
