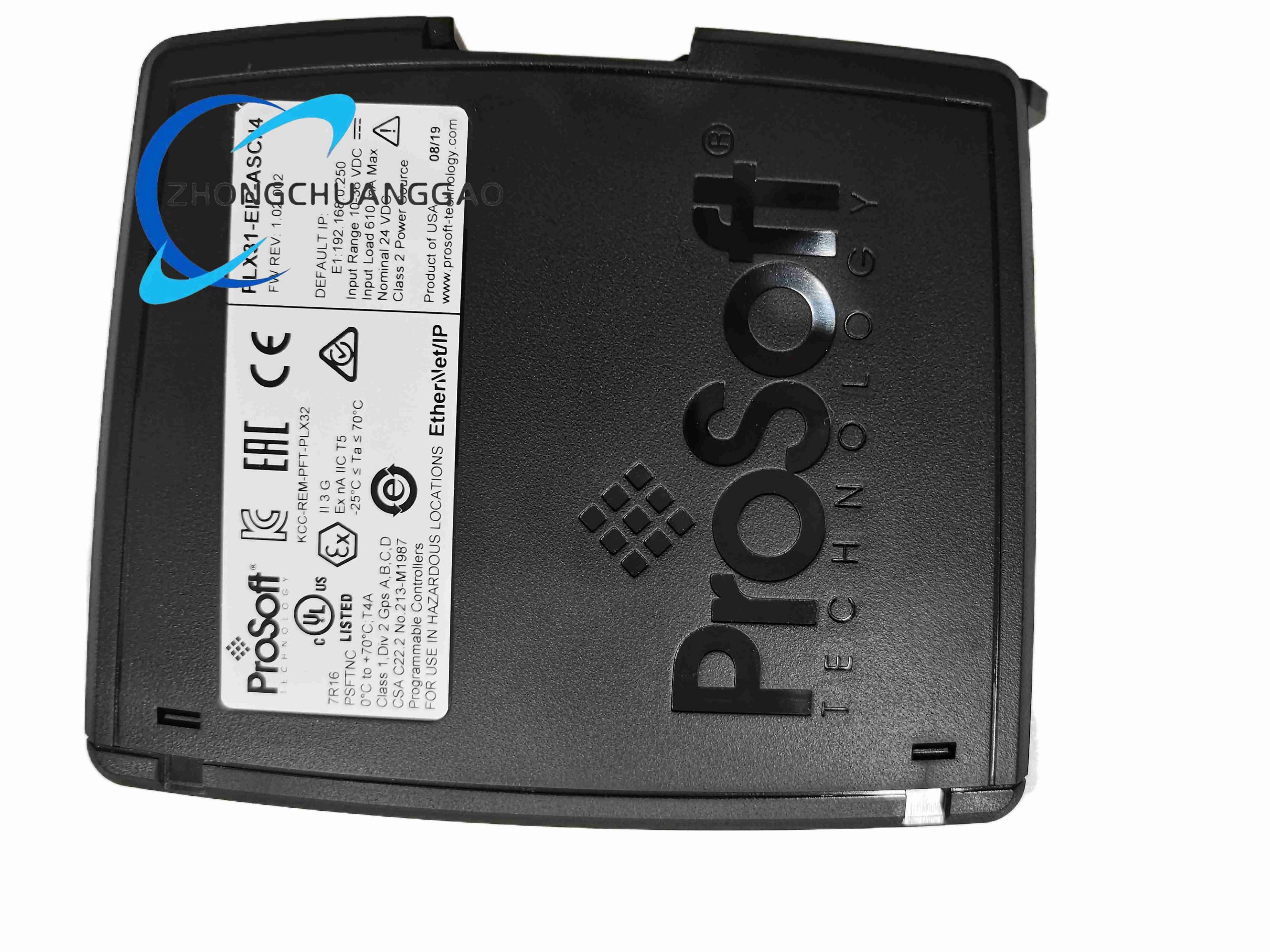

ProSoft Technology PLX31-EIP-ASCII4 - Image 1
ProSoft Technology PLX31-EIP-ASCII4 - Image 2
Click to enlarge

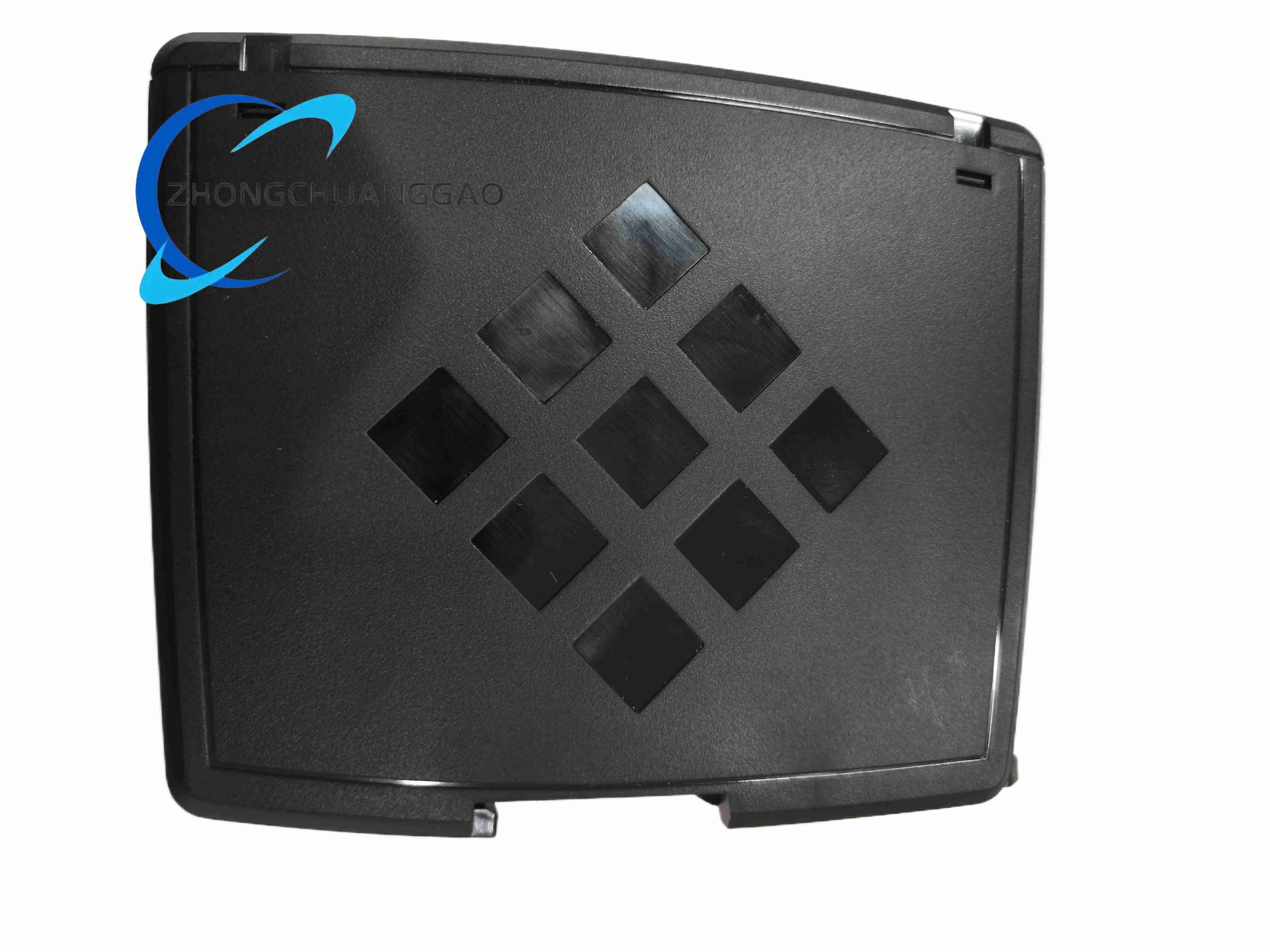

ProSoft Technology PLX31-EIP-ASCII4
ProSoft Technology PLX31-EIP-ASCII4 - Image 2

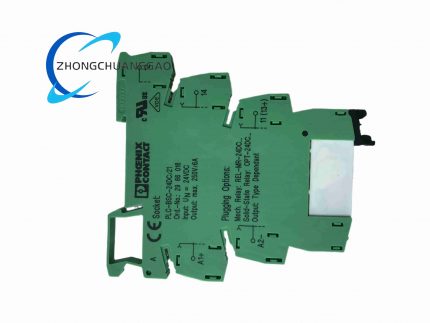

Phoenix Contact PLC-BSC-24DC/21
Phoenix Contact PLC-BSC-24DC/21
Back to products
Pioneer Magnetics PM33988-6P-1-3P-E
Pioneer Magnetics PM33988-6P-1-3P-E

ProSoft Technology PLX31-EIP-ASCII4

Product Name​
EtherNet/IP to ASCII four-port communication gateway
Product Introduction​
Industrial gateway that transfers data between EtherNet/IP-enabled controllers and ASCII serial devices such as barcode readers, weigh scales, printers and RFID readers. Supports explicit messaging and implicit I/O messaging.
Category:
Description
Technical Specifications​
Ethernet ports: 1 x 10/100 Mbps RJ45
Serial ports: 4 x RS-232 / RS-422 / RS-485
Power supply: 24 V DC nominal, 10 to 36 V DC allowed
Current consumption: 300 mA @ 24 V DC, 610 mA max
Operating temperature: -25 °C to 70 °C
Storage temperature: -40 °C to 80 °C
Humidity: 5% to 95% RH, non-condensing
Dimensions: 13.67 x 5.05 x 11.13 cm
Communication Features​
Class 3 server connections: 5
Class 3 client connections: 2 connected, 1 unconnected
Class 1 I/O connections: 4
I/O connection size: 248 bytes input / 248 bytes output
Max RPI: 5 ms per connection
Supported controllers: ControlLogix, CompactLogix, PLC-5, SLC 500
Messaging: CIP, PCCC, explicit and implicit messaging
ASCII Features​
Baud rate: 110 bps to 115.2 kbps
Data bits: 7 or 8
Stop bits: 1 or 2
Parity: none, even, odd
Transmit/receive buffer: 255 bytes
Inter-character delay: 0 to 65535 ms
Up to 100 configurable client commands
Hardware Features​
LED indicators: PWR, CFG, ERR, FLT, NS, MS
SD card slot for configuration backup
Embedded EDS Add-On Profile
Ethernet isolation: 1500 Vrms
Application Scenarios​
Manufacturing lines
Food processing
Oil and gas
Packaging machines
Automotive assembly
Barcode and weighing system integration
Installation Requirements​
Mount in control cabinet or DIN rail adapter
Use isolated/grounded shielded serial cables
Connect GND terminal for proper grounding
Avoid excessive RPI settings compared with serial baud rate
Usage Notes​
Each serial port is independently configurable.
Do not exceed electrical isolation and voltage ratings.
Use ProSoft Configuration Builder for command setup.
Prevent condensation and ensure adequate ventilation.
