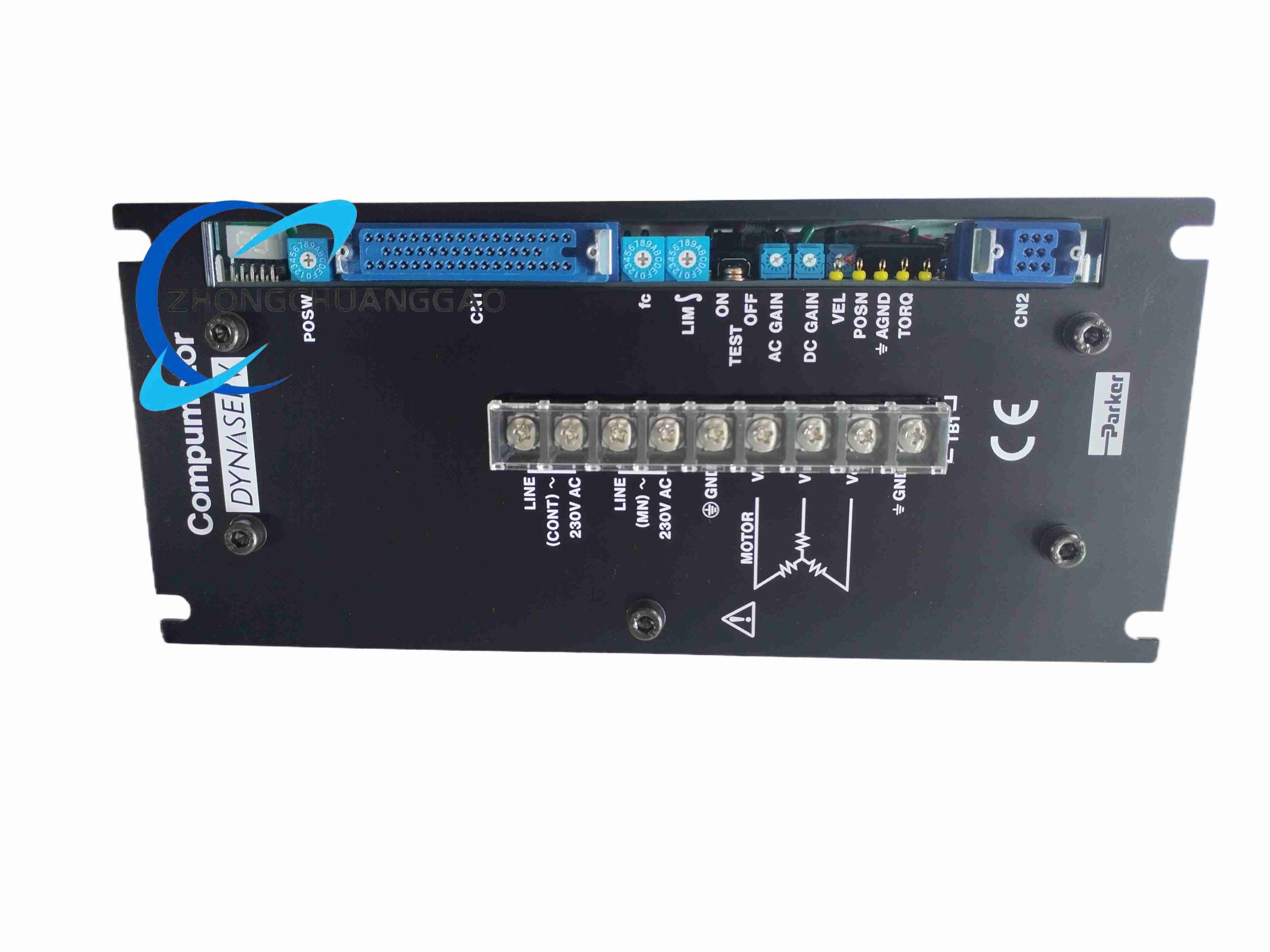

PARKER DR1008B-230

  • Product Name: Digital DC Drive / DC Motor Controller
  • Product Introduction: The Parker DR1008B-230 is a compact digital DC motor speed controller​ from the SSD Drives lineage, providing 230V AC​ input and 8A​ continuous output for small to medium DC motor applications.
Category:
Description
  • Technical Specifications:
    • Input Voltage: 230 V AC​ (single or three-phase)
    • Rated Output Current: 8 A​ continuous
    • Output Voltage: 0 – 230 V DC​ (armature)
    • Speed Range: 1:100​ open-loop, 1:1000​ closed-loop
    • Control Type: Single or Four-quadrant (model dependent)
  • Functional Characteristics: Supports Tacho, Encoder, or Armature Voltage​ feedback; configurable via onboard dip-switches or PC software; optional RS485/Modbus​ communications.
  • Performance Parameters:
    • Operating Temperature: -10°C to +45°C​ (derating to +50°C)
    • Protection Rating: IP20
    • Protection Functions: Over-current, over-voltage, under-voltage, over-temperature, field loss
  • Material Composition: Cold-rolled steel chassis with powder coating; FR4 PCB.
  • Structural Features: Panel/wall-mountable design; clearly labeled power and motor terminals; LED status indicators.
  • Working Principle: Converts AC input to regulated DC output using phase-controlled thyristors (or PWM depending on topology) and adjusts firing angle based on speed/feedback error.
  • Advantage Highlights: Continuation of Eurotherm/SSD reliability; precise torque/speed regulation; compact footprint saving panel space.
  • Applicable Industries: Packaging, Printing, Extrusion, Laboratory Equipment, Machine Tool Retrofit.
  • Model Series: Parker DR Series / SSD Drives 590+ related.
  • Installation Requirements: Mount vertically in ventilated enclosure (IP20); ensure armature and field wiring separation; connect appropriate AC line fuses.
  • Usage Precautions: Verify motor insulation resistance before energizing; ensure field supply is present before armature enable to prevent runaway; disable auto-restart after power loss if unsafe.
