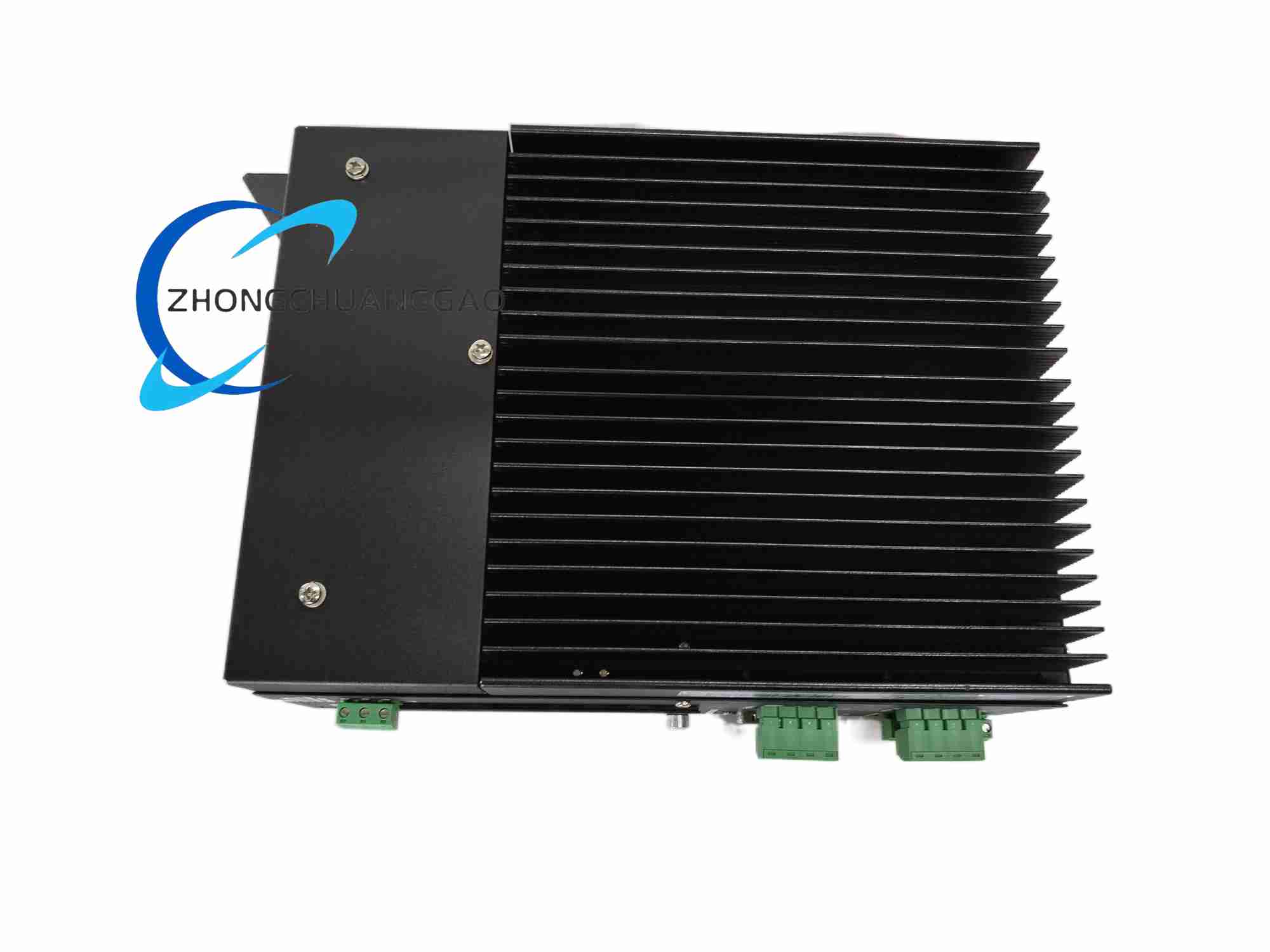

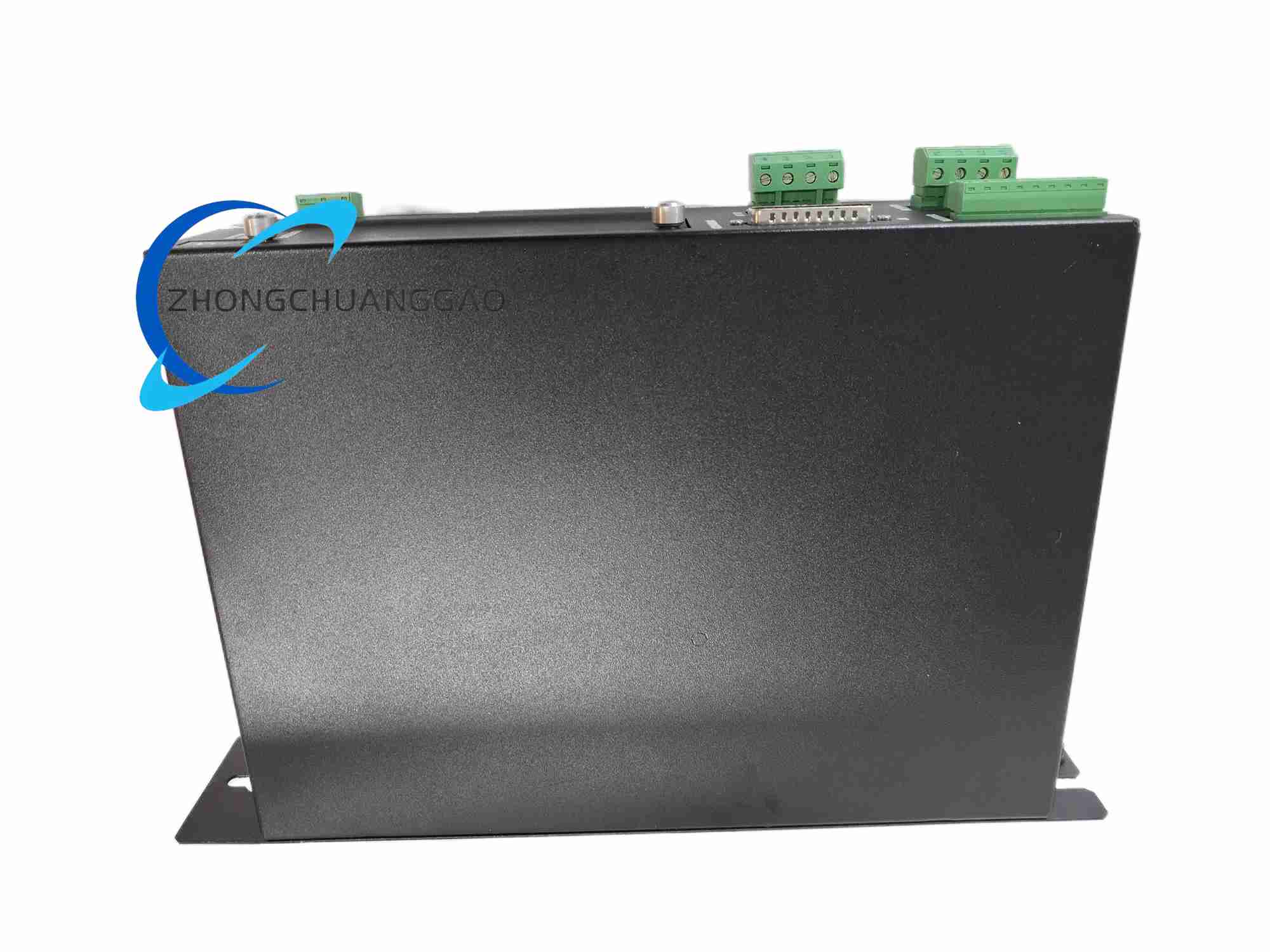

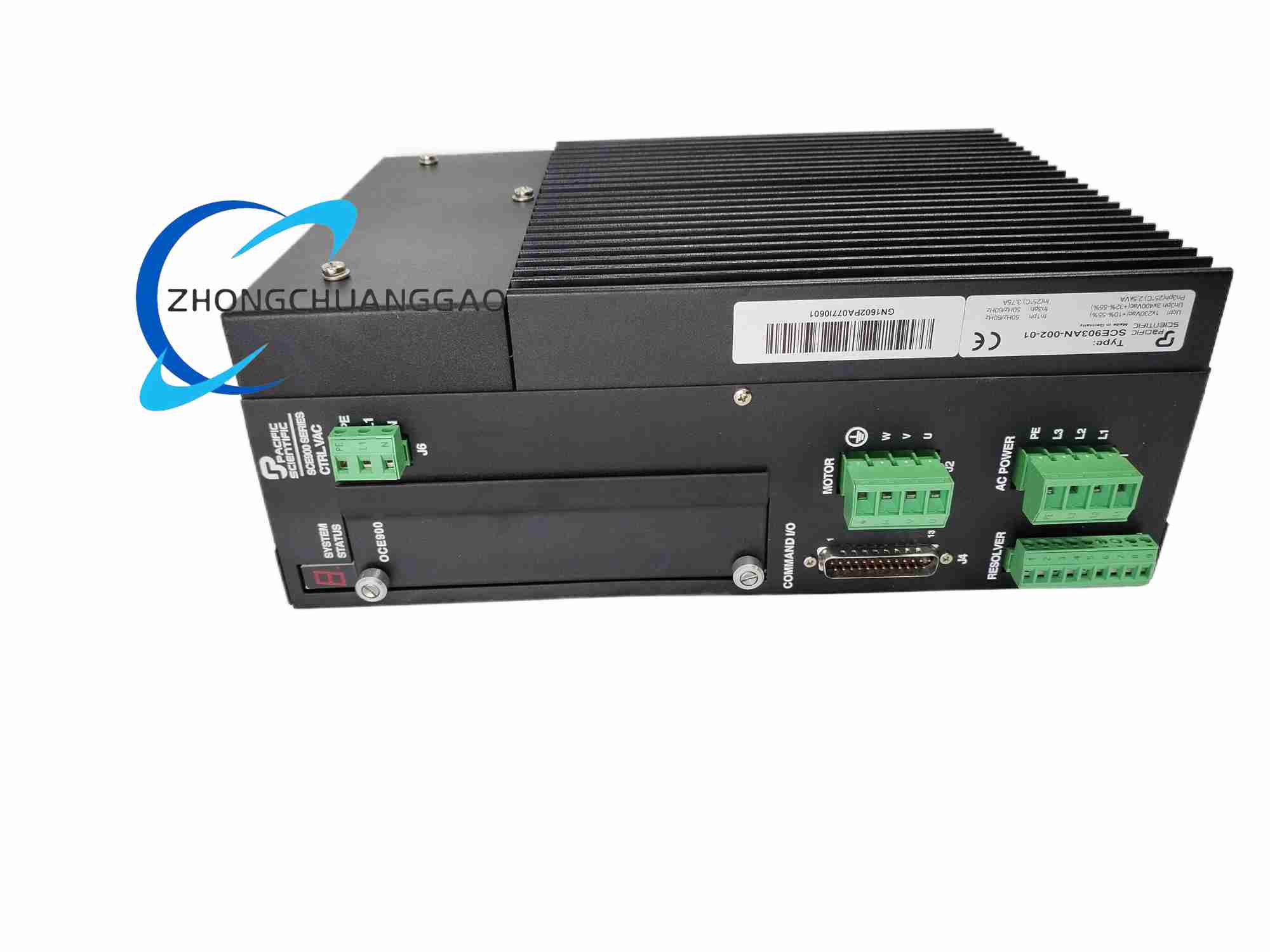

PACIFIC SCIENTIFIC SCE903AN-002-01

  • Product Name:​ SCE900 Series Medium-Power Digital Servo Drive
  • Product Introduction:​ DSP-based brushless servo amplifier for mid-size PM motors, optimized for fanless convection cooling and cleanroom use.
Category:
Description
  • Technical Specifications:
    • Continuous Current: 3.75 A, Peak 7.5 A
    • Input Voltage: 90–264 VAC, 47–63 Hz (or 24 VDC logic variant)
    • Control: Position / velocity / torque, sinusoidal commutation
    • Feedback: Resolver or encoder (option-card dependent)
    • Cooling: Natural convection, no fan
    • Operating Temperature: -40 to +85 °C
    • Diagnostics: 7-segment LED status
  • Functional Features:​ Modular option-card slot; EEPROM parameter storage; auto-tuning; low acoustic/particle emission; compatible with PacSci R-series motors.
  • Application Scenarios:​ Semiconductor lithography stages, pharma filling machines, lab automation, small gantry robots.
  • Installation Requirements:​ Vertical mounting preferred for convection; slot 0 reserved for comm/feedback card; 50 mm top/bottom air clearance.
  • Usage Notes:​ Do not cover heatsink; remove option card only when de-energized; verify EEPROM write cycle limit during frequent recipe changes.
