Technical Specifications (typical OS550A family):
-
Temperature Ranges (model dependent):
-
OS551A: –30 to +400°C (–20 to +752°F)
-
OS552A: –30 to +538°C (–20 to +1000°F)
-
OS553A: –30 to +871°C (–20 to +1600°F)
-
OS554A: –30 to +1370°C (–20 to +2500°F)
-
Accuracy: ±1% of reading or ±1.7°C (3°F), whichever is greater @ 25°C ambient, ε=0.95
-
Repeatability: ±(1% of reading + 1 digit)
-
Spectral Response: 8–14 µm (silicon/pyroelectric detector, atmospheric window)
-
Emissivity Adjustment: 0.10 to 1.00 in 0.01 increments
-
Response Time: 100 ms (63.2% of final value)
-
Optical Resolution (Spot Size): Various FOV lenses available; e.g. 25.4 mm spot @ 1524 mm distance (D:S ratios from 2:1 to 60:1 depending on optic code)
-

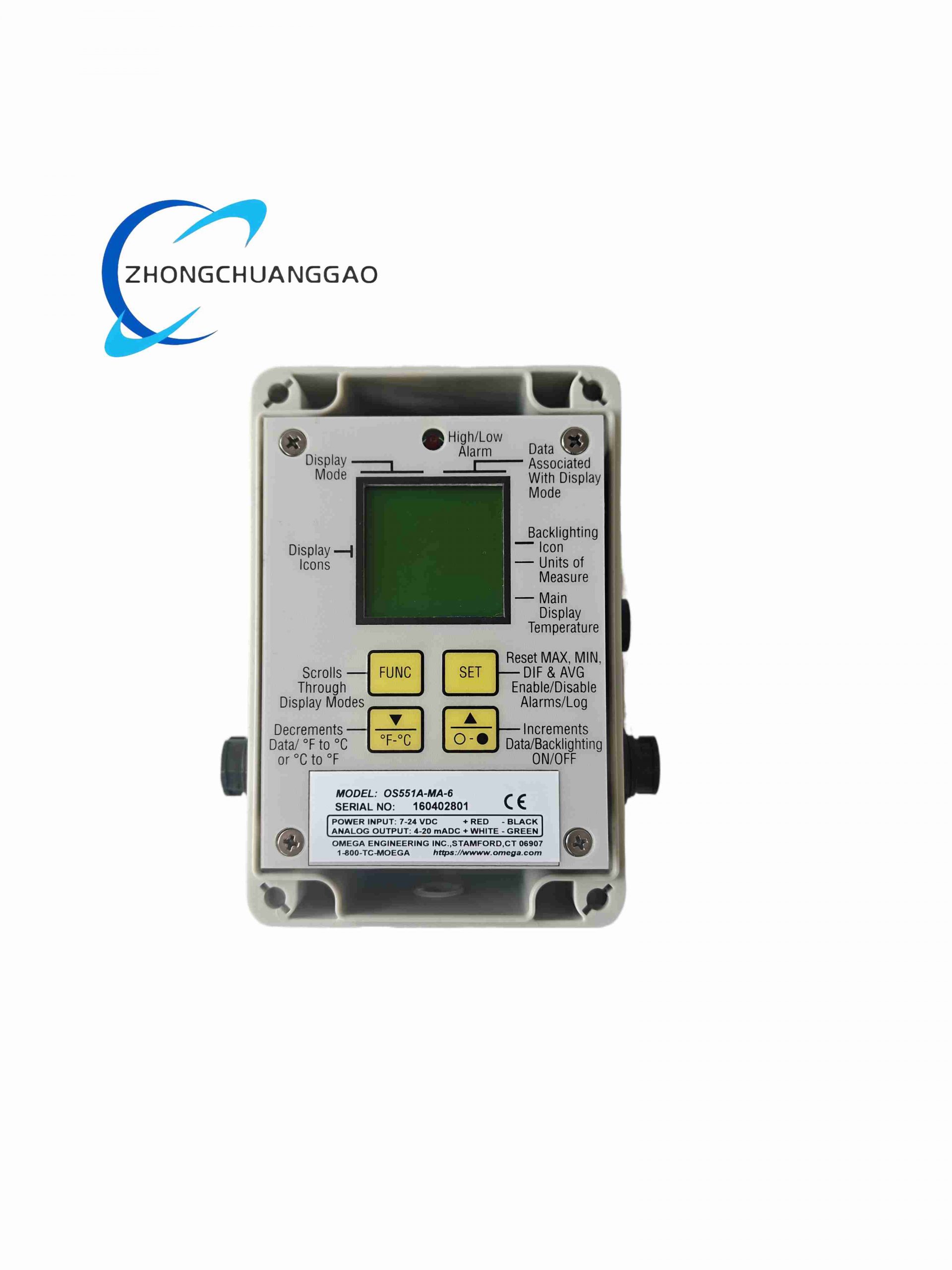

Display: Backlit dual LCD showing current temperature, MAX/MIN/AVG/ΔT
-
Analog Outputs: Simultaneous 4–20 mA (loop-powered or isolated), 0–5 VDC, and 1 mV/°C (degree)
-
Alarm Outputs: 2× open-collector or voltage outputs (Hi/Lo); red LED + audible buzzer on alarm
-
Serial Interface (on -A models): RS-232 bidirectional with Windows logging software
-
Laser Sighting: Class 2 visible red laser (<1 mW @ 650 nm) for aiming (removable after alignment)
-
Supply Voltage: 8–24 VDC @ 80 mA typical (for sensor head)
-
Operating Temperature (Electronics): 0 to +50°C (32 to 122°F); with water-cooling jacket up to +85°C
-
Ambient Humidity: 10–90% RH non-condensing
-
Enclosure Rating: NEMA 4 / IP65 (sensor head and electronics case)
-
Sensor Head Dimensions: Ø41 × 109 mm (1.63″ × 4.3″)
-
Cable Length: 4.5 m (15 ft) standard sensor-to-electronics cable
-
Weight: Sensor head 0.45 kg; complete kit ~1.2 kg
-

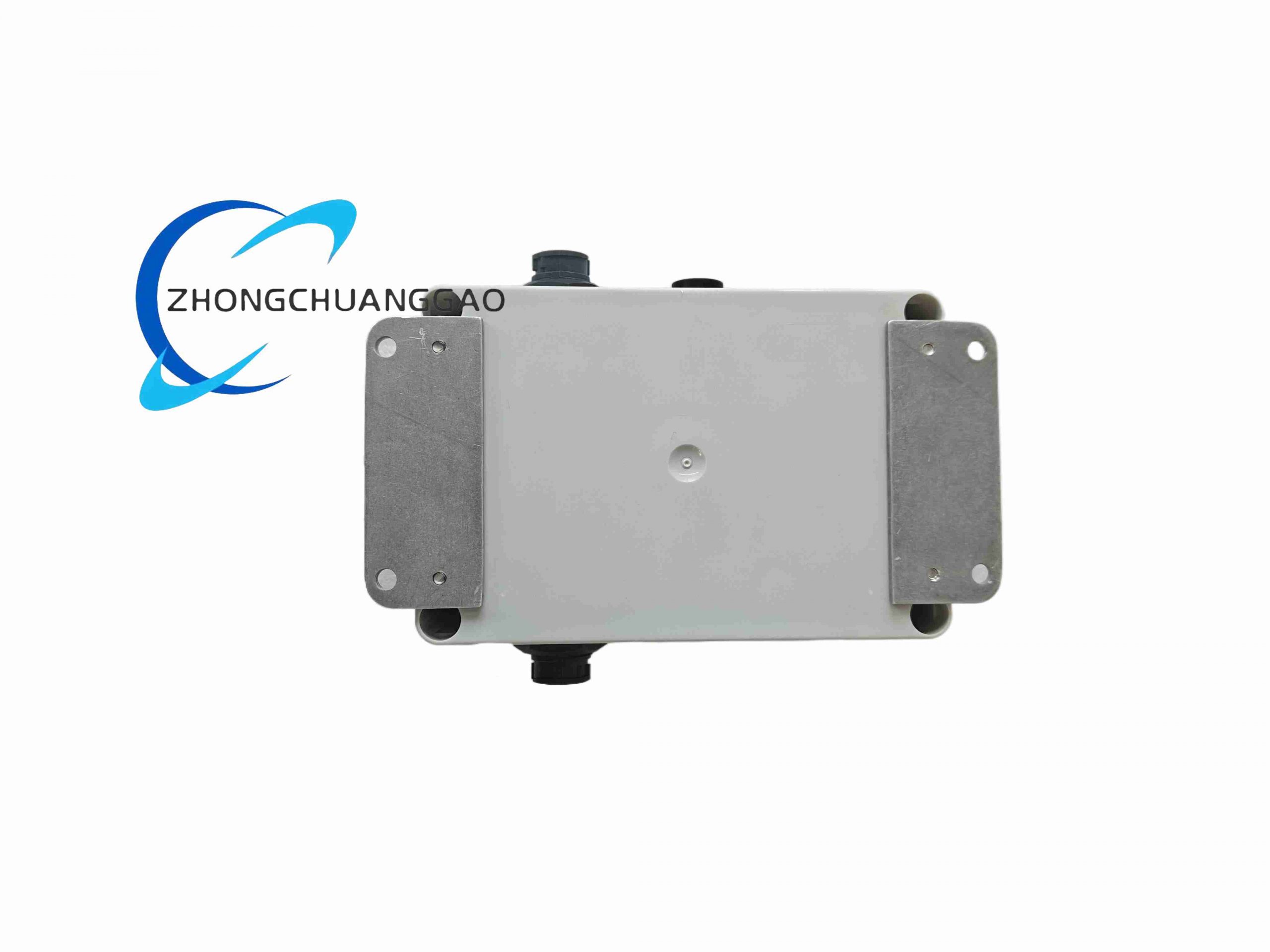

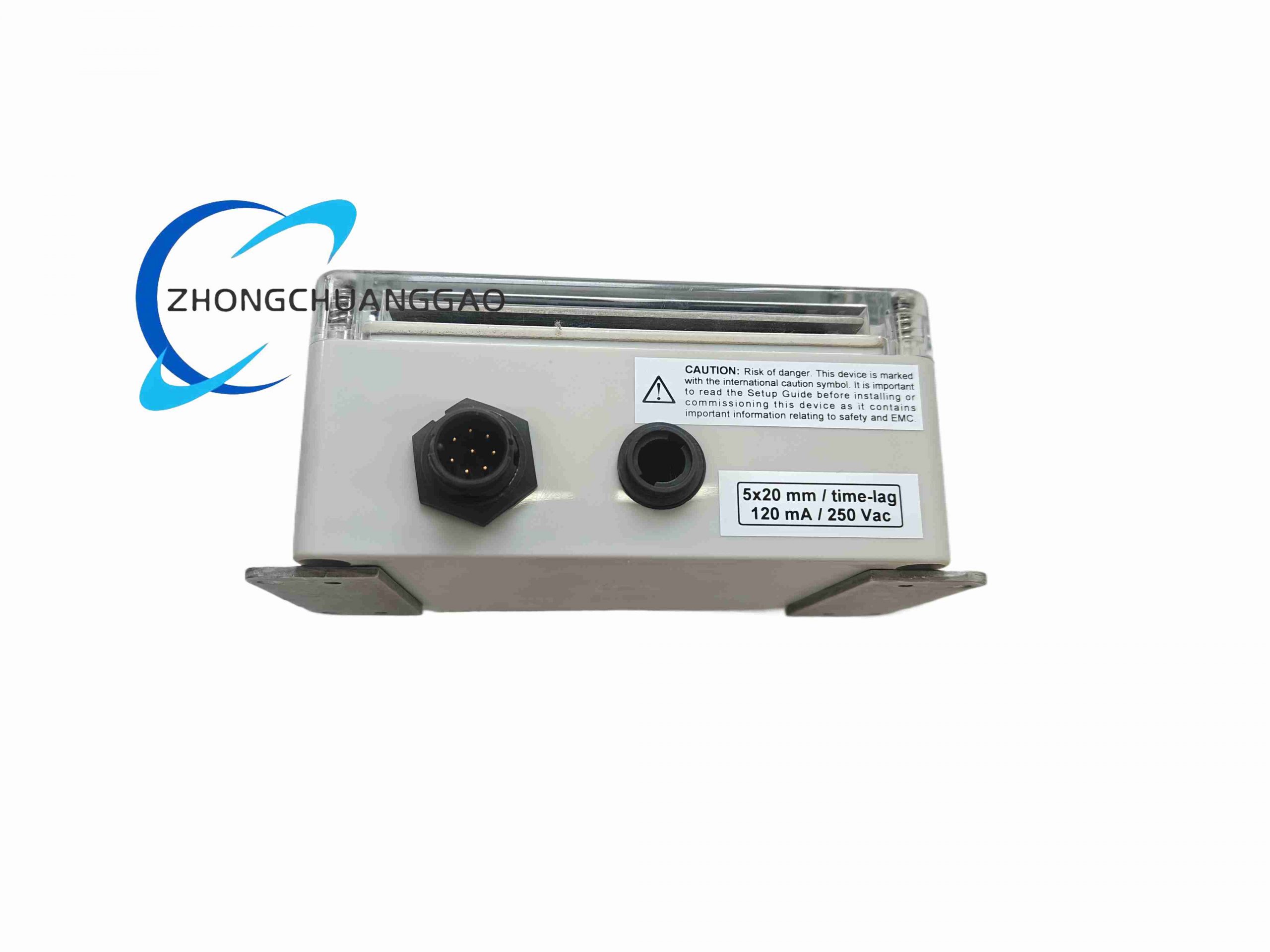

Material: Anodized aluminum sensor housing; polycarbonate/ABS electronics case (or optional aluminum case)
-
Certifications: CE, FCC
Features:
-
Chopper-less design → can be mounted in any orientation without performance shift
-
Emissivity table lookup or manual entry
-
Peak hold / valley hold modes for transient temperature capture
-
PC software for datalogging and configuration
Applications:
Roller/conveyor belt temperature in plastics & rubber, furnace wall monitoring, transformer busbar hot-spot detection, food processing belts, glass tempering ovens, paper mill dryer cans.
Installation & Precautions:
-
Ensure target fills at least the minimum spot size; if target is smaller, accuracy degrades
-
Clean lens periodically with compressed air or soft lens tissue — NEVER touch germanium/glass lens with fingers
-
Shield from steam, dust, or high-energy RF; use air purge collar if needed
-
Verify emissivity of material at measurement wavelength (8–14 µm) — polished metals need very low ε or 2-color pyrometer
