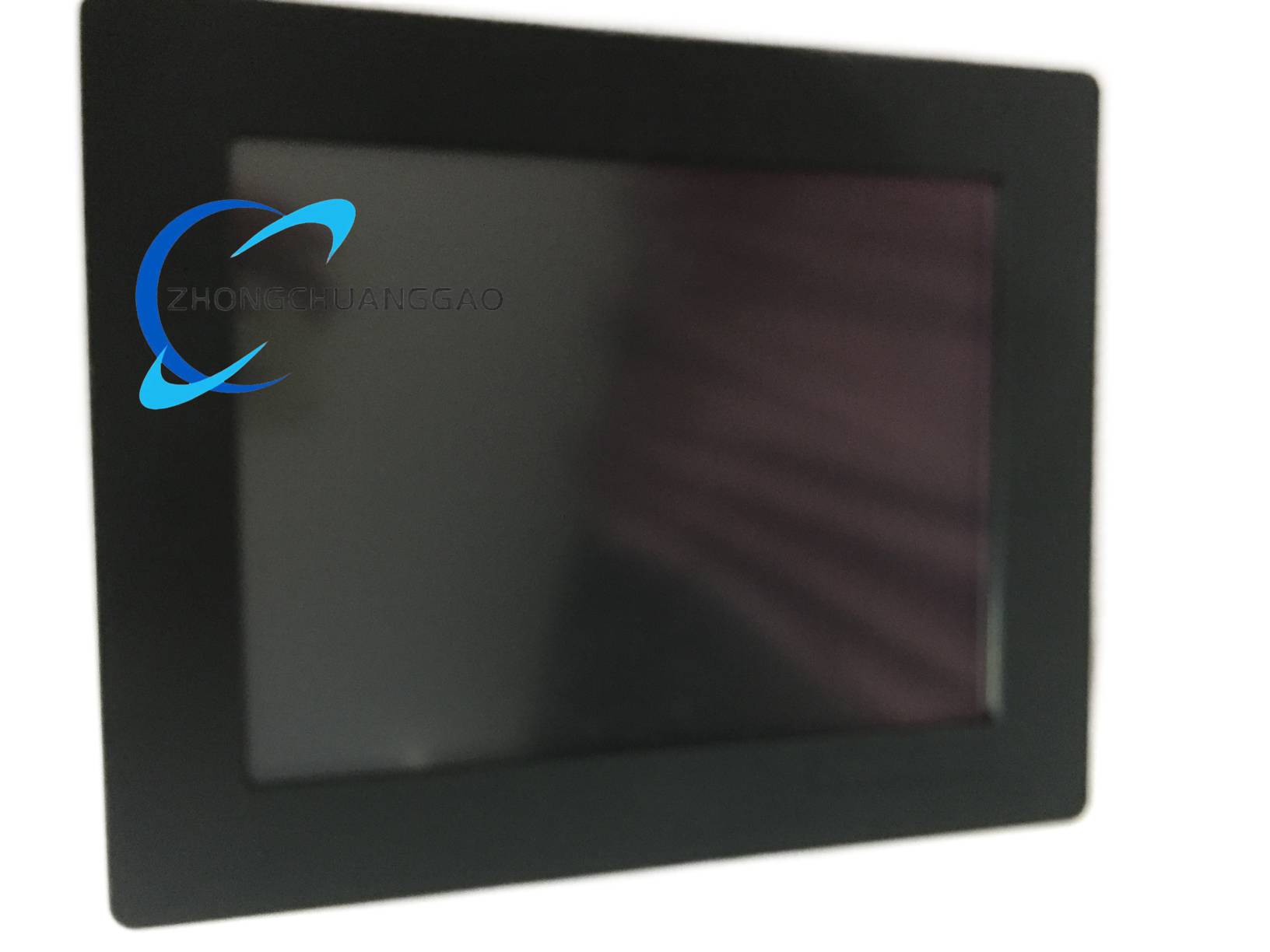

Okuma EPC1200T-N270-2GB-40SS-XP

Technical Specifications: It is equipped with a 12-inch TFT LCD display and an Intel Atom N270 1.6 GHz processor. Memory is 2 GB DDR2 RAM, and storage is a 40 GB solid-state drive. Operating system is Windows XP Embedded. Power supply is 100–240 VAC at 50/60 Hz. Operating temperature ranges from 0°C to +40°C. Front protection class is IP65, and rear protection class is IP20. It adopts panel mount installation, and holds CE, UL, cUL, and C-Tick certifications.

Functional Features: Its fanless design eliminates moving parts and improves reliability. Solid-state storage provides high vibration and shock resistance. Rich I/O interfaces support connection with various industrial devices. It supports multiple industrial communication protocols, and its rugged housing adapts to harsh industrial environments. It has a long product lifecycle for legacy system compatibility.

Application Scenarios: It applies to human-machine interfaces for CNC machine tools, production line monitoring and control terminals, extruder and conveyor system control, wire drawing machine operation stations, and industrial automation data visualization.

Performance Parameters: Processor has 512 KB L2 cache, and system bus frequency is 533 MHz. Display resolution is 800 × 600 SVGA. Mean time between failures exceeds 50,000 hours. It meets industrial-grade vibration resistance standards.

Material Composition: Front panel is made of die-cast aluminum alloy with corrosion-resistant coating. Display panel is industrial-grade TFT LCD with scratch-resistant surface. Housing adopts engineering plastic and metal composite structure. Internal components use industrial-grade electronic components with wide temperature tolerance.

Structural Features: It features an ultra-thin panel mount design with 86.75 mm mounting depth, a sealed front panel for water and dust resistance, rear-facing I/O interfaces for convenient wiring, and integrated mounting brackets for panel installation.

Working Principle: The device uses a low-power Intel Atom processor as the computing core, runs Windows XP Embedded operating system, and provides human-machine interaction through the touch display screen. It connects with field control devices through various communication interfaces to realize data display, parameter setting, and logic control functions. The fanless design relies on the housing for natural heat dissipation.

Installation Requirements: Install the device in equipment control panels with specified cutout dimensions. Ensure sufficient rear space for cable connection and heat dissipation. Use shielded cables for communication interfaces, and verify power supply voltage matches device specifications before power-on.

Precautions for Use: Do not operate beyond the specified temperature and humidity ranges. Clean the display surface with soft cloth to avoid scratches. Do not use sharp objects to operate the touch screen. Perform regular system backup to prevent data loss, and ensure ventilation around the device to maintain heat dissipation.
