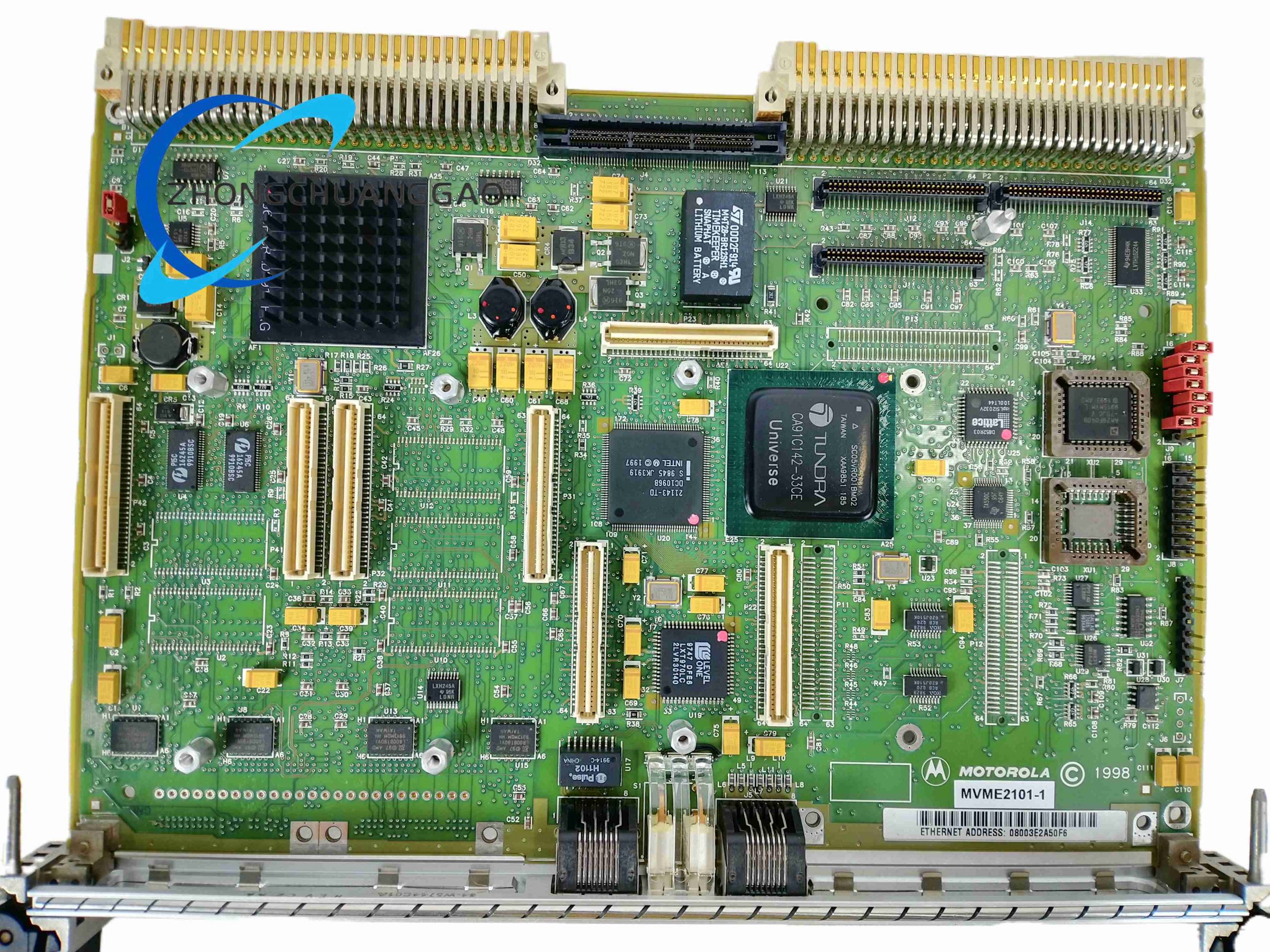

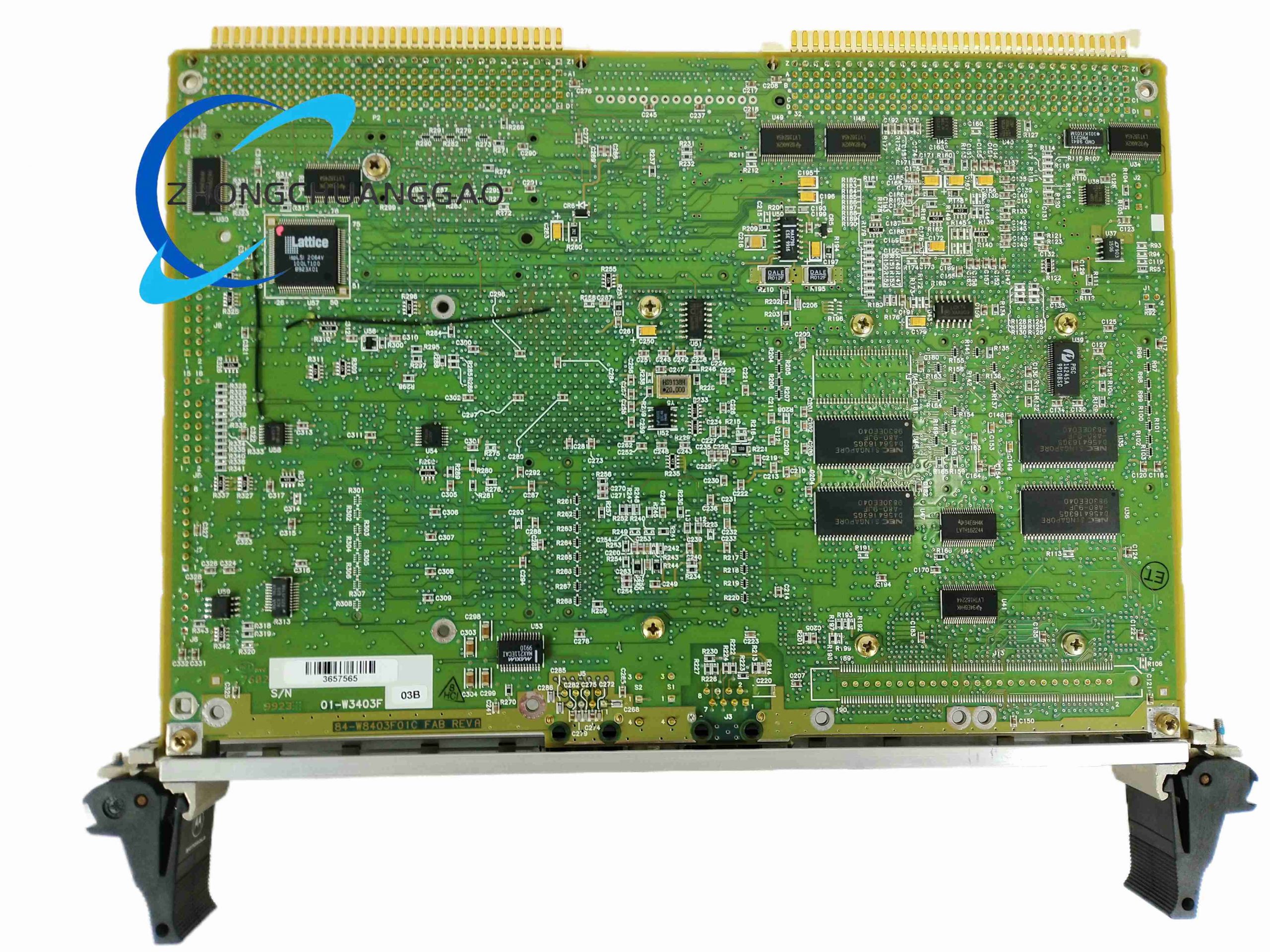

Motorola MVME2101-1 6U VME single-board computer
Product Overview
MVME2101-1 is a transitional VME SBC platform supporting Motorola 68k and PowerPC migration paths. It provides computing, communication, and I/O expansion in a standard 6U VME form factor.
Category:
Description
Processor
Motorola MC68040 at 25 MHz with FPU. Some configurations relate to PowerPC upgrade paths for software migration.
Memory
8 MB ECC DRAM on board. Flash memory for firmware and boot code. Battery-backed SRAM for nonvolatile parameters.
Expansion
Two PMC slots, 32/64-bit. VME64 interface with A32/D32 or higher data transfer modes. PCI-to-VME bridging for high-speed backplane communication.
Communication And I/O
10 Mbps AUI Ethernet. Two RS-232C serial ports. One IEEE-1284 parallel port. SCSI-2 Fast interface. Four 16-bit timers and one watchdog timer.
Firmware
2101Bug boot monitor with network boot, disk boot, memory test, and diagnostic functions.
Power Requirement
+5 V typical around 3.5 A. Typical consumption below 15 W depending on configuration.
Operating Environment
0 °C to +55 °C commercial/industrial operating range.
Applications
Legacy VME system upgrades, industrial controllers, defense electronics, process automation, and embedded real-time computing.
Usage Notes
Confirm PMC module voltage and PCI clock compatibility. Use proper VME slot assignment for system controller mode. Do not mix 68k and PowerPC firmware images incorrectly.
