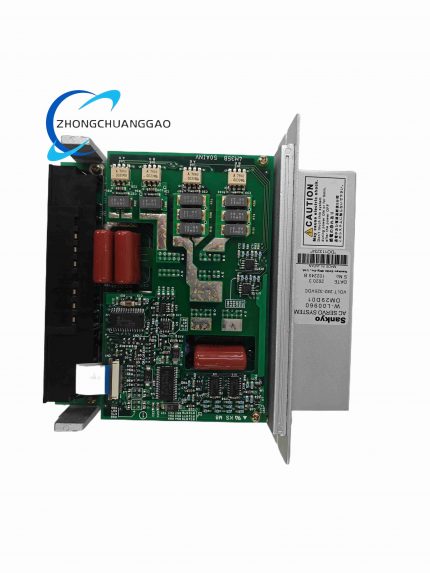

SANKYO W-L00960
SANKYO W-L00960
Back to products
RELIANCE ELECTRIC WR-D4007
RELIANCE ELECTRIC WR-D4007

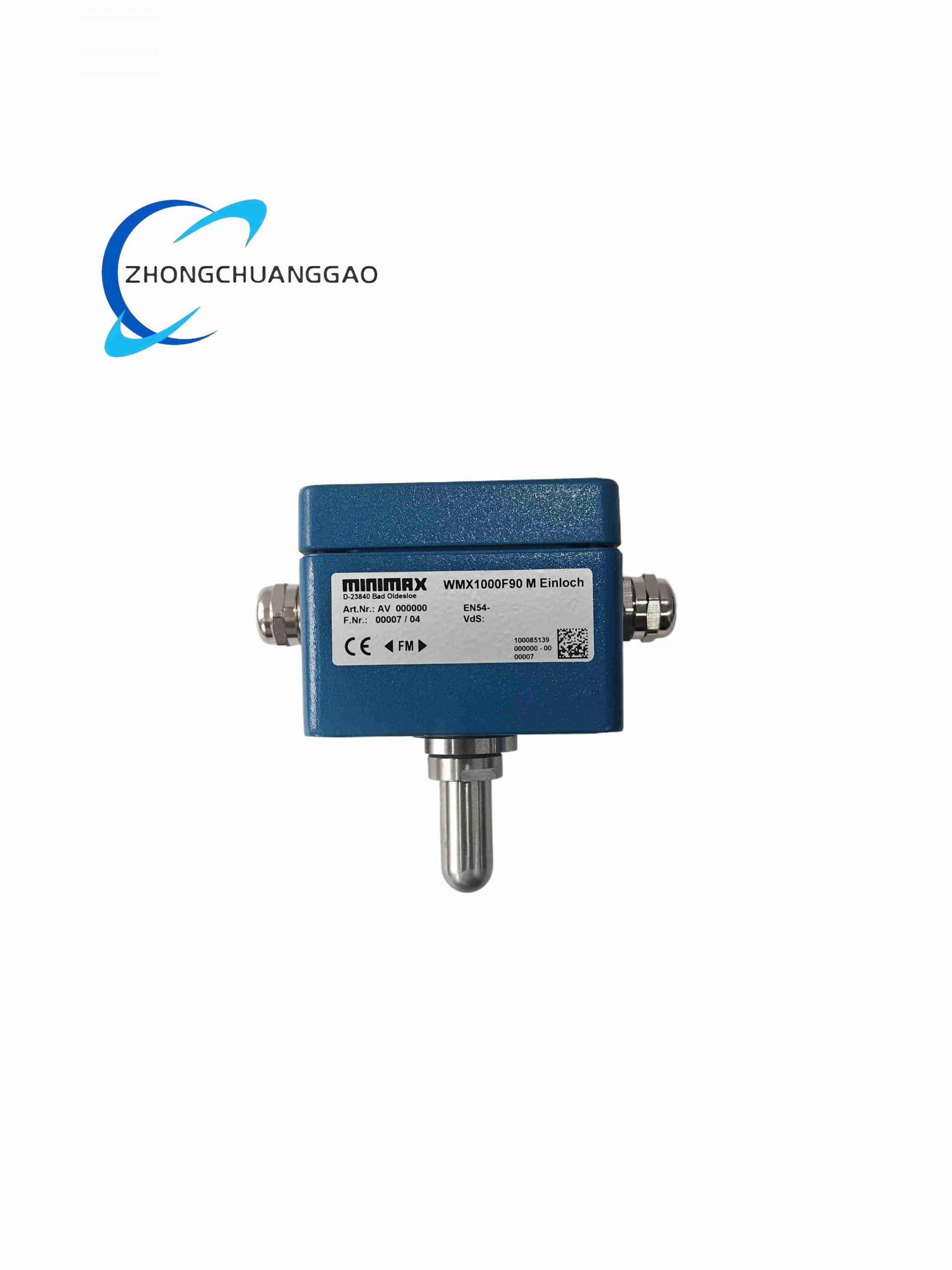

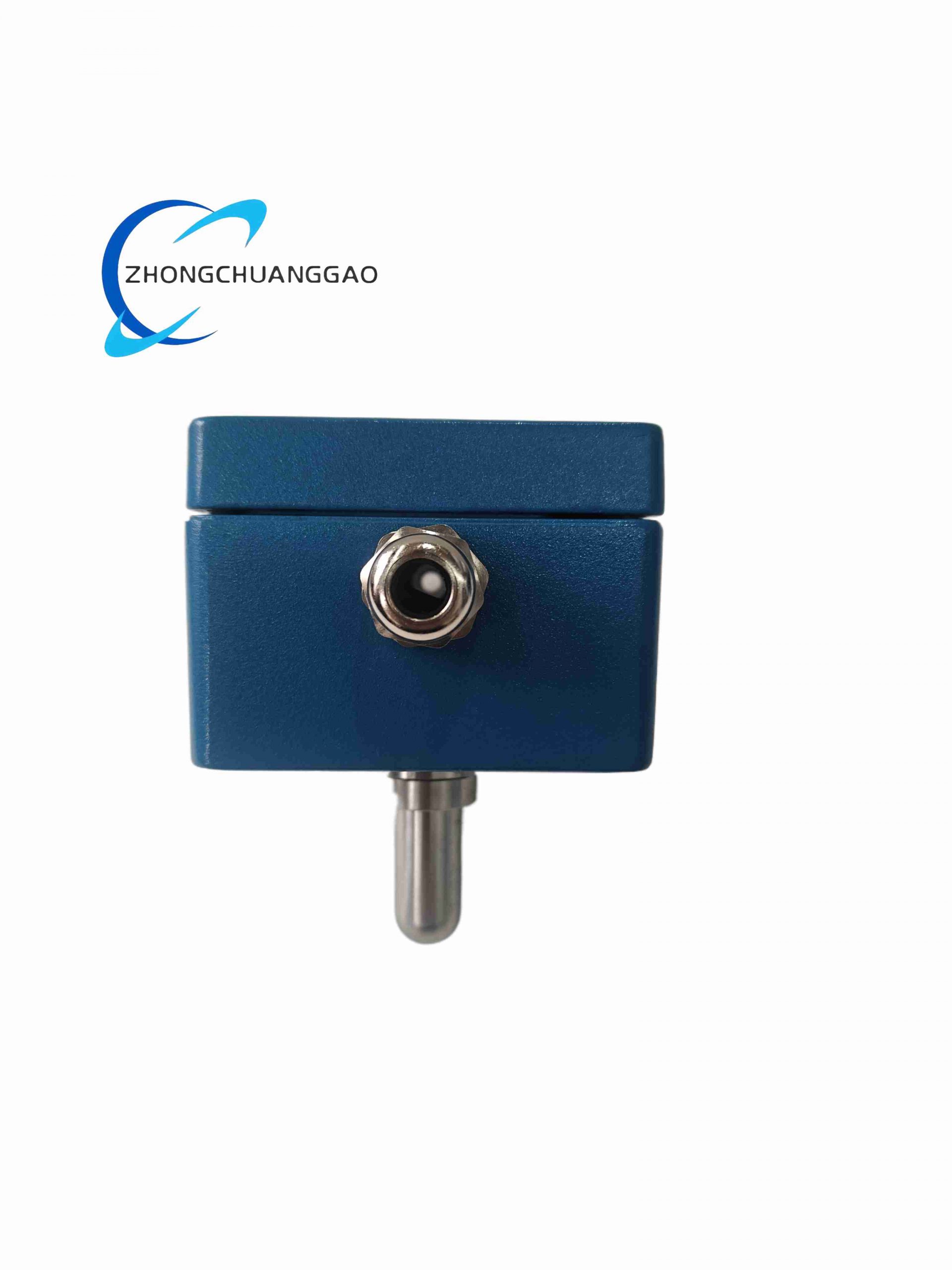

MINIMAX WMX1000F90

Product Introduction:
The WMX1000F90 is a robust, conventional-type heat detector from Minimax GmbH & Co. KG, designed for use in hazardous dust areas. It detects fire by fixed-temperature threshold and/or rate-of-rise, intended for conventional 2-wire fire detection loops.
Category:
Description
Technical Specifications:
  • Detection Principle:​ NTC sensor — Fixed temperature + Rate-of-Rise (Class A1 or A2 depending on variant)
  • Response Temperature (typical F90):​ 84–100 °C (Class C / high-temp version for hot environments)
  • Operating Temp. Range:​ –20 … +80 °C
  • Supply Voltage:​ 7.6–13.2 V DC (conventional loop)
  • Quiescent Current:​ ≈ 40–70 µA
  • Alarm Current:​ ≈ 15 mA
  • IP Rating:​ IP65 (dust-tight, water jet resistant)
  • Enclosure Material:​ Die-cast aluminum, blue (RAL 5009) or stainless steel option
  • ATEX Approval:​ II 1D Ex tD A20 IP65 T136 °C (Category 1 for dust explosive atmospheres)
  • Dimensions:​ ≈ 122 × 106 × 100 mm
  • Weight:​ ≈ 0.6 kg
  • Remote Indicator:​ Connectable
  • Requires:​ Intrinsic safety barrier (e.g. Minimax 904991) on conventional loop in Ex zone
Applications:​ Grain elevators, powder handling plants, textile mills, chemical processing areas with combustible dust.
