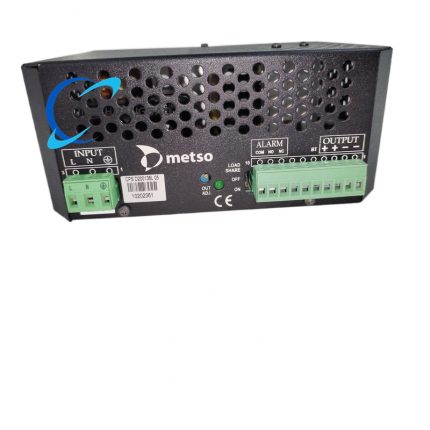

Metso D200136

Technical Specifications

• Input Voltage Range: 115 VAC – 230 VAC, single-phase
• Input Frequency: 50 Hz / 60 Hz auto-detection
• Rated Output Voltage: 28 VDC
• Max Continuous Output Current: 9 A
• Output Power Rating: 252 W
• Isolation Grade: 2500 Vrms input-output isolation
• Operating Temperature Range: -10 °C ~ +50 °C
• Storage Temperature Range: -40 °C ~ +85 °C
• Humidity Tolerance: 5% – 95% relative humidity, non-condensing
• Vibration Resistance: 1.5 g (10–150 Hz per IEC 60068-2-6)
• Shock Resistance: 10 g (11 ms pulse per IEC 60068-2-27)
• Dimensions (W×H×D): 120 mm × 180 mm × 60 mm
• Net Weight: 1.2 kg
• Certifications: CE, UL 508, IECEx general industrial certification

Functional Features

1. Built-in overvoltage, overcurrent, short-circuit, overheat four-level hardware protection
2. Active power factor correction (PF ≥ 0.93) to reduce grid harmonic interference
3. Internal cooling forced air ventilation with anti-dust mesh filter
4. Front panel LED status indicators: Power OK, Fault, Overload
5. Terminal block screw locking design for secure field wiring
6. Parallel redundant power supply expansion support (max 4 units parallel)
7. Constant voltage output with ±0.3% full load regulation accuracy

Performance Parameters

• Voltage ripple: ≤ 120 mV peak-to-peak
• Transient response recovery time: < 10 ms under 0–100% load jump
• Mean time between failures (MTBF): 320,000 hours at 25 °C ambient
• Load regulation deviation: ≤ 0.5% from 10% to 100% rated load

Material Composition

• Outer Enclosure: Cold-rolled SPCC steel plate, electrostatic anti-corrosion black coating
• Internal Heat Sink: 6063 extruded aluminum alloy
• Circuit Substrate: FR-4 high-temperature flame retardant PCB (TG 170 °C)
• Power Semiconductor Components: Silicon insulated gate bipolar transistors (IGBT)
• Terminal Blocks: PA66 flame retardant plastic, tin-plated copper conductive terminals
• Cooling Fan: Brushless DC axial fan with stainless steel bearing frame

Structural Characteristics

• Horizontal rack-mount integrated structure, single slot occupation for standard industrial cabinet
• Front ventilation grille, rear wiring terminal concentrated layout
• Internal layered partition design separating high-voltage input and low-voltage output circuits
• Metal grounding lug at chassis bottom for unified system grounding
• Quick-release mounting clips for tool-free cabinet disassembly

Working Principle

Advantage Highlights

1. Wide universal AC input eliminates regional voltage matching limitations
2. High power density reduces cabinet space occupation by 30% vs conventional power supplies
3. Complete hardware protection eliminates downstream module burnout risks
4. Low harmonic pollution meets IEC 61000-3-2 industrial power standards
5. Compatible with all Metso D20 series control modules without adapter conversion
6. Long service life brushless fan with automatic speed adjustment based on internal temperature

Applicable Industries

Model Series Affiliation

Installation Requirements

1. Install on standard 19-inch industrial DIN rack cabinet with minimum 20 mm vertical clearance above and below unit for heat dissipation
2. Cabinet ambient temperature must not exceed 50 °C; external forced cooling fan required for continuous operation above 45 °C
3. Connect chassis grounding lug to cabinet protective earth with 4 mm² copper wire
4. Input wiring must use 1.5 mm² minimum cross-section insulated copper cables; output wiring minimum 2.5 mm² copper cables
5. Maintain minimum 10 cm distance between unit and high-voltage frequency converters to avoid electromagnetic crosstalk
6. Tighten terminal block screws to torque value 0.8 N·m using calibrated torque screwdriver

Operation & Maintenance Precautions

1. Disconnect main AC input power before opening enclosure cover for inspection or maintenance
2. Clean ventilation mesh filter every 3 months to prevent dust blockage causing overheating shutdown
3. Avoid operating in environments with conductive metal dust, corrosive acid/alkaline vapor or explosive gas mixtures
4. Do not connect non-Metso third-party control modules to output terminals to prevent overload protection trigger
5. Replace internal cooling fan every 5 years to avoid fan stall-induced overheat faults
6. Store spare units in dry constant-temperature warehouse with humidity controlled below 60%
