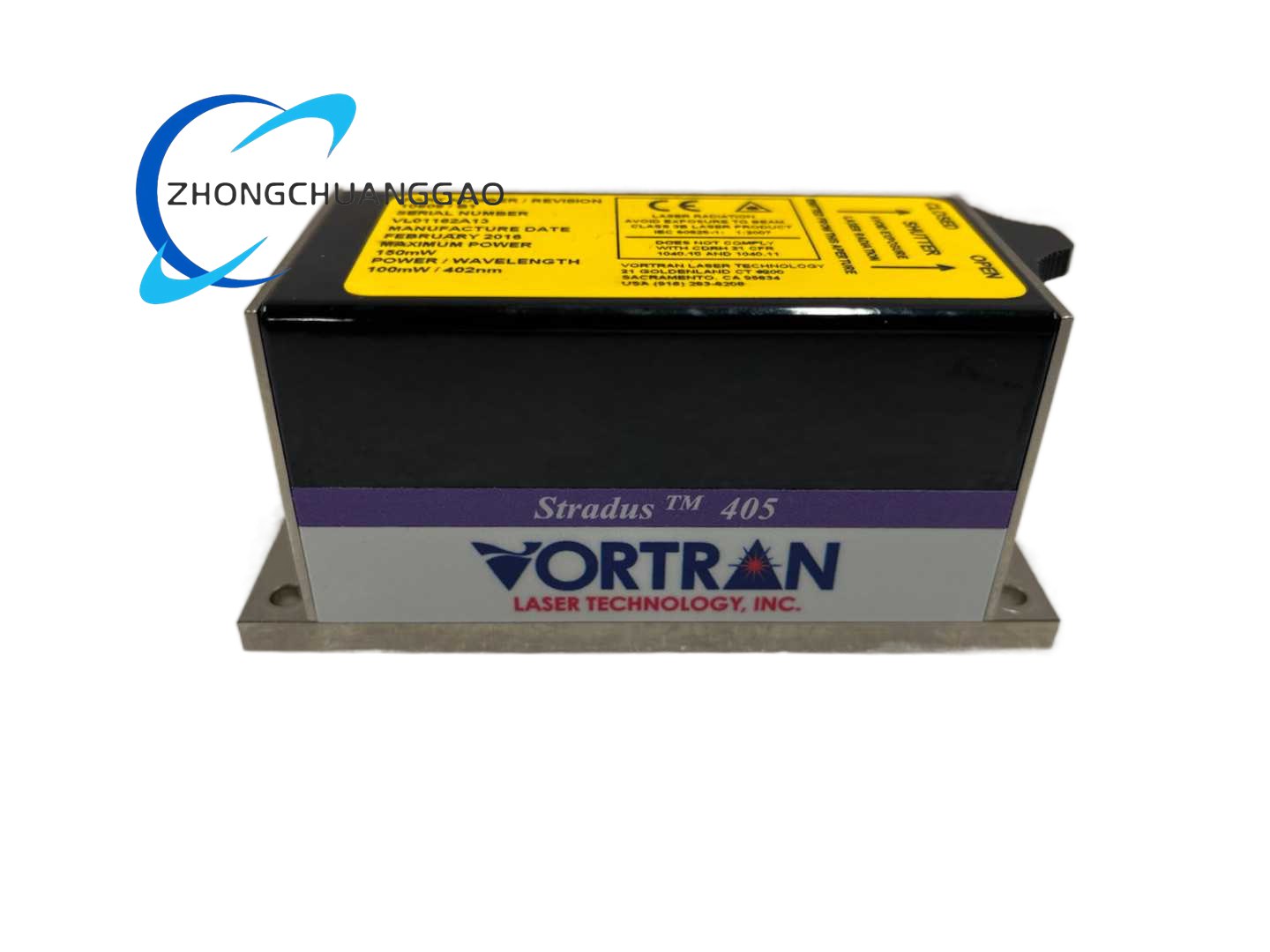

MD Innovation Tech STRADUS

Technical Specifications

• Optical Architecture: Patented hermetically sealed optical cavity
• Available Wavelengths: 375 nm to 785 nm across standard models (375, 405, 445, 473, 488, 505, 514, 532, 561, 633, 637, 642, 660, 685, 705, 730, 785 nm)
• Wavelength Tolerance: ±1 nm to ±10 nm depending on specific wavelength model
• Beam Profile: Excellent TEM00 mode beam quality
• Optical Noise: Low intrinsic amplitude noise
• Modulation Capability: Analog intensity modulation and digital modulation

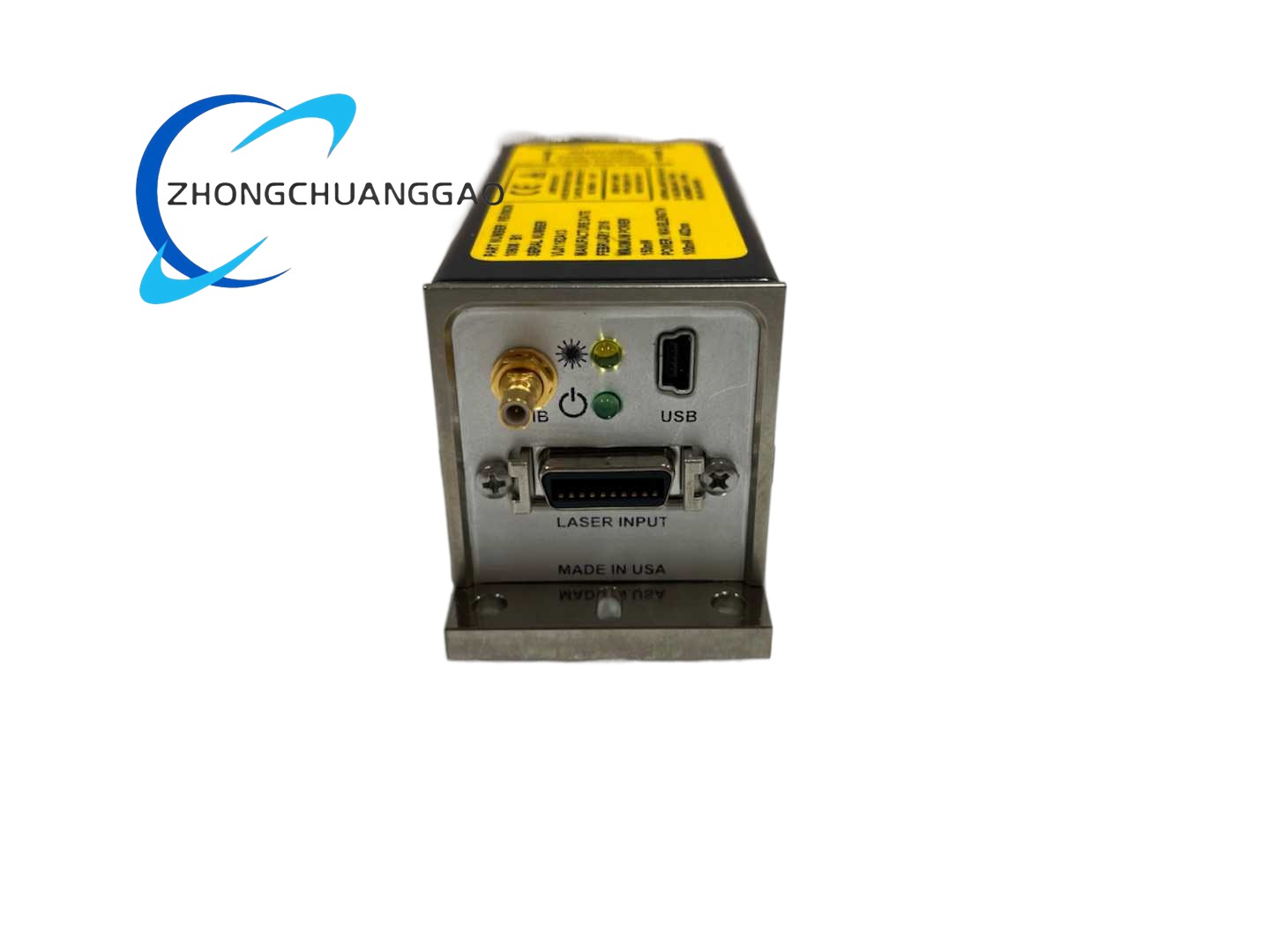

• Control Interfaces: USB or RS-232 with dedicated graphical user interface (GUI)
• Form Factor: Compact, fully integrated self-contained module

Functional Features

• Fully sealed optical cavity for long-term alignment stability and contamination resistance
• Integrated drive electronics and closed-loop thermal management
• OEM-ready design for direct integration into end-user systems
• Real-time output intensity control via analog or digital control signals
• Software-based configuration, monitoring and calibration via PC
• Consistent output performance over extended operating lifetime

Application Scenarios

• Medical diagnostic equipment and biomedical analysis systems
• Industrial machine vision and optical inspection systems
• Spectroscopy and analytical instrumentation
• Laser-based precision manufacturing equipment
• Scientific research and laboratory optical systems

Structural Features

• Hermetically sealed optical housing
• Integrated thermal management structure
• Robust mechanical design for industrial and medical environments
• Standardized mounting interfaces for simplified system integration

Working Principle

The STRADUS light engine uses a laser diode or solid-state gain medium within a precision-aligned optical resonator. The sealed cavity maintains stable optical alignment and isolates internal optics from environmental contaminants. Integrated drive electronics control pump current, operating temperature and modulation parameters, while the digital communication interface enables external control, configuration and performance monitoring.

Installation Requirements

• Mount on a flat, thermally conductive surface for proper heat dissipation
• Connect power supply and communication interface per manufacturer pinout specifications
• Align output beam with downstream optical components using standard optical mounts
• Allow specified warm-up time for output stabilization before critical operation

Usage Notes

• Operate within specified temperature range to maintain wavelength and power stability
• Follow applicable laser safety protocols; avoid direct eye exposure to output beam
• Clean optical windows only with approved lens cleaning materials and techniques
• Perform periodic performance verification for critical application deployments
