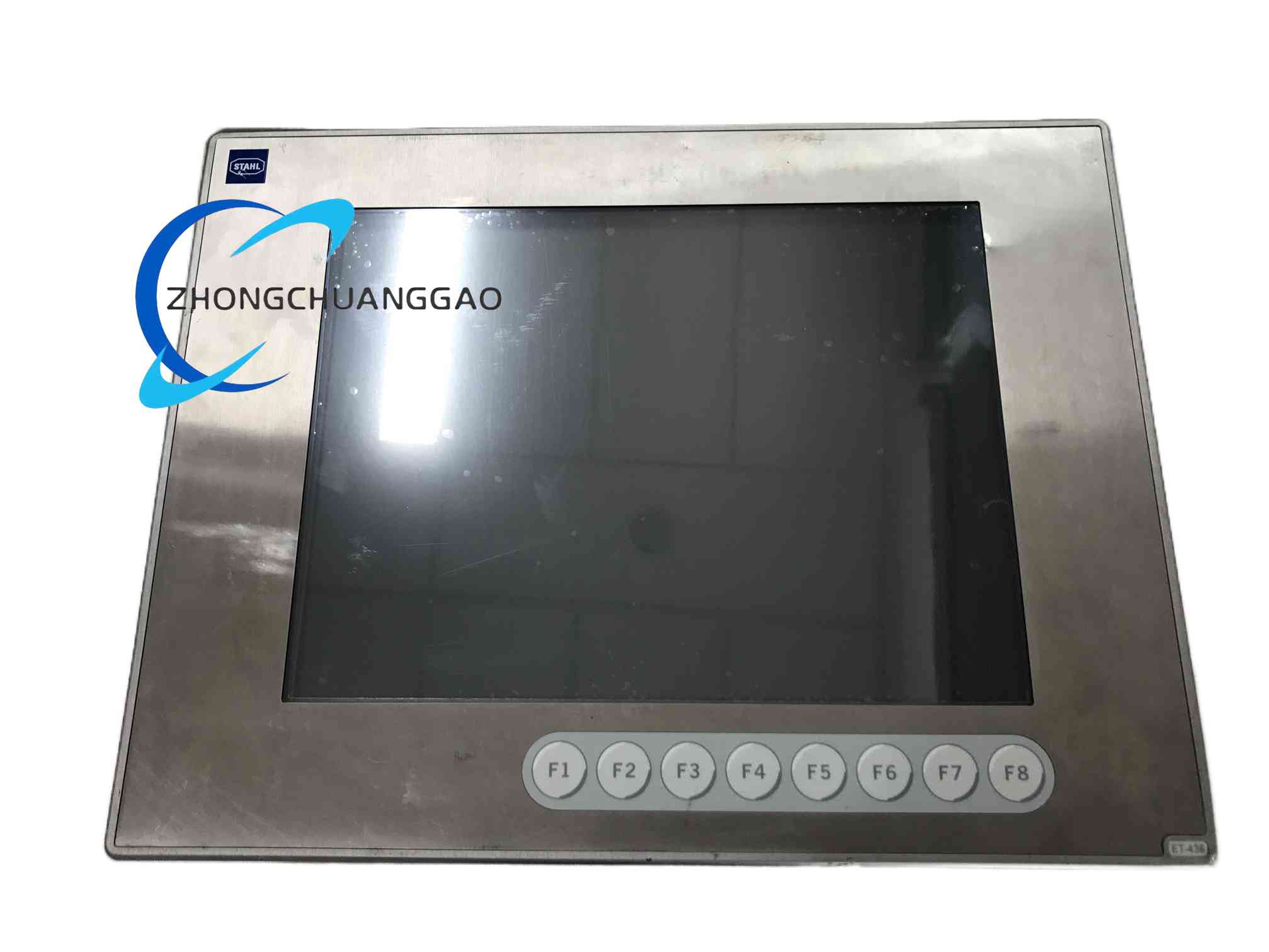

Matrox ET‑436‑A‑FX‑R2‑SR‑16GB‑NOV

Technical Specifications: Quad‑core Intel Atom E3845 processor; 16 GB system memory; 15‑inch 1024 × 768 resistive foil touch screen; 8 function keys; ATEX / IECEx certification for Zone 1, 2, 21, 22 hazardous area installation; panel‑mount mechanical form factor; wide‑range DC power input.

Functional Features: Hazardous‑area qualified computing platform; resistive touch input plus hardware function keys; onboard industrial‑grade non‑volatile storage; multiple industrial communication interfaces; fan‑less cooling architecture; system diagnostic status monitoring.

Application Scenarios: Petrochemical hazardous‑zone control rooms, offshore‑platform local operator stations, chemical‑plant field‑mount HMI stations, explosion‑risk manufacturing process monitoring panels.

Performance Parameters: Fan‑less passive cooling; operating temperature ‑20 °C ~ +55 °C; front‑panel protection rating IP65; EMC compliance for industrial‑noise heavy environments; CE and explosion‑protection certification passed.

Material Composition: Reinforced corrosion‑resistant metal enclosure; chemical‑resistant touch‑screen overlay; industrial‑grade mainboard components; sealed cable‑gland feed‑through points; high‑reliability wide‑temperature memory modules.

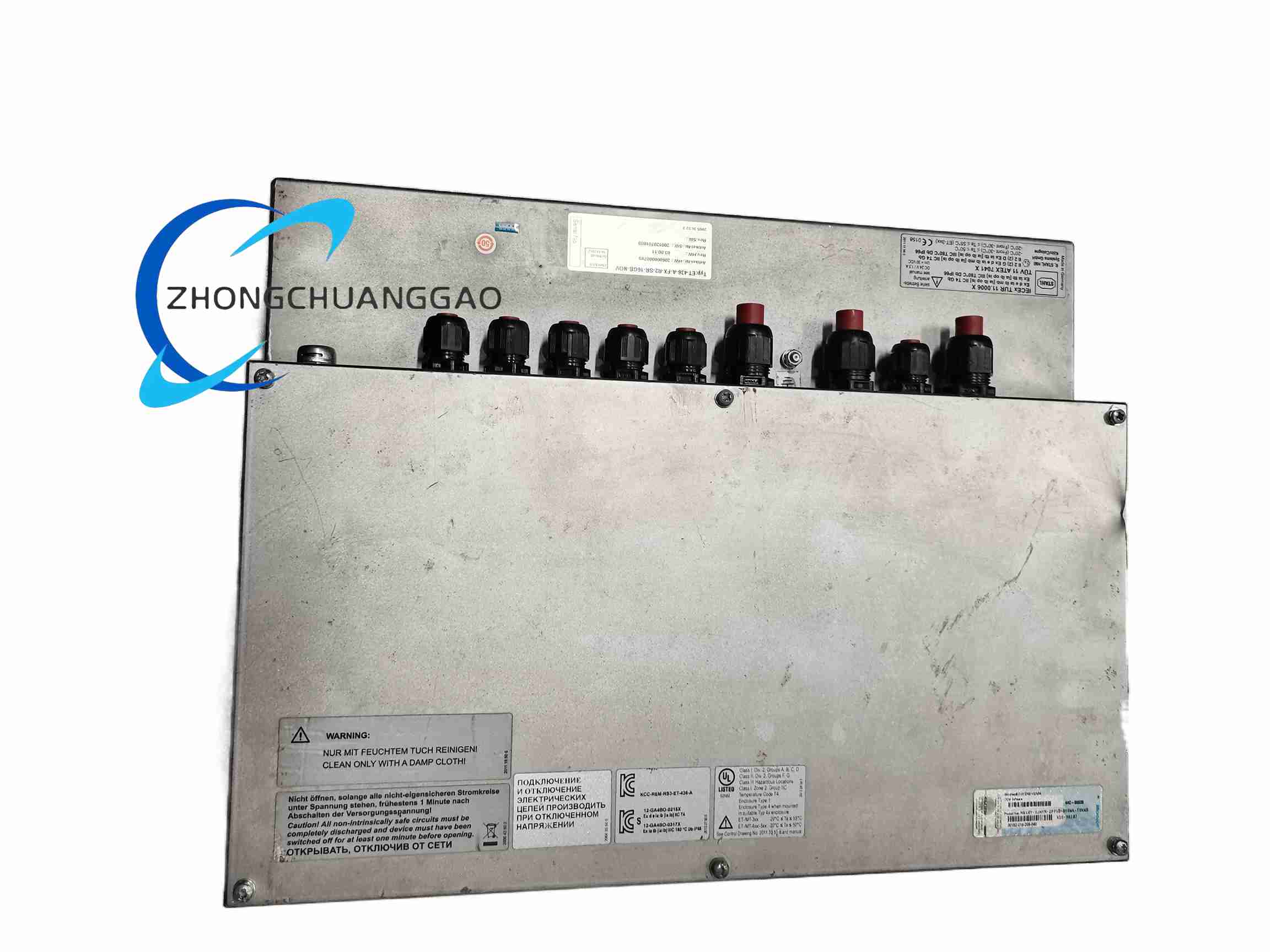

Structural Characteristics: Panel‑embedded mounting structure; fully‑sealed front‑panel assembly; rear‑side sealed cable‑entry ports; passive heat‑dissipation fin structure; external hardware function‑key array integrated into front‑panel.

Working Principle: Fan‑less industrial computing hardware executes HMI runtime software; touch screen and physical function keys convert operator interaction into input events; multiple communication interfaces exchange process data with field controllers; the sealed certified enclosure isolates internal computing electronics from hazardous zone atmosphere to prevent ignition source risk.

Installation Requirements: Certified hazardous‑area qualified personnel must complete installation; use approved explosion‑proof cable‑gland assemblies for all wiring penetrations; tighten all sealing fasteners to torque specification; implement equipotential ground bonding; reserve sufficient rear‑side space for passive heat dissipation; unused cable ports must be sealed with certified blank plugs.

Usage Precautions: Do not open rear enclosure in classified hazardous zone environment; avoid mechanical impact to touch‑screen front overlay; operate strictly within specified ambient temperature range; prevent chemical solvent contact with front‑panel membrane; system maintenance must be performed in non‑hazardous safe area environment.
