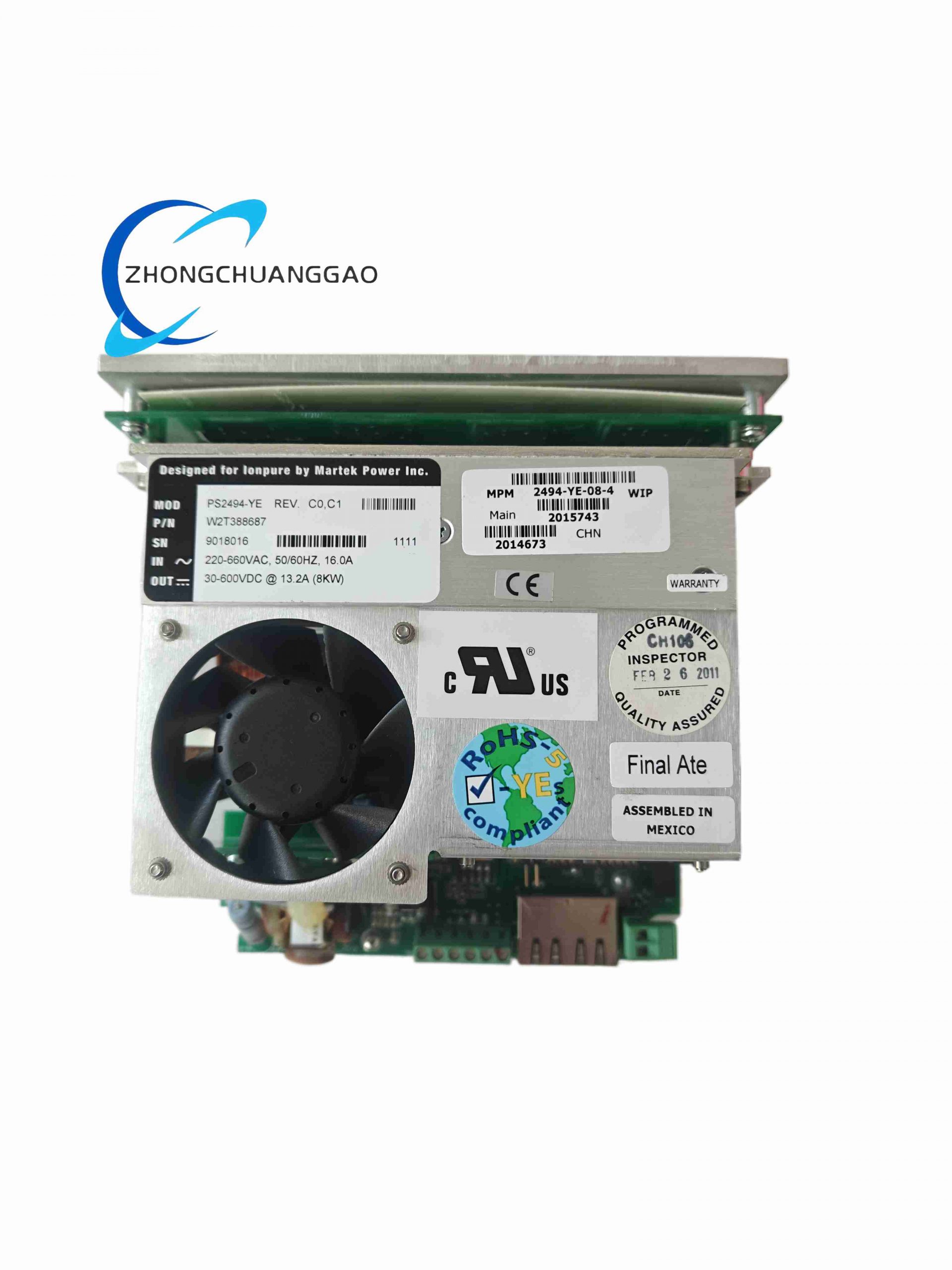

Martek PS2494-YE - Image 1
Martek PS2494-YE - Image 2
Martek PS2494-YE - Image 3
Click to enlarge

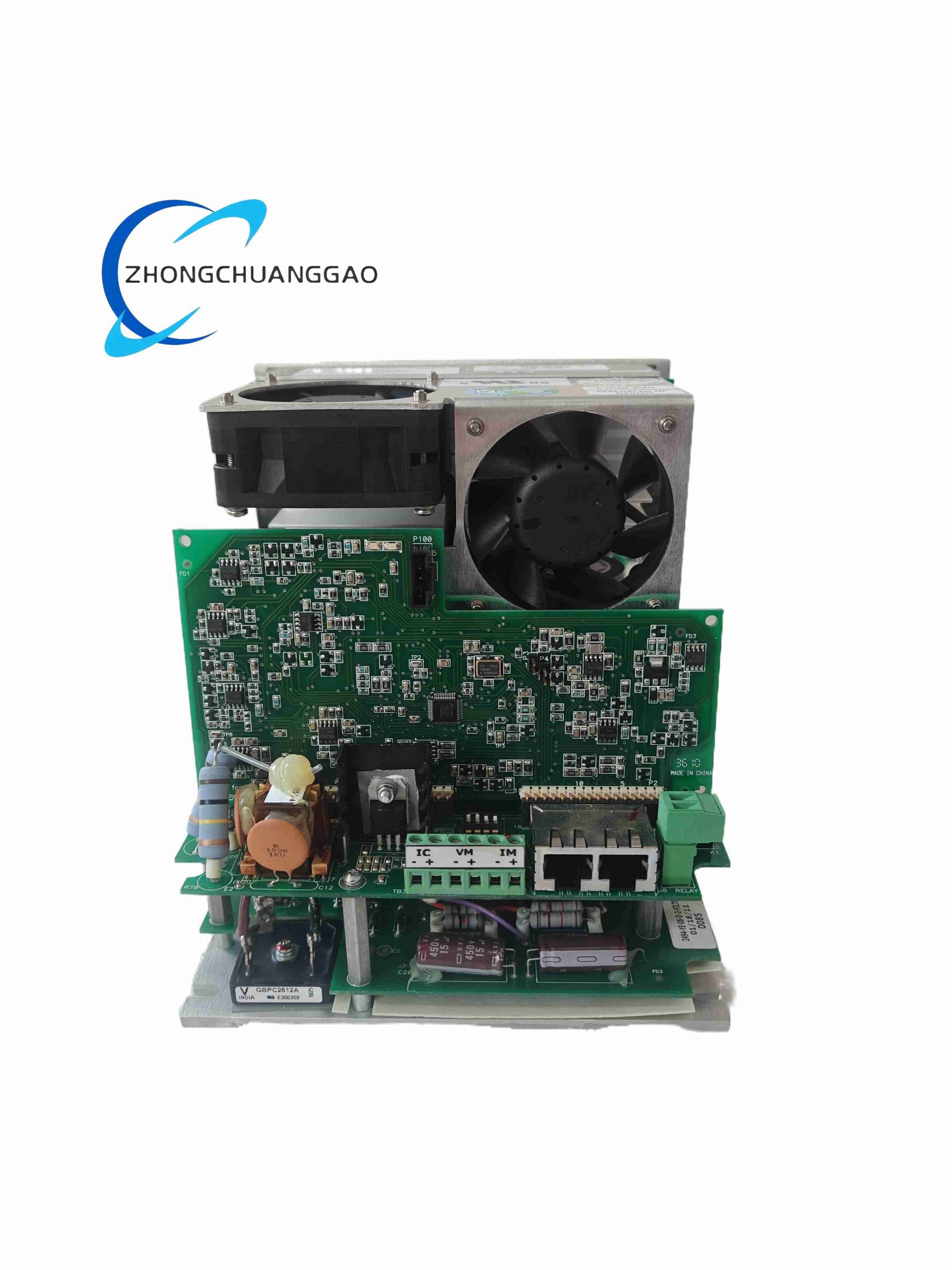

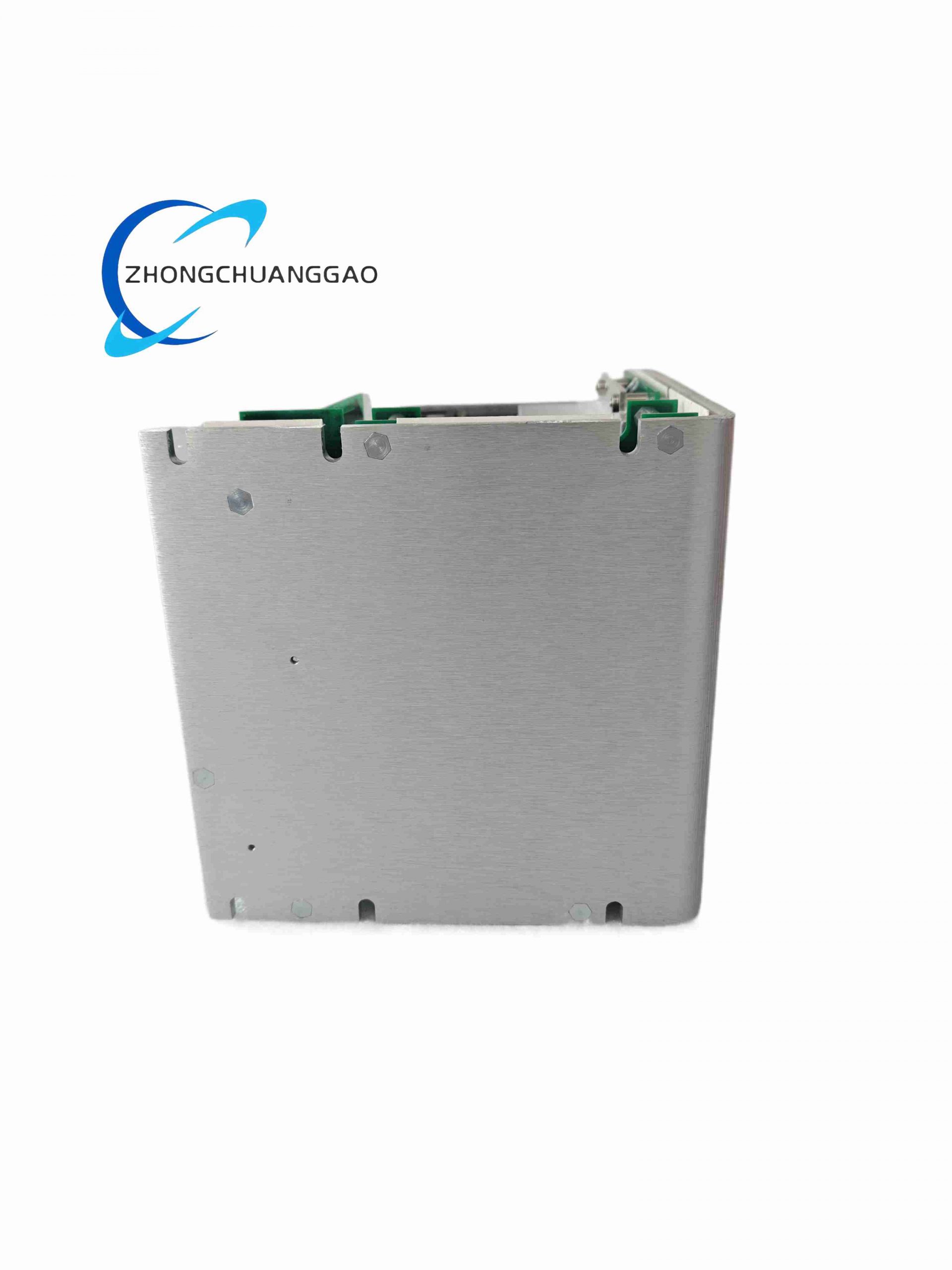

Martek PS2494-YE
Martek PS2494-YE - Image 2
Martek PS2494-YE - Image 3
Kollmorgen PRD-B040EAIZ-33
Kollmorgen PRD-B040EAIZ-33
Back to products
HIMA PS100023001
HIMA PS100023001

Martek PS2494-YE

Product Name:​ Martek Power PS2494-YE AC-DC Switching Power Supply Unit (for Ionpure EDI stacks)
Product Brief:​ Industrial high-voltage DC output switching power supply designed to drive electrodeionization (EDI) modules or similar high-voltage/low-current DC loads. Accepts wide-range 3-phase AC input.
Category:
Description
Key Technical Specifications:
  • Input Voltage:​ 220–660 VAC, 3-phase, 50/60 Hz, approx. 16 A max input current
  • Output Voltage:​ Adjustable 30–600 VDC
  • Output Current:​ Up to 13.2 A (continuous)
  • Rated Power:​ approx. 8 kW (600 V × 13.2 A)
  • Topology:​ Switch-mode PWM with active PFC
  • Voltage / Current Regulation:​ ±1% typical line/load regulation
  • Protections:​ Overvoltage lockout (OVP), overload (hiccup mode auto-recovery), short-circuit, over-temperature
  • Cooling:​ Forced air (internal fan)
  • Indicators:​ Power-on LED, fault LED, voltage/current meters on front panel (variant dependent)
  • Mounting:​ Panel / rack mount (typically 19″ subrack or cabinet-mounted)
  • Operating Temp:​ 0°C to +50°C (derate above 40–50°C depending on revision)
  • Compliance:​ UL / CE / RoHS (typical for Martek Power industrial units)
Applications:​ Powering Ionpure® continuous electrodeionization (CEDI) stacks in ultrapure water systems, electro-coagulation, electrophoresis, laboratory HV DC source.
Installation & Notes:​ Verify input wiring is correct 3-phase before energizing — wrong phasing will not damage but may cause alarm. Output is ungrounded HVDC — observe creepage & clearance. Use external fusing on AC input side. Adjust voltage/current via front panel potentiometers or remote analog signals (check revision for analog prog. capability).
