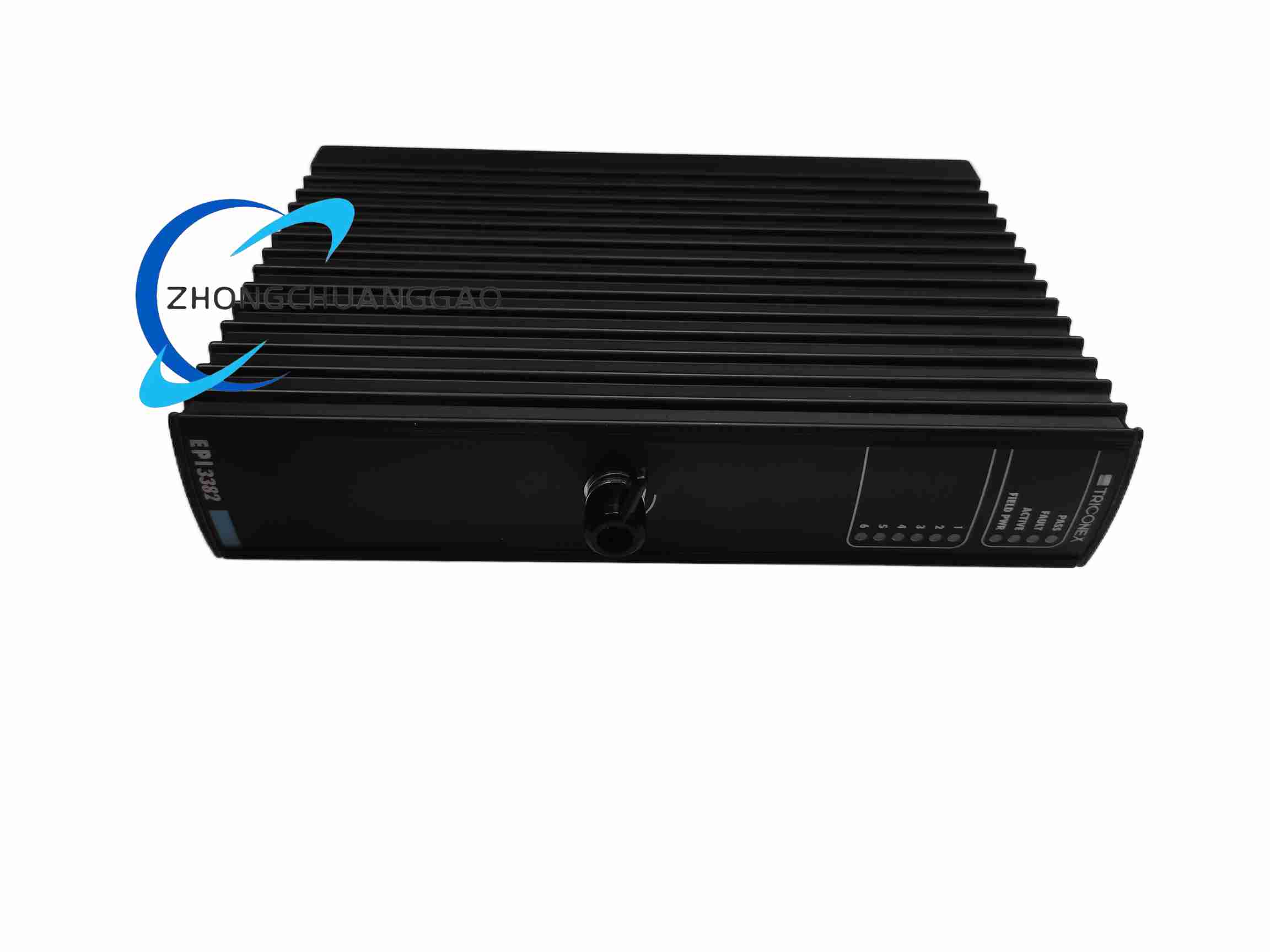

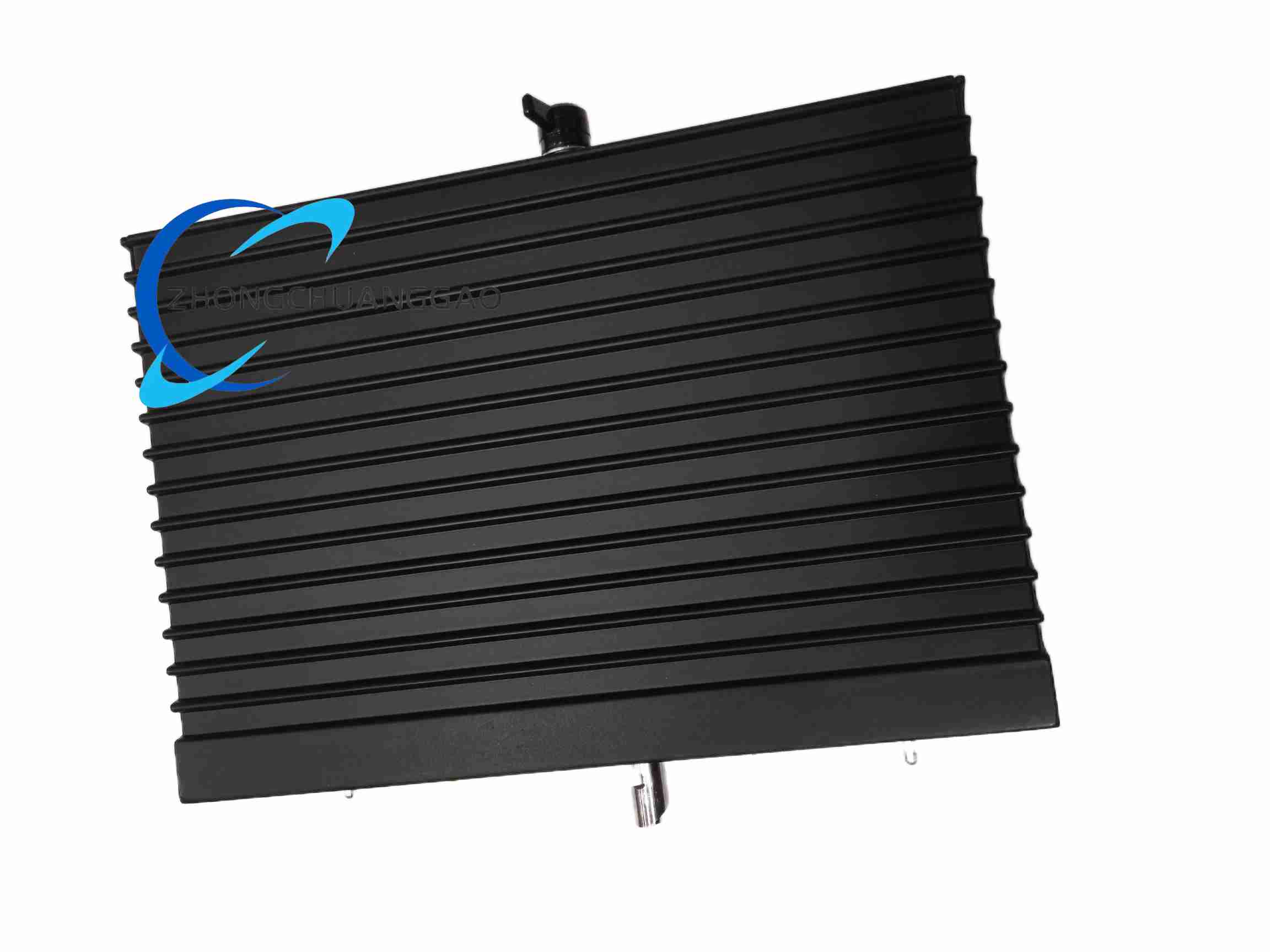

Lenze EPI3382

Technical Specifications: It has 16 digital output channels with solid-state output type. Output voltage is 24 VDC, and single-channel current rating is 2 A. Power supply is 24 VDC with an 18–36 VDC wide range, and maximum power consumption is 10 W. Operating temperature ranges from -40°C to +70°C, storage temperature ranges from -40°C to +85°C, and relative humidity ranges from 5% to 95% under non-condensing conditions. Protection class is IP20. It holds IEC 61508 SIL 3 safety certification, and dimensions are 148 mm × 230 mm × 41 mm.

Functional Features: Triple Modular Redundancy architecture ensures single-point faults do not affect system operation. It has per-channel fault diagnosis and isolation capability, and a hot-swappable design supports online module replacement. Each channel has built-in short-circuit and overcurrent protection. It supports Modbus TCP/IP and Ethernet/IP communication protocols, and provides real-time status monitoring and fault alarm functions.

Application Scenarios: It applies to emergency shutdown valve control in oil and gas industries, safety interlock systems in chemical plants, turbine protection systems in power generation, fire and gas safety control systems, and high-integrity pressure protection systems.

Performance Parameters: Output response time is less than 1 ms. Diagnostic coverage exceeds 99%. System availability reaches up to 99.999%. Channel-to-channel isolation reaches 500 VRMS. Mean time between failures exceeds 500,000 hours.

Material Composition: Module front panel is made of flame-retardant engineering plastic. PCB substrate adopts multi-layer fiberglass epoxy resin with conformal coating. Output components use industrial-grade solid-state switching devices. Connector pins adopt gold-plated copper alloy.

Structural Features: It adopts a standard rack-mount card slot structure, front-facing status indicators for each channel, a guide rail and locking mechanism for hot-swap operation, and a multi-layer circuit board design with independent redundant channels.

Working Principle: The module integrates three independent output channels that execute the same control logic simultaneously. An internal voting circuit compares output states from the three channels and outputs the final control signal based on majority voting. Each channel performs independent self-diagnosis, and faulty channels are automatically isolated without affecting overall output, ensuring continuous and reliable safety control.

Installation Requirements: Install the module only in designated Triconex system rack slots. Ensure system power is in a safe state before non-hot-swap installation. Verify proper alignment of backplane connectors during insertion. Tighten the module locking screw after installation, and use shielded cables for field wiring with single-end grounding.

Precautions for Use: Only trained and authorized personnel may perform module replacement. Do not remove or install modules during non-safety-permitted periods. Store spare modules in anti-static packaging. Avoid touching circuit board components directly to prevent electrostatic damage, and perform regular functional tests to verify safety performance.
