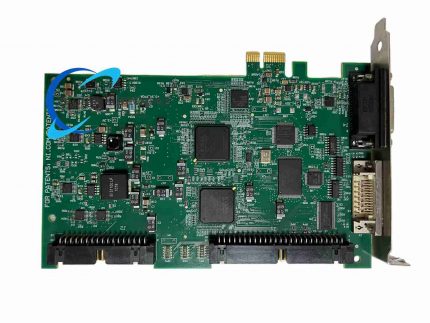

NI PCIe-1427
NI PCIe-1427
Back to products
Powec PCU10.24
Powec PCU10.24

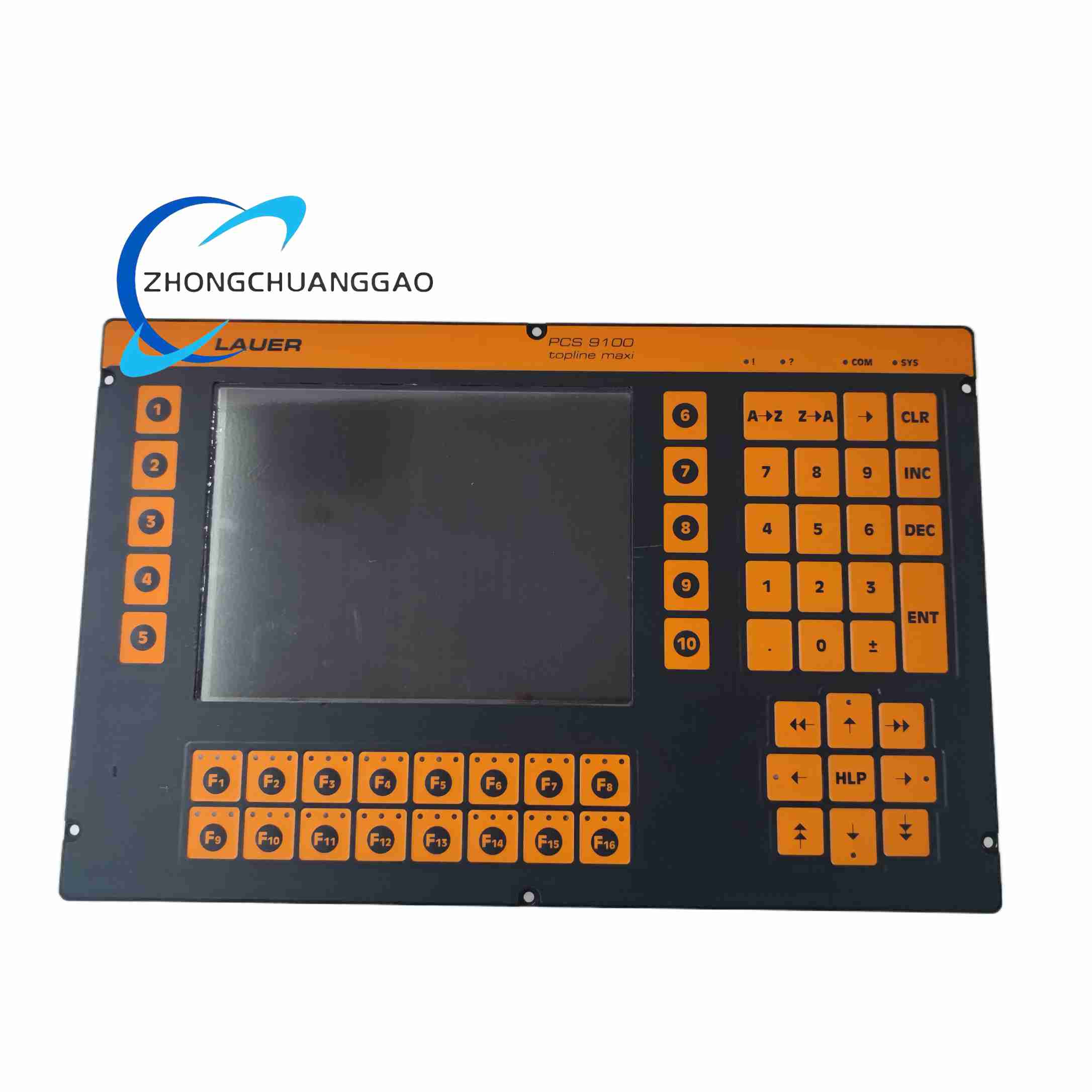

LAUER PCS9100

Product Name:​ LAUER PCS9100 Graphic Operator Panel / Industrial Console
Product Introduction:​ Modular graphical text-and-2D operator console from Systeme Lauer PCSmaxi family, providing machine-level HMI with soft keys, recipes and PLC communication.
Category:
Description
Technical Specifications:
  • CPU:​ 32-bit RISC processor
  • Memory:​ 4 MB Flash, 4 MB RAM
  • Display:​ Graphic LCD, 5.7 in class, 2D text/graphics layout
  • Keypad:​ Membrane function keys F1–F16, navigation
  • Supply:​ 24 V DC (19–33 V DC tolerance)
  • Current:​ ~250 mA at 24 V
  • Communication:​ RS-232, RS-485, Ethernet, MPI/PROFIBUS with option module
  • I/O Capacity:​ Logical up to 512 digital, 32 analog tags in application layer
  • Front Protection:​ IP65
  • Rear Protection:​ IP20
  • Mounting:​ Panel cutout flush mount
  • Dimensions:​ Approx. 265 × 85 mm bezel class (variant-dependent 186 × 106 × 58 mm body)
  • Temperature:​ 0 °C to 50 °C operating, -25 °C to 70 °C storage
  • EMC:​ IEC 801-4 compliant
    Functional Features:​ Multi-window soft-key screens, recipe storage, alarm log, printer port, PCSPRO configuration software, background PLC driver polling.
    Application Scenarios:​ CNC machine operator terminal, packaging line HMI, legacy Siemens/Allen-Bradley panel replacement, building automation local control.
    Working Principle:​ RISC firmware runs Lauer HMI project, polls PLC via serial/fieldbus, renders widgets to graphic LCD, returns key events as PLC variables.
    Installation Requirements:​ 24 V DC regulated supply, cutout panel thickness compatible with gasket, rear clearance for ribbon/comm cables.
    Usage Notes:​ Not a PC with OS—project must be built in PCSPRO; 4 MB RAM limits screen count; avoid direct sun on LCD; IP65 valid only when gasket seated.
