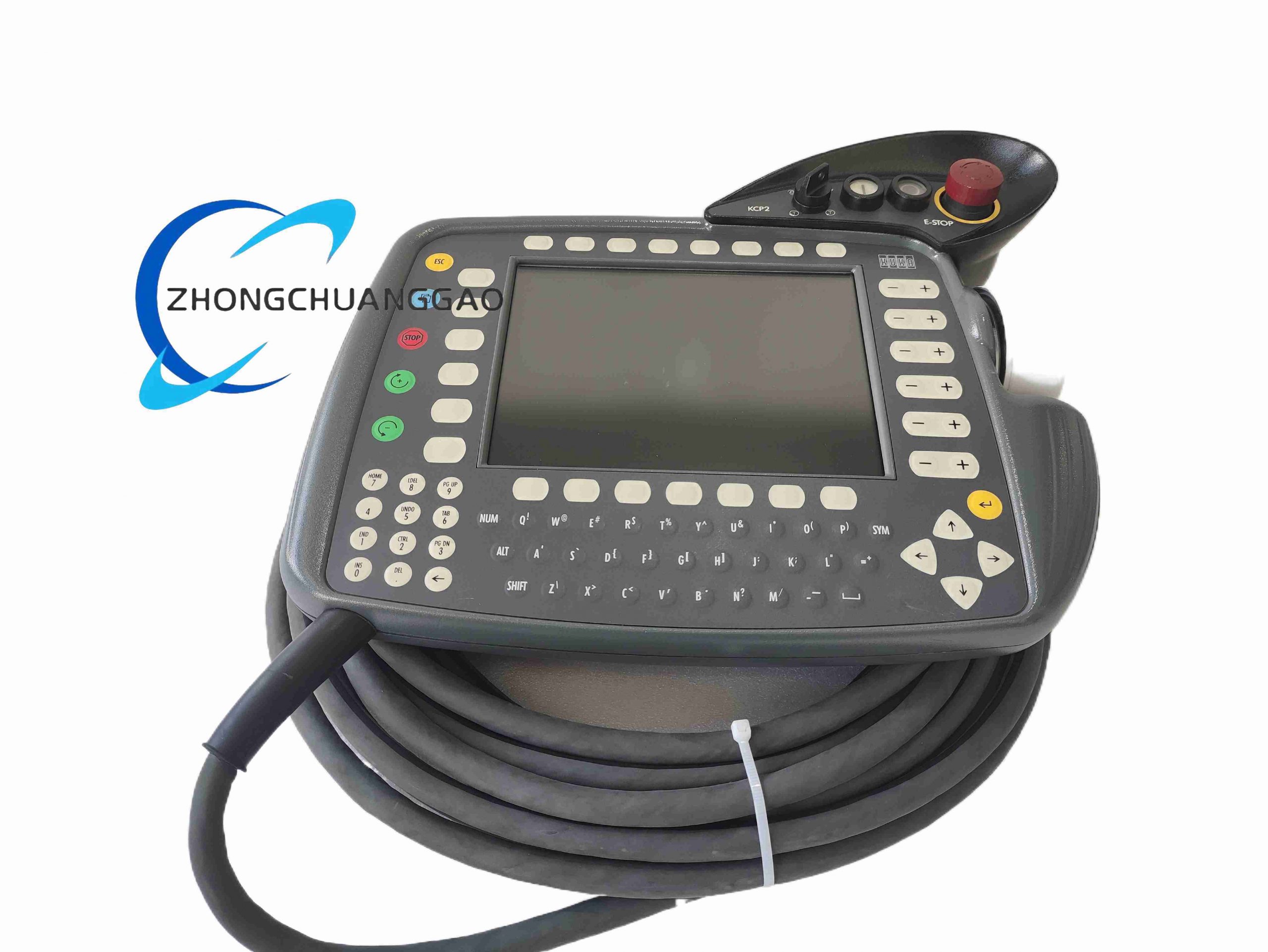

KUKA KCP2 00-130-547 - Image 1
Click to enlarge
Placeholder
Pepperl+Fuchs KCD2-SR-EX2
Back to products
Pepperl+Fuchs KFD2-STC4-1
Pepperl+Fuchs KFD2-STC4-1

KUKA KCP2 00-130-547

Product Introduction:​
The KUKA KCP2 00-130-547 is the standard handheld operator panel (teach pendant) for KUKA robot controllers KR C2, KR C2 ed05, and KR C3. It provides the human-machine interface for robot programming, jogging (manual movement), program editing, I/O monitoring, and emergency stop functions. Some references also note compatibility with early KR C4 Compact in specific retrofits, but primary target is KR C2/C3.
Category:
Description
Technical Specifications:
  • Manufacturer:​ KUKA Roboter GmbH
  • Model / Part No.:​ KCP2 / 00-130-547
  • Display:​ 8-inch color TFT LCD, 640 × 480 (VGA) resolution, backlit
  • Input Devices:​ Membrane keypad (F1–F10 function keys, numeric/alpha keys), 6D mouse (space mouse) for 6-axis jog, mode selector key switch
  • Safety Elements:​ 3-position enabling switch (deadman), dual-channel E-Stop button, enabling key
  • Operating Modes:​ T1 (Manual Reduced Speed), T2 (Manual Full Speed), AUT (Automatic)
  • Communication Interface:​ CAN bus to controller + serial link for display; 9-pin D-Sub + RJ45 (for archiving/program backup in some variants)
  • Supply Voltage:​ 24 V DC (supplied from robot controller via pendant cable)
  • Current Draw:​ ~0.5 A typical
  • Protection Rating:​ Front panel IP65; rear IP20 (indoor industrial use)
  • Ambient Temperature:​ 0 °C to +50 °C (operating); -20 °C to +60 °C (storage)
  • Humidity:​ 5 %–95 % non-condensing
  • Dimensions (approx.):​ 280 × 180 × 80 mm (W×H×D including handle)
  • Weight:​ ~3.2–4 kg
  • Certifications:​ CE, cULus, EN ISO 10218-1 compliant
Functional Features:
  • SmartPAD-style Windows-based KUKA interface (KRC2 software)
  • Real-time display of robot position (Cartesian / Axis), tool data, base data
  • Program create/edit/copy/delete and online modification
  • Archive/restore projects to floppy (legacy) or PC via serial/Ethernet
  • I/O status display and forced setting (with appropriate login level)
Structure & Material:
  • High-impact ABS/PC blend front fascia (chemical-resistant membrane overlay)
  • Aluminum-reinforced handle / enclosure
  • Spiral shielded pendant cable (typically 10 m or 15 m)
Installation & Usage Notes:
  • Connect only to compatible KUKA controller MFC (Motion Function Card) interface
  • Never operate with damaged enabling switch or E-Stop circuit
  • Clean membrane with mild isopropyl alcohol; avoid abrasive cleaners
  • Store pendant in holder when not in use to prevent cable strain
Applications:​ Automotive body welding, painting, assembly, material handling, palletizing — all using KUKA KR C2/KR C3 controlled robots.
