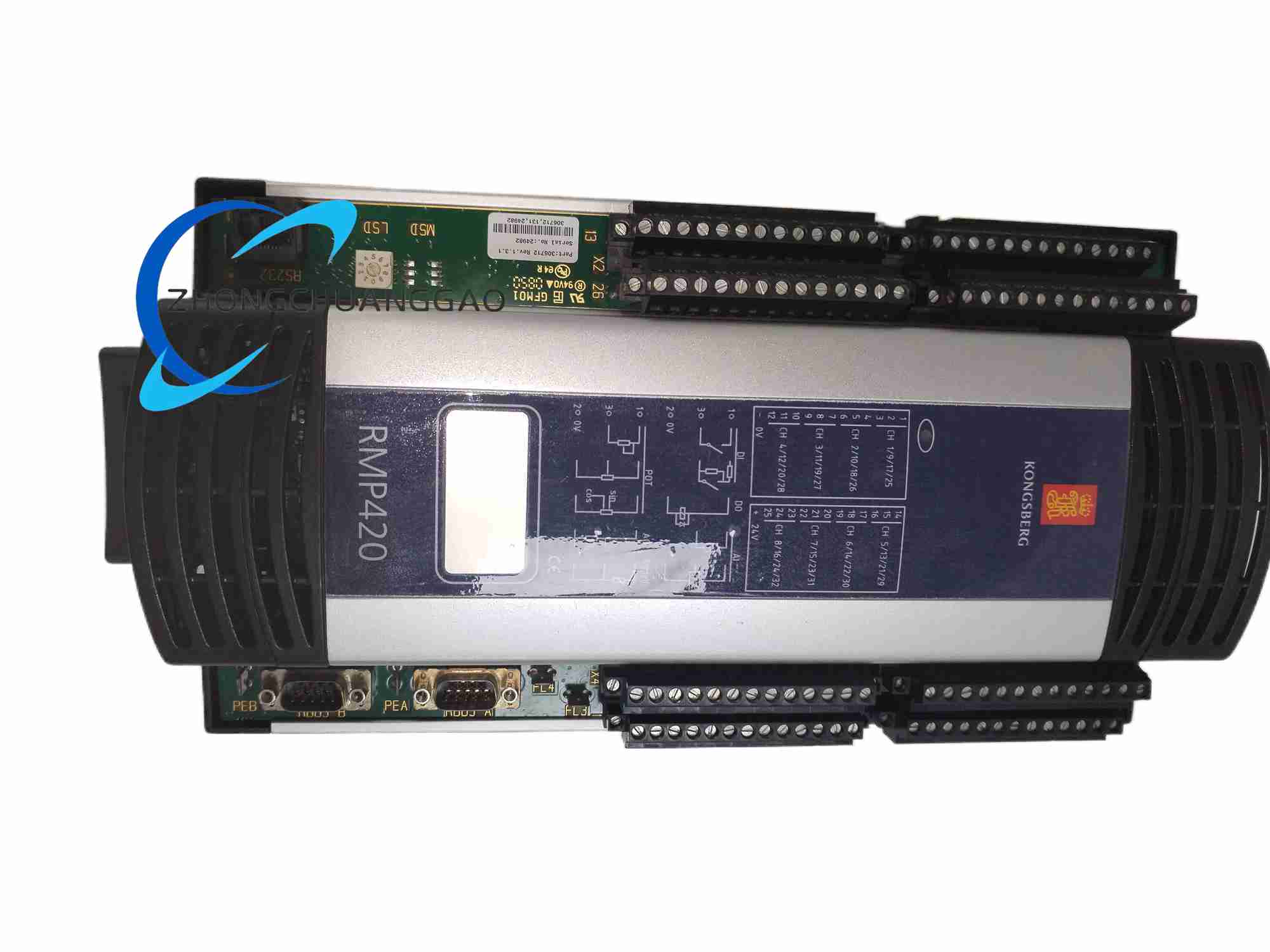

KONGSBERG RMP420

  • Product Name:​ RMP420 remote multipurpose I/O module (Alarm Monitoring & Integrated Control)
  • Product Introduction:​ 32-channel software-configurable solid-state I/O for marine alarm/control systems with Ex Zone 2 certification and dual redundant RBUS interface to RCU hosts.
Category:
Description
  • Technical Specifications:
    • 32 multipurpose channels (AI/AO/DI/DO, RTD 2/3-wire, 2× pulse/encoder)
    • DI: 24 VDC, max 4 mA, off <0.5 mA, on >3 mA, Namur/PNP/NPN compliant
    • Loop driver: short-circuit proof high-side, trip ~1.4 A at 20 °C
    • Accuracy: ±0.4% FS analog, ±0.5 °C RTD resolution
    • Power: 24 VDC (18–31.2 V), ~10 W typical
    • Comms: 2× 9-pin D-Sub RS-485 RBUS, galvanic isolated
    • Hazardous area: Ex Zone 2, ATEX/IECEx, IEC 60079-0/-7
    • Mechanical: 355×158×87 mm, ~1.35 kg, DIN rail vertical, IP20
    • Temp: -15 to +70 °C op, -25 to +70 °C storage, 98% RH
    • Watchdog: 100 ms–65 s configurable, HW fail-safe min 65 ms
  • Functional Features:​ Online channel reconfiguration, soft/hard fail-safe, automatic faulty-channel recovery, loop monitoring, status LED, FW upgrade without power down.
  • Application Scenarios:​ Ship alarm monitoring, integrated control, oil/gas platform edge I/O, chemical tanker valve/sensor nodes.
  • Installation Requirements:​ Vertical DIN rail in ventilated cabinet, 2.5 mm² terminals torqued 0.4–0.5 Nm, Zone 2 grounding.
  • Usage Notes:​ Do not exceed 31.2 VDC; replace after 100 k operations only for relay kin; verify ATEX label before hazardous deployment.
