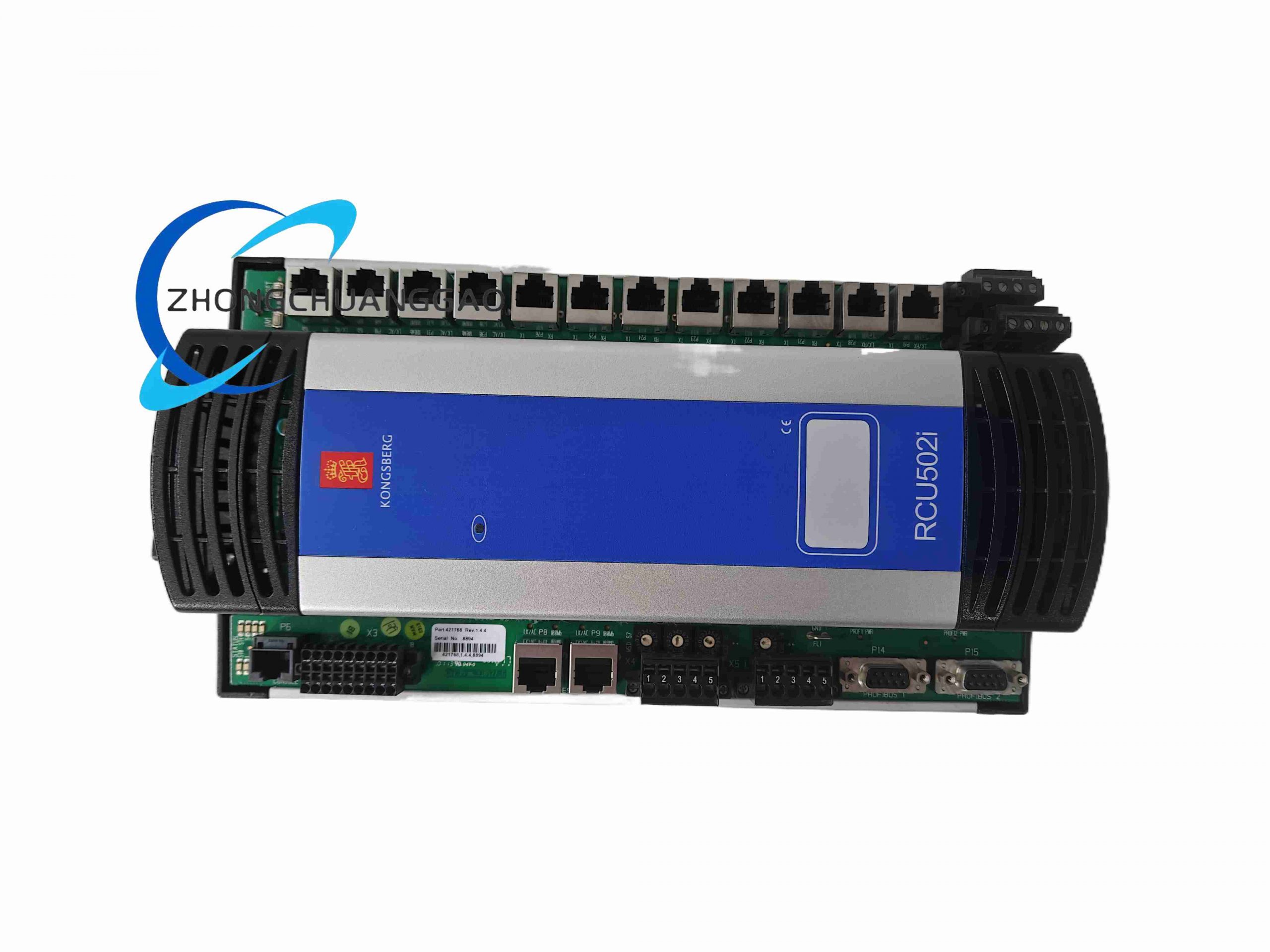

Kongsberg Maritime RCU502I - Image 1
Kongsberg Maritime RCU502I - Image 2
Click to enlarge
Kongsberg Maritime RCU502I
Kongsberg Maritime RCU502I - Image 2
Bosch Rexroth MSK040C-0600-NN-M1-UG1-NNNN R911306061
Bosch Rexroth MSK040C-0600-NN-M1-UG1-NNNN R911306061
Back to products
Kongsberg Maritime RDIOR400
Kongsberg Maritime RDIOR400

Kongsberg Maritime RCU502I

  • Product Name:​ RCU502I Remote Control Unit (Intelligent Remote I/O & Logic Controller)
  • Part Number:​ 421768
  • Processor:​ Dual ARM Cortex-R5 (lockstep mode) @ 800 MHz — SIL 2 capable
  • I/O Capacity (typical):​ 16 × Digital Inputs 24 V DC (opto-isolated), 8 × Analog Inputs 4–20 mA / ±10 V (12-/16-bit), 8 × Relay Digital Outputs (5 A, NO/NC)
Category:
Description
  • Scan Time:​ ≤ 10 ms (digital logic), ≤ 50 ms (analog)
  • Communication:​ CAN bus (Kongsberg proprietary SPBus/K-Bus), optional Modbus RTU, PROFIBUS DP-V1, Ethernet (IEC 61162-450 / NMEA 0183 support)
  • Power Supply:​ 24 V DC (18–36 V), redundant terminals, reverse polarity & overvoltage protected
  • Isolation:​ 1.5 kV AC galvanic isolation I/O ↔ logic
  • Environmental:
    • Operating Temp.:​ –25 °C to +70 °C
    • Humidity:​ 5–95 % RH non-condensing
    • Vibration/Shock:​ IEC 60945compliant (5 g shock / 2.5 g vibration)
    • Protection:​ IP66 front / IP22 rear (marine-grade aluminium housing)
  • Certification:​ DNV-GL, ABS, Lloyd’s, ATEX/IECEx Zone 2 (II 3G Ex ec IIC T4 Gc)
  • Application:​ Propulsion thruster control, ballast pump control, engine room monitoring, emergency shutdown (ESD) systems on vessels & offshore platforms.
  • Installation:​ Bulkhead or DIN rail mount; connect SPBus to K-Chief main station; configure I/O mapping in K-Config software; ensure proper ship-ground connection.
