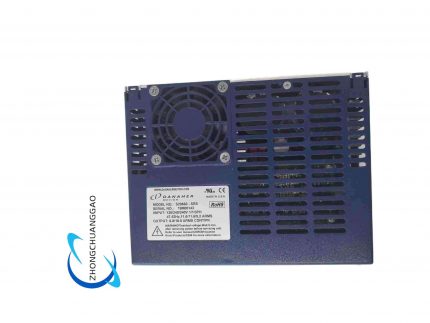

KOLLMORGEN S20660-SRS
KOLLMORGEN S20660-SRS

KOLLMORGEN S20260-SRS

Product Name:​ Kollmorgen S200 Series Digital Brushless Servo Drive, 6 A Continuous
Product Introduction:​ Fully digital compact servo amplifier for rotary and linear brushless motors. The S20260-SRS is the 120/240 VAC or 20–90 VDC input variant with 6 A RMS continuous and high peak current.
Category:
Description
Technical Specifications:
  • Input:​ 85 – 265 VAC 1φ (47–410 Hz) or 120 – 375 VDC
  • Continuous Output:​ 6.0 A RMS (sine mode)
  • Peak Output:​ ~12 A (1 s)
  • Current Loop Bandwidth:​ 3 – 5 kHz
  • Velocity Loop Bandwidth:​ 800 Hz
  • Feedback:​ 24-bit resolution support; resolver, incremental encoder, EnDat, Hiperface, BiSS-C via option cards
  • Control Modes:​ Torque, velocity, position, electronic gearing
  • Communication:​ SynqNet via RJ45 (SRS suffix = SynqNet equipped), optional CANopen/indexing
  • Ride-through:​ >18.5 AC-line cycles at 240 VAC
  • Dimensions:​ Approx. 65 × 106 × 72.5 mm
  • Protection:​ Over-current, over-voltage, under-voltage, over-temp, short-circuit
    Functional Features:​ Electronic motor nameplate plug-and-play with AKM motors, auto-tuning, notch filter, oscilloscope trace via WorkBench
    Applications:​ PCB handlers, labeling machines, medical pump axes, small CNC
    Installation:​ Cabinet IP20 environment, 0–45 °C (derate to 55 °C), vertical mounting with 10 mm side clearance
    Notes:​ SRS = SynqNet. Do not apply 3-phase 400 VAC unless transformer stepped down; bus capacitance limits regen resistor 25–50 Ω.
