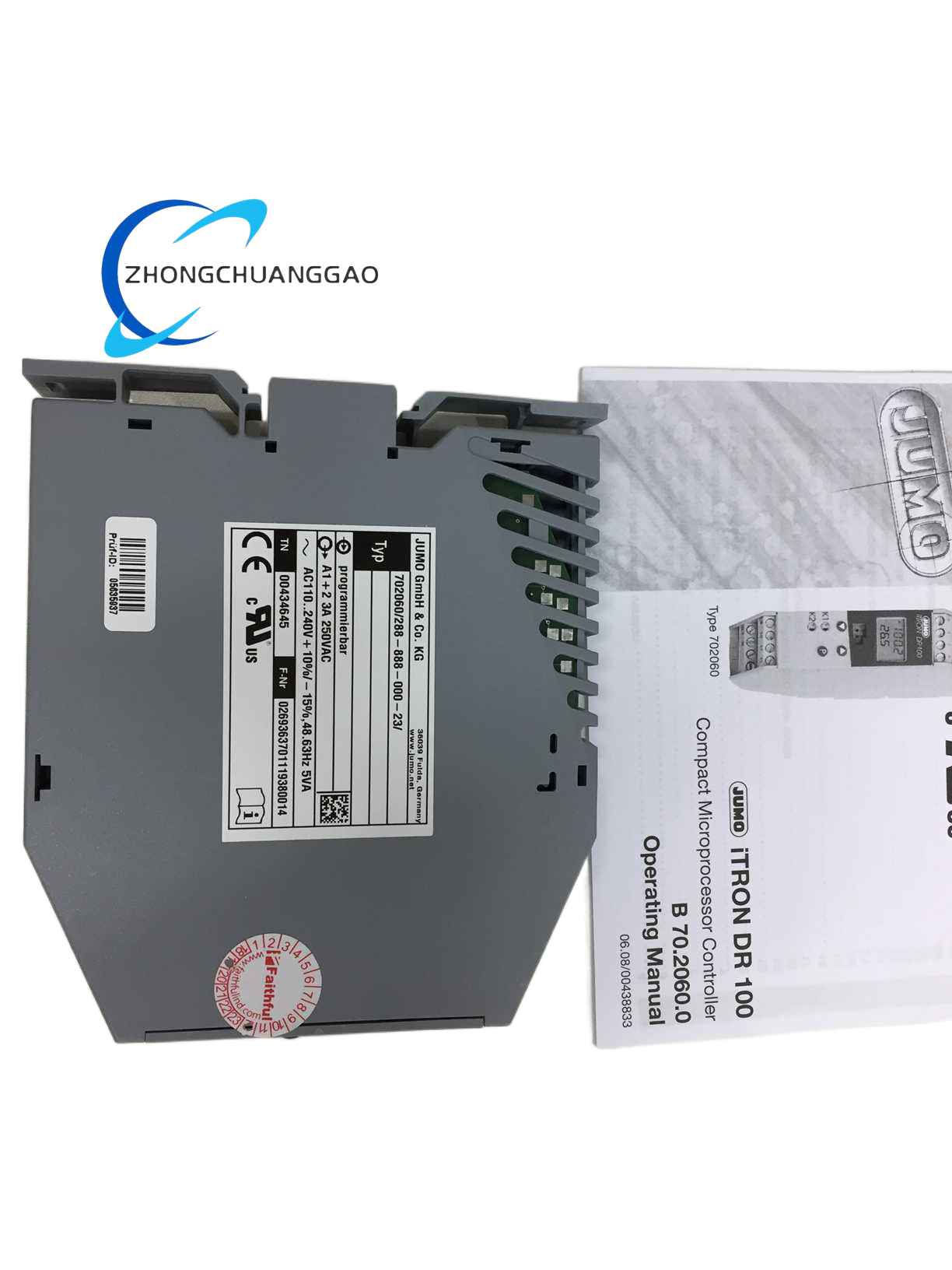

JUMO 702060288‑888‑000‑23

Technical Specifications

• Model: 702060288‑888‑000‑23
• Mounting Method: DIN‑rail 35 mm standard rail mounting
• Input Types: Thermocouple, RTD Pt100/Pt1000, 0‑10 V analog signal
• Output Modes: Relay contact output, SSR drive output, analog 0‑10 V output
• Control Mode: On‑Off control, PID self‑tuning control
• Power Supply: 110‑240 VAC
• Protection Class: IP20 for housing
• Dimensions: 109 × 117.8 mm

Functional Features

• Multiple‑type sensor signal universal input
• PID auto‑tuning function for temperature control
• Multi‑mode output selection adapt to different actuators
• Parameter lock‑out protection function
• LED digital value display
• Support alarm threshold configuration

Application Scenarios

Heating furnace temperature control, food‑processing equipment temperature regulation, plastic‑processing machinery, HVAC heating‑cooling system, chemical small‑reactor temperature control.

Performance Parameters

High‑precision temperature measurement; PID self‑tuning optimizes control parameters; stable output under long‑time continuous operation; support upper‑lower‑limit alarm trigger.

Material Composition

Flame‑retardant plastic housing; internal measurement‑control circuit board; relay output component; front‑panel operation keys and digital display tube.

Structural Characteristics

Standard DIN‑rail slim housing; front‑panel key‑operation and digital display window; upper‑lower‑side wiring terminal block; rail‑mount elastic buckle structure.

Working Principle

Collect temperature‑sensor signal, compare measured value with set target value, calculate output quantity through built‑in PID algorithm, drive heater or cooling executing component to realize closed‑loop temperature adjustment; trigger alarm when measurement value exceeds set threshold.

Installation Requirements

Clip onto standard 35 mm DIN‑rail inside electrical cabinet; tighten wiring‑terminal‑block screws; separate sensor signal cable from power high‑voltage cable; power‑supply voltage conform to nameplate specification.

Usage Notes

Do not install in high‑humidity condensation environment; set correct sensor‑type parameters according to field‑installed sensor; lock‑out parameters after completing commissioning; regularly check terminal‑block wiring for looseness.
