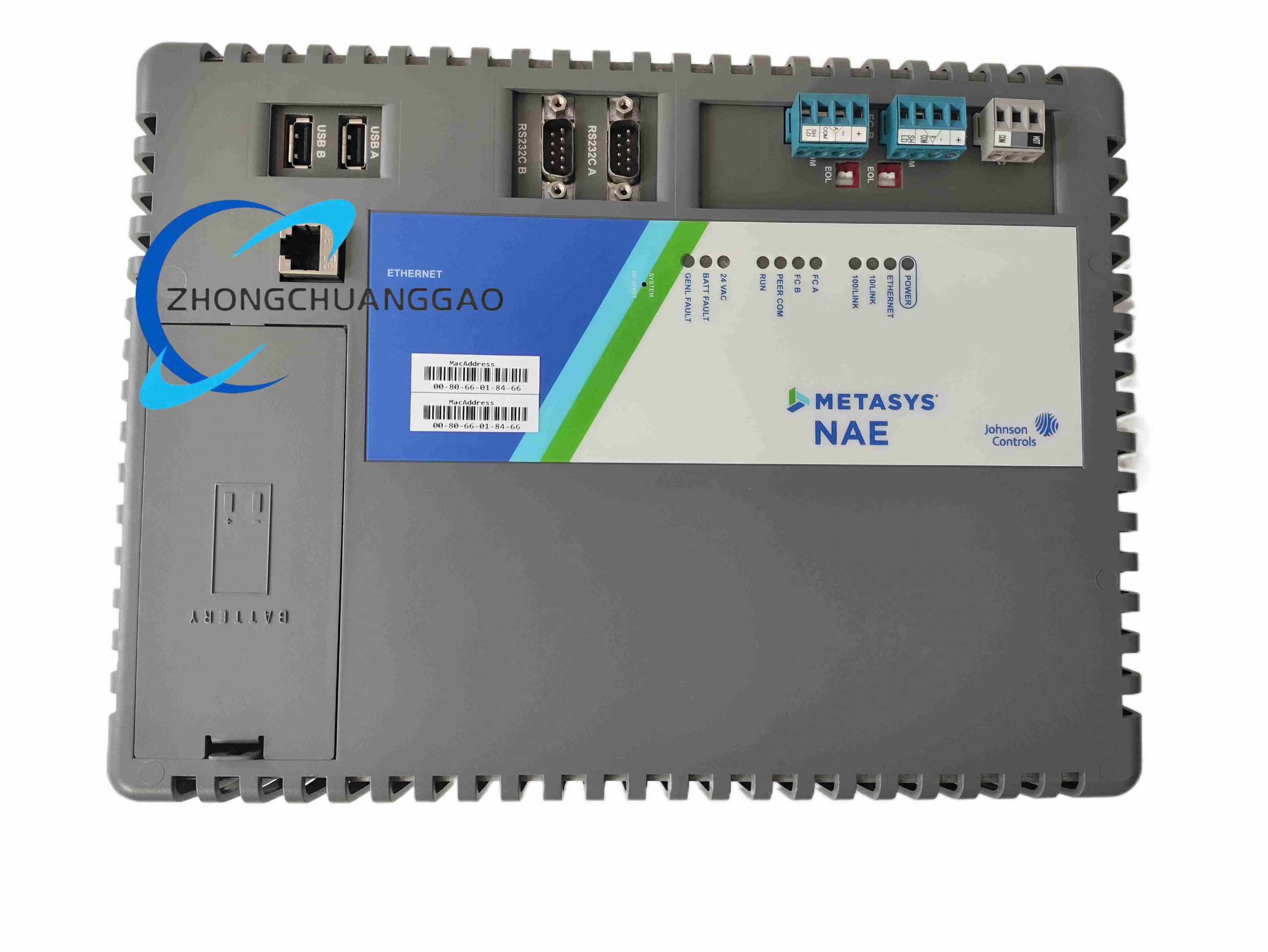

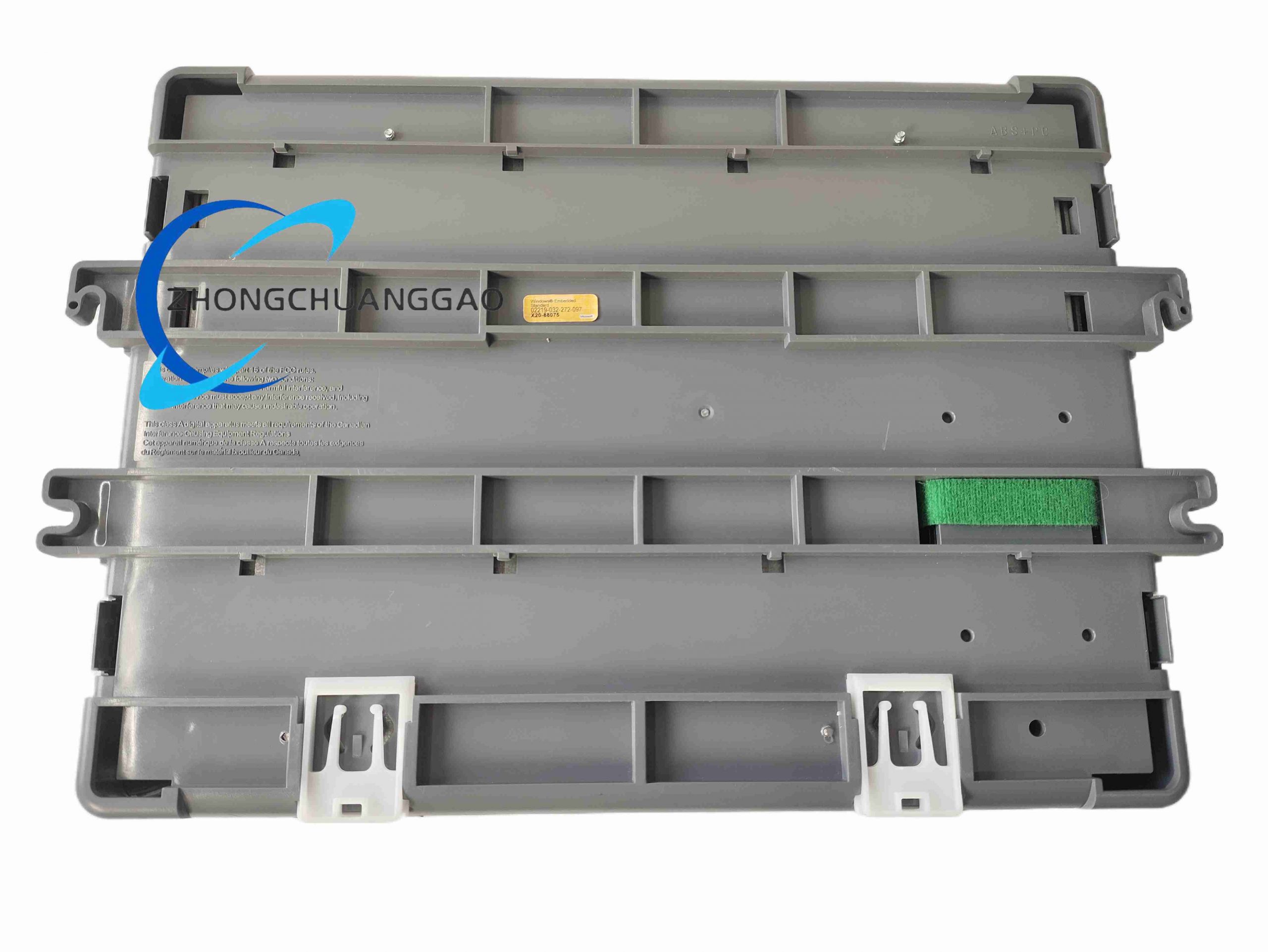

Johnson Controls MS-NAE5510-3

Product Name:​ Metasys® Network Automation Engine (NAE) – Model 5510 Series
  • Brief Introduction:​ The NAE5510 is the core processing and communications engine of the Johnson Controls Metasys Building Automation System (BAS). It provides real-time control, scheduling, alarming, trending, and web-based supervision of HVAC, lighting, and other building systems.
Category:
Description
  • Technical Specifications:
    • Processor:​ Embedded RISC / x86-class processor (133 MHz typical)
    • Memory:​ 2 GB SDRAM + 16 GB Flash / eMMC (model-dependent)
    • Power Supply:​ 24 V AC (20–30 V AC), 50/60 Hz, approx. 50 VA
    • Network Ports:​ 1 × 10/100/1000 Mbps Ethernet (RJ-45, BACnet/IP); 1 × LonWorks port (78 kbps TP/FT-10)
    • Serial Ports:​ 2 × RS-232, 2 × RS-485 (configurable baud rate)
    • USB:​ 2 × USB 2.0 ports
    • Supported Protocols:​ BACnet/IP, BACnet MS/TP, LonWorks (LON), Modbus RTU/TCP, OPC
    • I/O Capacity:​ Up to several thousand points (typically 300+ local expandable via field buses)
    • Operating Temp.:​ 0 °C to +40 °C (storage –40 °C to +85 °C); 0–90% RH non-condensing
    • Enclosure:​ Metal chassis, DIN-rail or panel mount; IP20 (install inside cabinet)
    • Dimensions (approx.):​ 300 × 200 × 100 mm; Weight ≈ 2.9 kg
  • Features:​ Embedded web server for direct browser access; alarm management & email notification; time schedules & trend logs stored locally; multi-protocol gateway capability.
  • Applications:​ Office towers, hospitals, campuses, airports — central plant & zone-level BAS supervision.
  • Installation Notes:​ Mount vertically in ventilated enclosure; connect 24 V AC before Ethernet; configure IP via JCI configuration tool (Site Director); ensure firmware compatibility with Metasys version.
