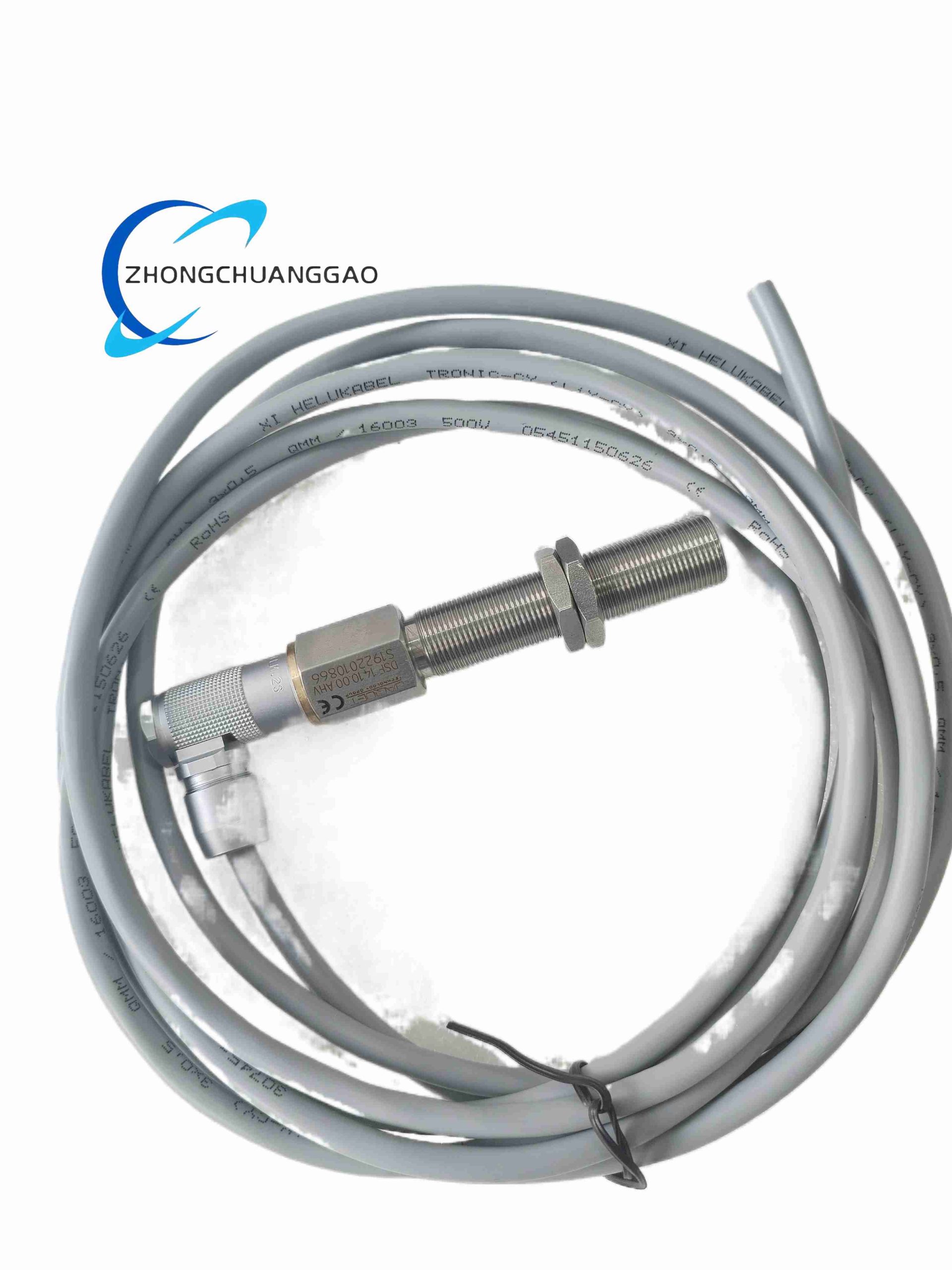

JAQUET DSF1410.00 AHV

  • Product Name: Hall Effect Speed Sensor
  • Product Introduction: The Jaquet DSF1410.00 AHV is an ATEX/EX-certified​ single-channel Hall effect speed sensor designed to measure rotational speed of ferrous targets (gears, sprockets) in hazardous areas.
Category:
Description
  • Technical Specifications:
    • Measuring Range: 0.1 to 12,000 RPM
    • Accuracy: ±0.5%
    • Supply Voltage: 8-30 VDC​ (typical for AHV variant)
    • Output Type: Push-pull (Vo) Imax = +/-20mA
    • Cable Length: 5 meters​ (standard)
    • Protection: IP68​ (sensor head), IP67​ (cable/connector)
  • Functional Characteristics: Detects magnetic flux variation from passing teeth; EX-ATEX certified for Zone 0/1/2​ gas or dust hazardous areas.
  • Performance Parameters:
    • Frequency Range: 0 – 33 kHz
    • Operating Temperature: -20°C to +85°C
    • Shock Resistance: 50 gn​ (20ms half-sine)
    • Vibration: 5 gn​ (5–2000 Hz)
  • Material Composition: Stainless steel or robust polymer sensing head; oil-resistant halogen-free cable.
  • Structural Features: Cylindrical probe-style body; integrated cable or M12 connector option; sealed encapsulation.
  • Working Principle: Hall effect element senses changes in magnetic field caused by rotating ferromagnetic gear teeth, generating a frequency-proportional digital or analog pulse train.
  • Advantage Highlights: Intrinsic safety for explosive atmospheres; wide RPM range with high linearity; maintenance-free solid-state design.
  • Applicable Industries: Oil & Gas, Chemical, Power Generation, Conveyor Systems, Turbomachinery.
  • Model Series: Jaquet DSF Series (Speed Monitoring Sensors).
  • Installation Requirements: Mount with specified air gap to target gear (typically 0.5–1.5 mm depending on tooth geometry); secure locking nut to prevent vibration loosening; route cable away from high EMI sources.
  • Usage Precautions: Do not exceed supply voltage 30 VDC; ensure EX certification matches area classification; verify target material is ferrous (iron/steel) for proper operation.
