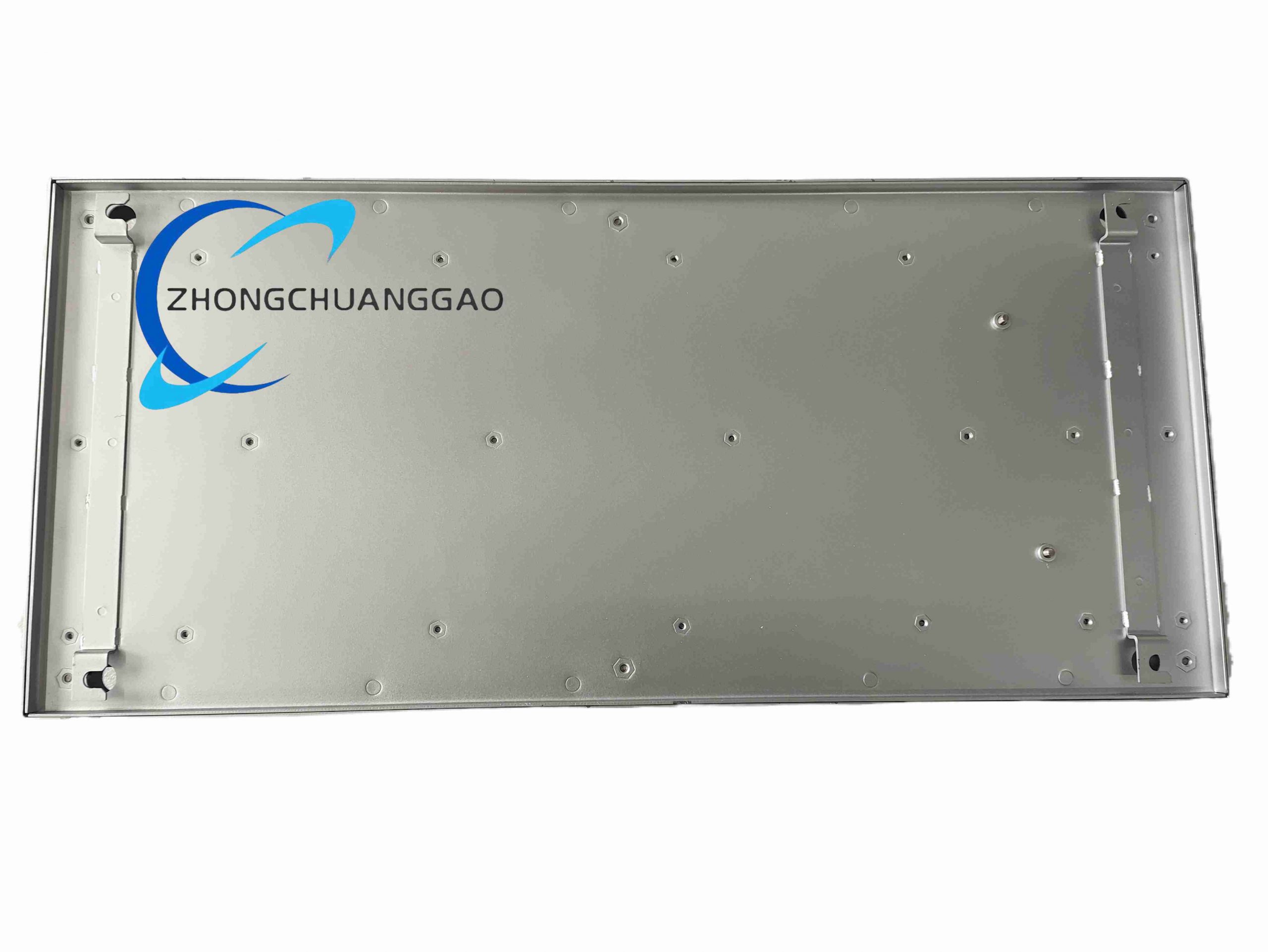

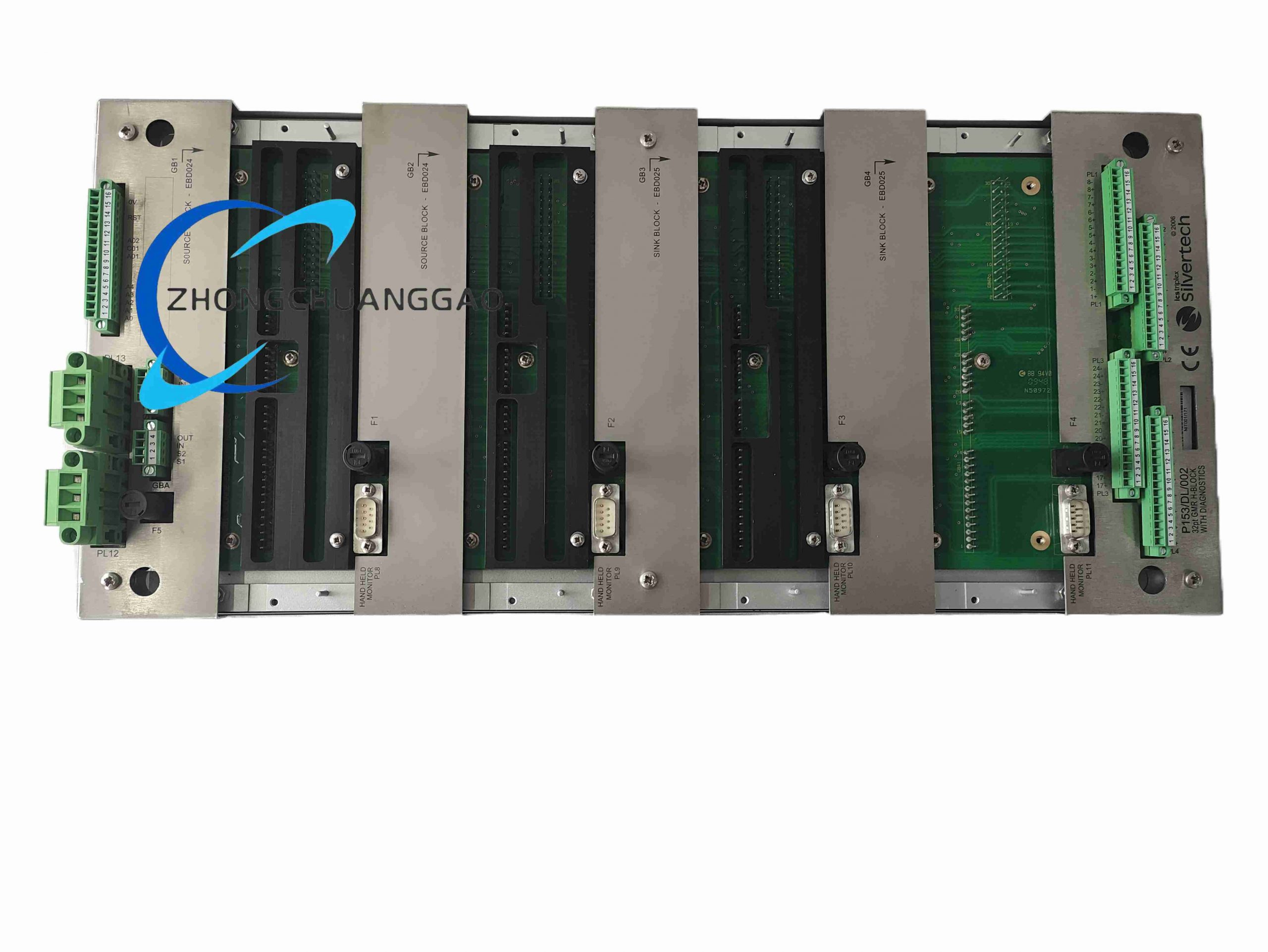

ICS Triplex P153DL002

Technical Specifications

1. Electrical Specifications
   • Operating Voltage: 20–32 VDC (rated 24 VDC)
   • External Fusing: 20 A external fuse for power input protection
   • Backplane Power: Redundant power distribution to all module slots; 80 W maximum total power dissipation
   • Backplane Architecture: Triple redundant Inter - Module Bus (IMB) for TMR communication and voting
   • Isolation: Reinforced isolation between field circuits, backplane, and chassis ground
   • SOE (Sequence of Events) Buffer: 1000 local events, with a 4000 - event CI (Communication Interface) buffer for post - incident analysis
2. Mechanical Specifications
   • Form Factor: 19" standard rack - mount chassis, compatible with EIA - 310 - D rack standards
   • Module Slots: Supports up to 16 T8000 - series I/O, processor, and communication modules
   • Connectors: 10×DIN 41642 male connectors for field and backplane connections
   • Indicators: Front - panel LEDs for global power status, backplane health, and module fault alerts; optional front - door window for LED visibility
   • Protection Rating: IP20 (front panel); protects against dust and finger contact
   • Weight: Approximately 10 kg (varies by configuration)

• Input Channels: 32 digital input channels for connecting multiple discrete sensors or switches.
• Input Voltage: 24 V DC, compatible with standard industrial power supplies.
• Operating Temperature Range: -40°C to +70°C, enabling deployment in extreme conditions.
• Protection Rating: IP65, offering dust-tight and water-resistant enclosure.
• Dimensions: 192 mm (L) x 92 mm (W) x 35 mm (H), compact for space-constrained installations.
• Weight: 0.7 kg, facilitating easy integration into existing systems.
• Communication Protocols: Supports Modbus TCP/IP, Ethernet, and other industrial protocols for seamless integration.
• Response Time: Less than 1 millisecond, ensuring real-time data acquisition.
• Accuracy: ±0.1%, providing precise signal interpretation.

• Channels: 40 digital input/output channels (configurable for either input or output).
• Voltage Range:
  • Operating voltage: 24 V DC (standard); supports up to 60 V DC via external power distribution units.
  • Field terminal wire size: 12 AWG to 28 AWG.
• Current Rating:
  • Maximum current per channel: 2 A.
  • Power dissipation: 0.5 W per power group.
• Isolation:
  • Channel-to-channel isolation: 50 V reinforced (continuous), tested at 1411 V DC for 60 seconds.
  • Power group-to-power group isolation: 250 V basic (fault), tested at 2436 V DC for 60 seconds.

• Input Channels: 16 channels (configurable for 32-channel redundancy via TMR design).
• Input Types: Supports multiple analog signals, including 0-10V, 4-20mA, ±10V, ±5V, ±2.5V, ±1V, 0-20mA.
• Accuracy: ±0.1% FSR (Full Scale Range, typical).
• Sampling Rate: Configurable up to 100 samples per second per channel (typical).
• Resolution: 16-bit.
• Isolation Voltage: 500Vdc (between channels and between channels and system).
• Common-Mode Rejection Ratio (CMRR): >120dB (typical).
• Operating Temperature: -40°C to +70°C.
• Storage Temperature: -40°C to +85°C.
• Humidity: 5% to 95% RH (non-condensing).
