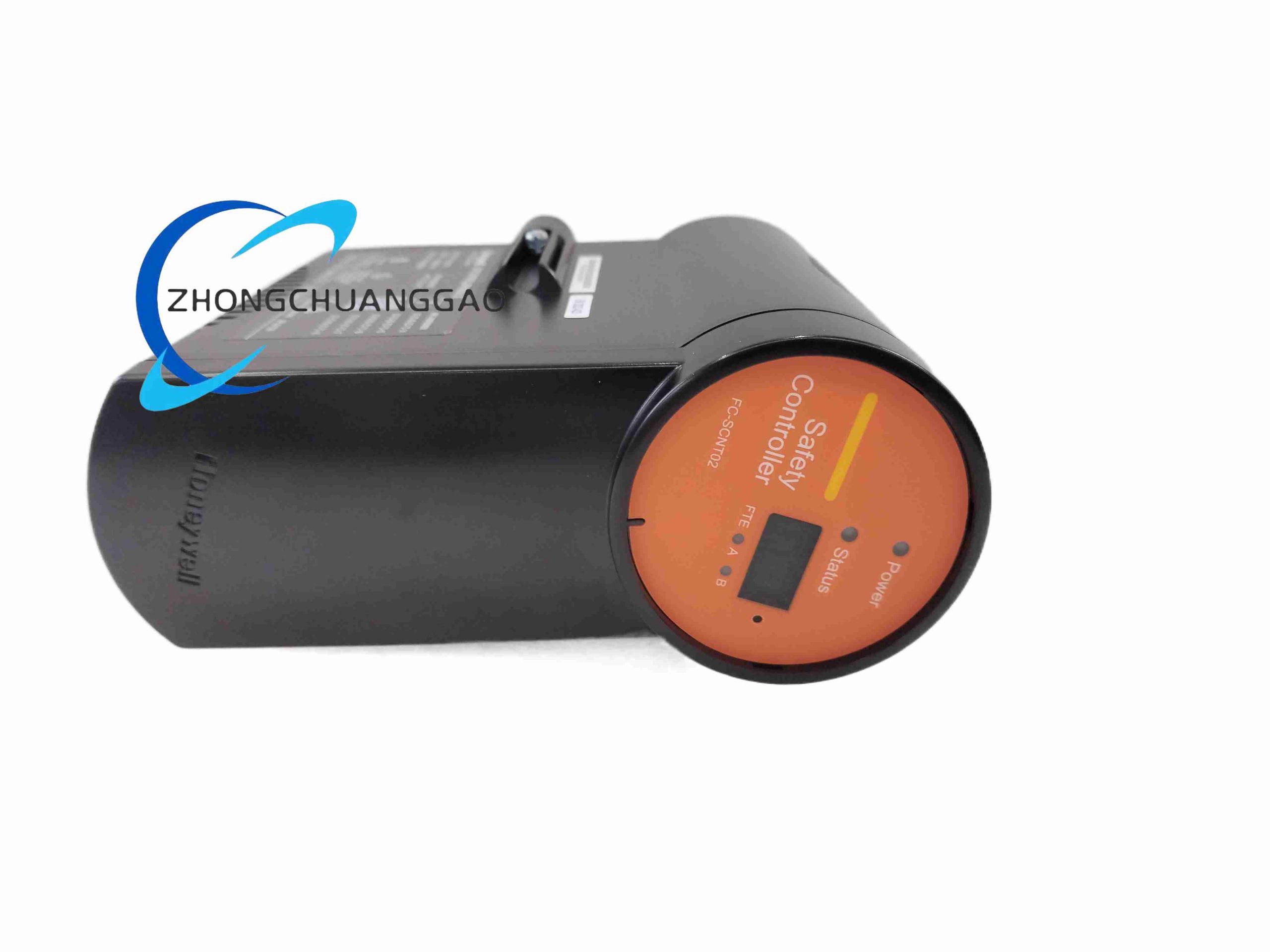

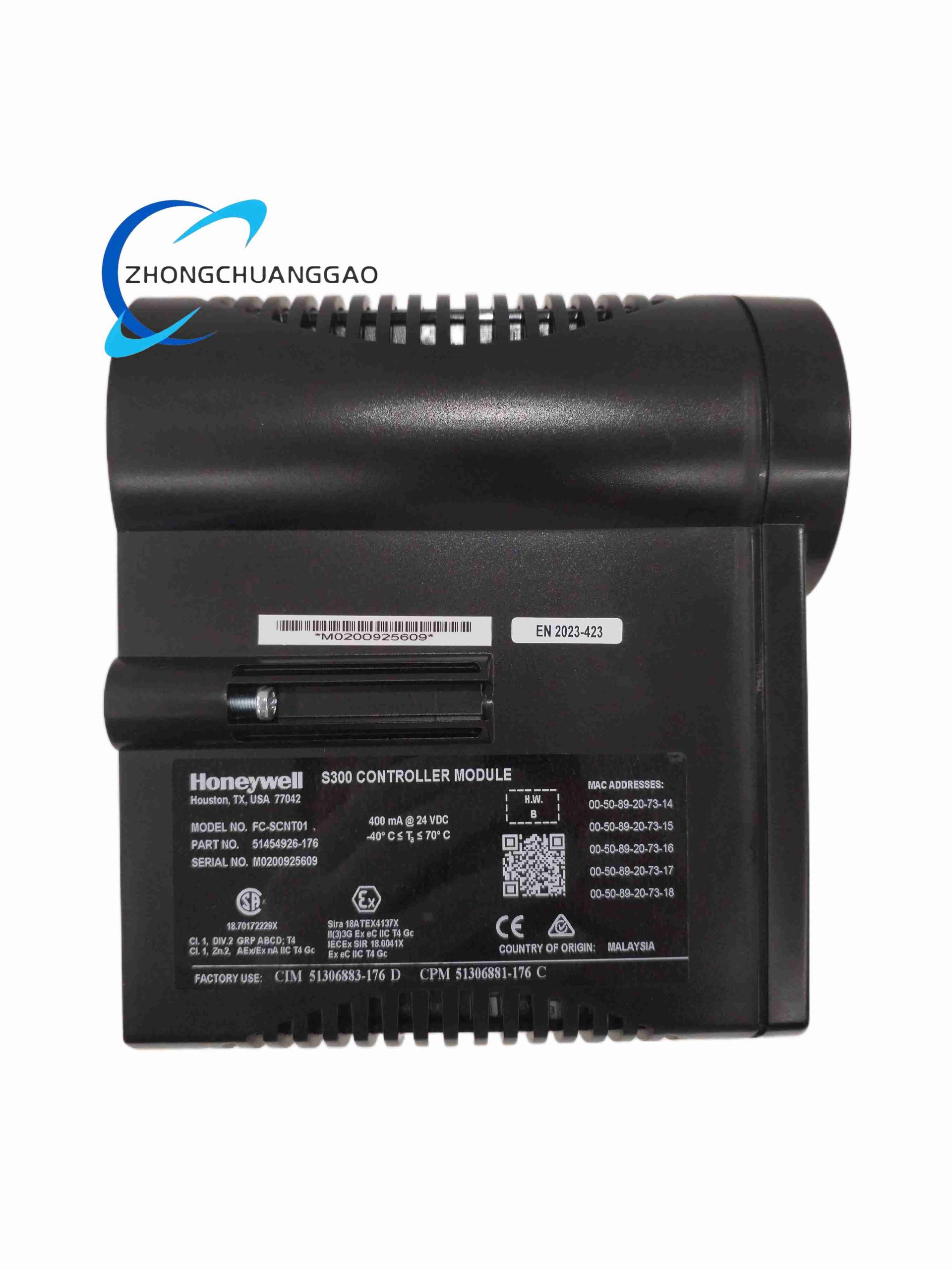

Honeywell FC-SCNT01

Product Name: Security Control Net Interface / Safety Controller Module

Product Introduction: The FC-SCNT01 is a safety controller/module interfacing control networks, often part of SC S300 or Safety Manager architectures, providing SIL 3 rated logic solving and I/O handling.

Category: Honeywell

Description

Technical Specifications:

Channels: 16 (Typically 8 DI + 8 DO)
Safety Grade: SIL 3 (IEC 61508)
Processor: Dual-core ARM Cortex-A53 (1 GHz) in lockstep variants
Memory: 512 MB DDR3L / 2 GB eMMC
Voltage: 24 VDC (-15% ~ +30%)
Comm: Ethernet/IP, Modbus TCP, BACnet

Functional Features: Executes safety logic; monitors inputs via 2oo3 voting (depending config); drives force-guided relay outputs; dual-channel redundancy; event logging with power-loss protection.

Performance Parameters:
Scan Time: 1 ms typical cycle
Operating Temp: -40°C to +70°C
Protection: IP66 (module body), >99% diagnostic coverage
Dimensions: 127 × 95 × 60 mm, Weight ~0.5 kg

Material Composition: Hard anodized aluminum housing (25 µm coating); industrial SLC eMMC; PCB conformal coating.

Structural Characteristics: Sealed enclosure for harsh environments; front port connectors; DIN rail or panel mount; LED status array.

Working Principle: Dual lock-step CPUs execute safety application; hardware comparators check every cycle; outputs are only energized if consensus voting validates processor health and input integrity; forces safe state on divergence.

Advantages Highlights: Salt fog resistance (1000h); high diagnostic coverage; compact ruggedized design; multiple protocol support for integration.

Applicable Industries: Offshore LNG, Marine, Coastal Refineries, Water Treatment, Critical Infrastructure.

Model Series: Honeywell SC S300 / Safety Manager SCNT Series.

Installation Requirements: Mount in ventilated area or cabinet (IP66 protects module but terminals need strain relief); secure DIN rail clip; ground shield properly.

Usage Precautions: Ensure firmware matches system; do not bypass force-guided relay safety contacts; monitor eMMC wear indicators; maintain 24 VDC supply stability within -15/+30%.
