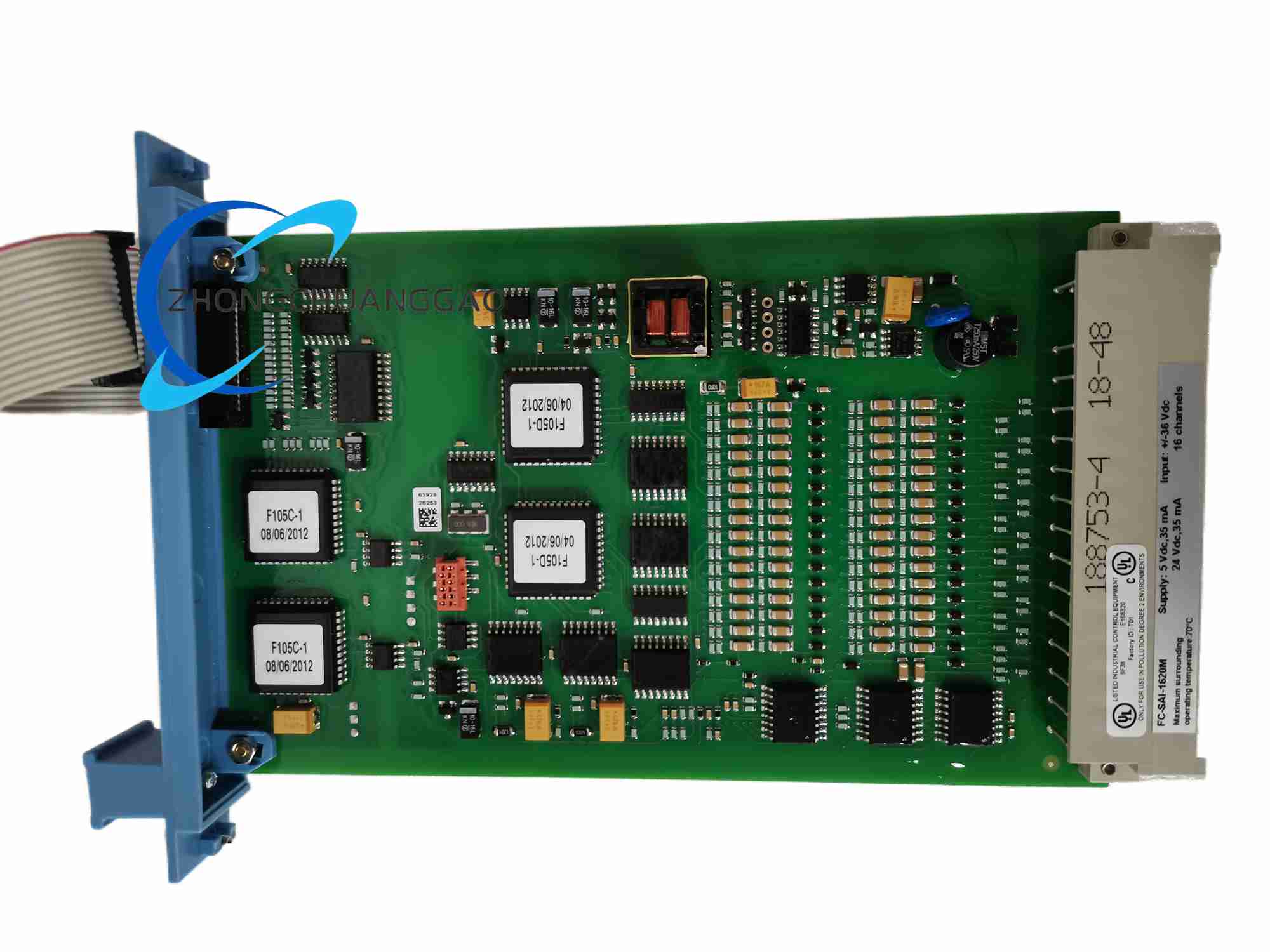

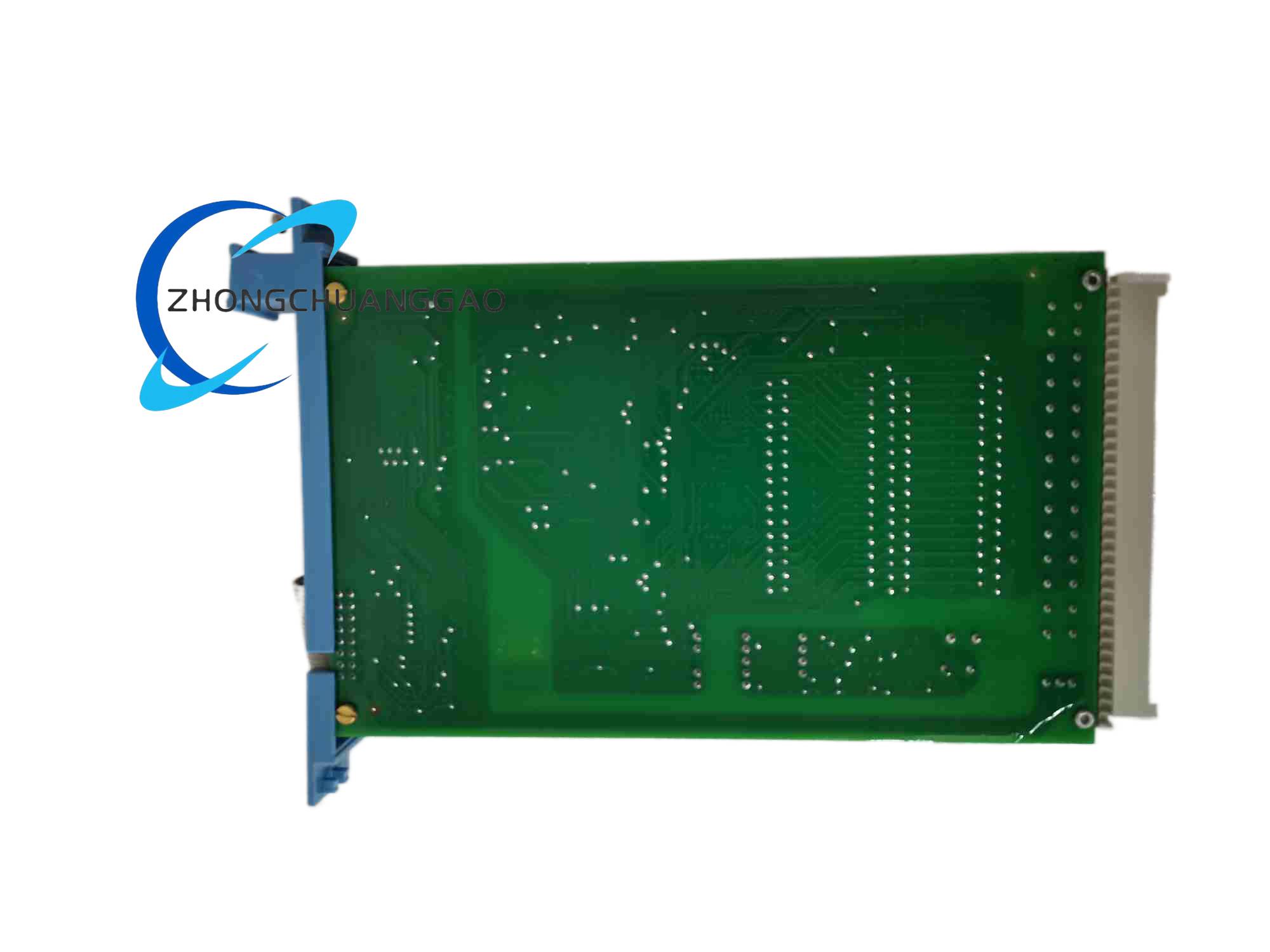

Honeywell FC‑SAI‑1620M

Technical Specifications: Number of input channels 16 channels; input signal range software selectable 4‑20 mA, 0‑10 V DC; resolution 16‑bit; measurement accuracy ±0.2% full‑scale; response time ≤2 ms; channel‑to‑channel galvanic isolation; isolation withstand‑voltage 2500 V AC; power supply 5 V DC 35 mA, 24 V DC 35 mA from system backplane; physical size 4 TE, 3 HE rack unit; operating temperature ‑40 °C ~ +70 °C; certification IEC 61508 SIL 3, TÜV, UL, FM, CE; support FM 3611 Class I Division 2 hazardous‑area application.

Functional Features: 16‑channel high‑density safety analog‑signal acquisition; per‑channel comprehensive diagnostic function including wire‑break, short‑circuit detection; channel‑by‑channel galvanic isolation; support hot‑swap module replacement; fault‑alarm signal uploaded to safety‑controller; software‑configurable signal type; compatible with Safety Manager system backplane bus; support hazardous‑area Division 2 installation application.

Application Scenarios: Petrochemical SIS safety‑system pressure, temperature, flow‑transmitter signal acquisition; oil‑gas plant safety‑instrumented‑system analog‑sensor input; power‑plant safety‑protection system field‑analog‑signal collection; hazardous‑process industrial safety interlock‑signal measurement.

Performance Parameters: Per‑channel sampling rate 50 samples per second; diagnostic coverage ≥90%; SIL 3 safety integrity level; MTBF ≥200000 hours; fault‑detection response time less than 10 ms.

Material Composition: FR‑4 high‑reliability multilayer printed‑circuit board; metal front‑panel with status LED indicators; gold‑plated backplane connector; analog‑signal conditioning chips, isolation optocoupler; surge‑protection TVS components; screw‑type field‑wiring terminal block.

Structural Characteristics: Eurocard plug‑in rack‑mount module structure; front‑panel LED status indicator for each channel; rear‑side gold‑plated high‑density backplane connector connected to Safety‑Manager rack backplane; front‑side screw‑terminal block for field‑transmitter wiring; internal isolation barrier for each analog‑input channel.

Working Principle: Field‑transmitter analog‑current or voltage signal enters module through field‑wiring terminals; signal‑conditioning circuit performs filtering, surge‑protection and galvanic‑isolation processing; high‑precision ADC converts analog‑signal into digital‑value; module transmits digital‑sampling data and channel‑diagnostic information to safety‑logic‑solver via backplane bus; internal circuit detects wire‑break, short‑circuit and over‑range fault for each channel and reports fault code.

Installation Requirements: Insert into designated slot of Honeywell Safety‑Manager rack; ensure backplane connector fully locked; field‑transmitter wiring connects to front‑panel screw‑terminals; use shielded twisted‑pair cable for analog‑signal wiring; separate analog‑signal wiring from power‑cable; cabinet operating‑temperature must be within rated range; protective‑ground connection required.

Usage Notes: Module supports hot‑swap, but avoid frequent plug‑in‑out; strictly follow signal‑type configuration corresponding to field‑transmitter output; check wire‑break‑diagnostic threshold setting; field‑side wiring must prevent surge‑voltage interference; do not operate beyond rated temperature range; ESD protection required during maintenance and replacement.
