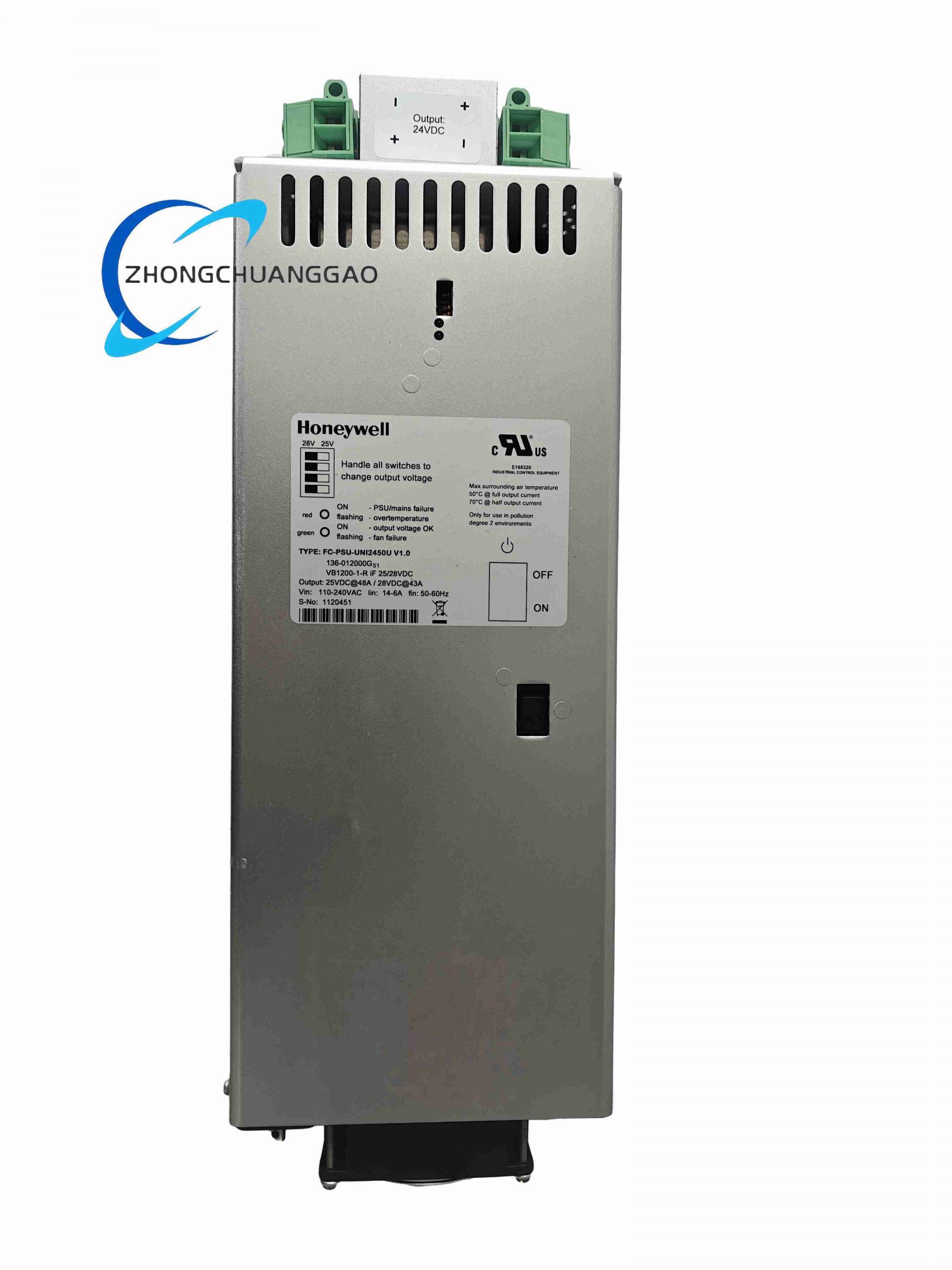

Honeywell FC-PSU-UNI2450U V1.0/V2 - Image 1

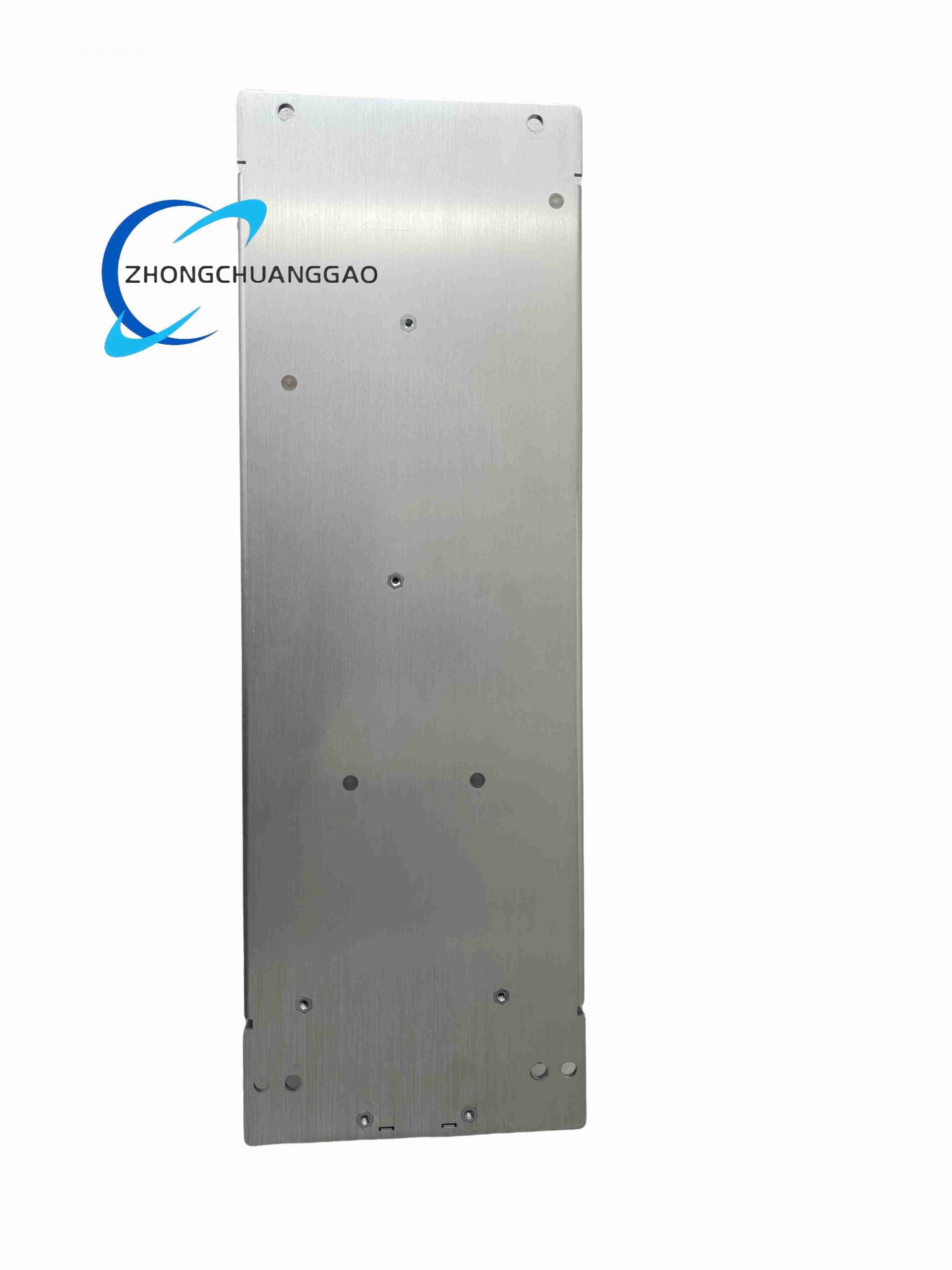

Honeywell FC-PSU-UNI2450U V1.0/V2 - Image 2

Honeywell FC-PSU-UNI2450U V1.0/V2

Product Name: Honeywell Experion PKS Series C Universal Redundant Power Supply Module, 24 VDC 5 A

Function: High-reliability AC/DC or DC/DC power source for C300 controller chassis and Series C I/O racks.

Input Voltage:
- AC: 85–264 VAC, 47–63 Hz (universal range)
- DC (selected variants): 88–300 VDC

Category: Honeywell

Description

Rated Output: 24 VDC ±1 %, 5 A continuous (120 W)
Load Regulation / Ripple: < 1 %; ripple & noise < 100 mV p-p
Redundancy: Parallel N+1 with automatic current sharing via backplane
Isolation: Input–Output 3 kV AC, Input–Chassis 1.5 kV
Protection: Over-voltage, over-current (hiccup mode), short-circuit (self-resetting), over-temperature
Hot-Swap: Fully supported — green/yellow/red LED status indicators
MTBF: > 200,000 hours (Telcordia SR-332)
Operating Temp.: -20 °C to +70 °C (output derated above 60 °C)
Cooling: Natural convection — fanless, dust-proof design
Mounting: Insert into left-most or right-most PSU slot of FC-IOCHAS-0002R
Certifications: UL 61010-1, CSA, CE, IEC 61000-6-2/4(EMC)
Version Difference: V2 typically adds expanded EMC compliance and minor component updates; electrically interchangeable with V1.0 in same chassis.
