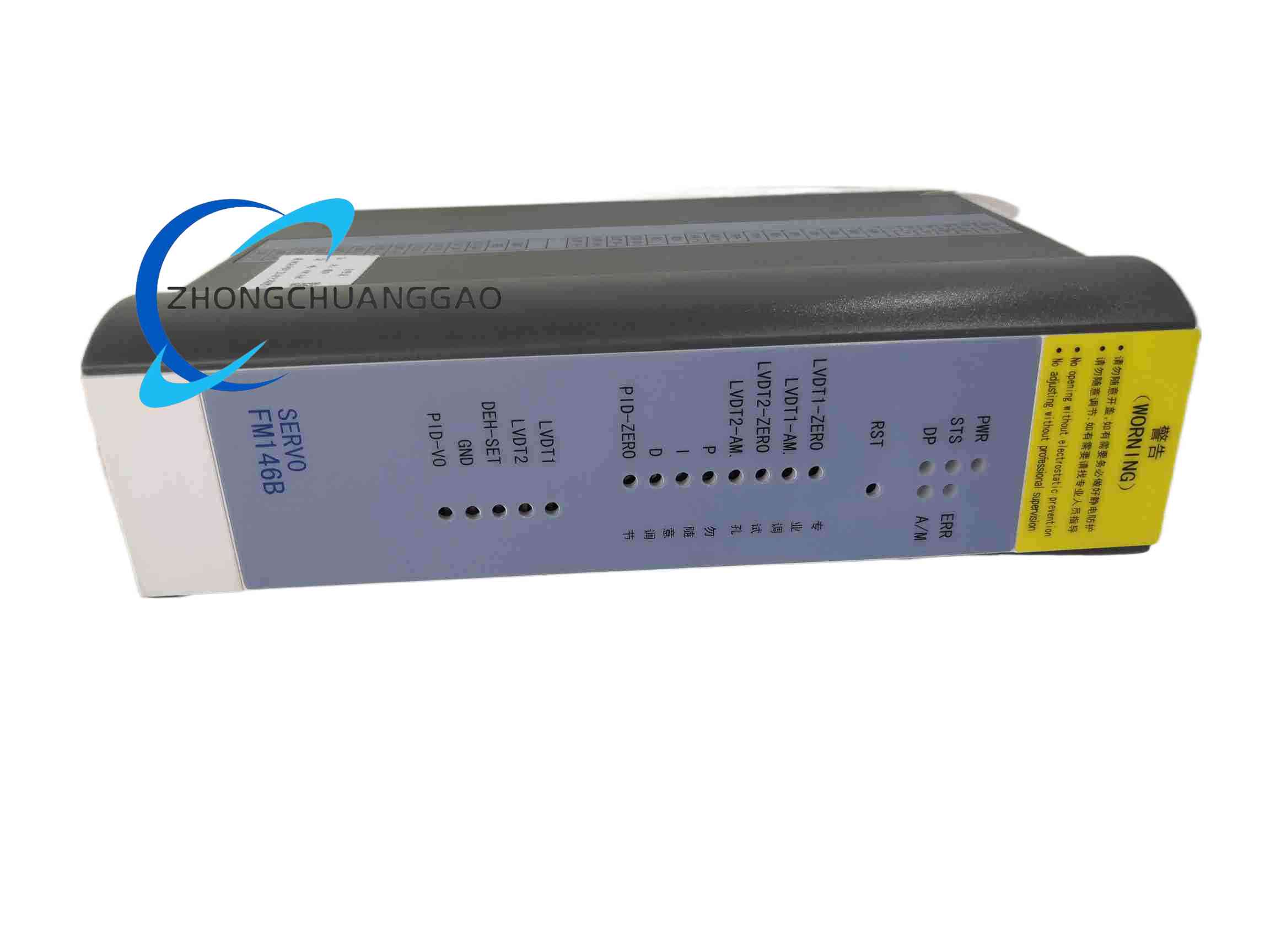

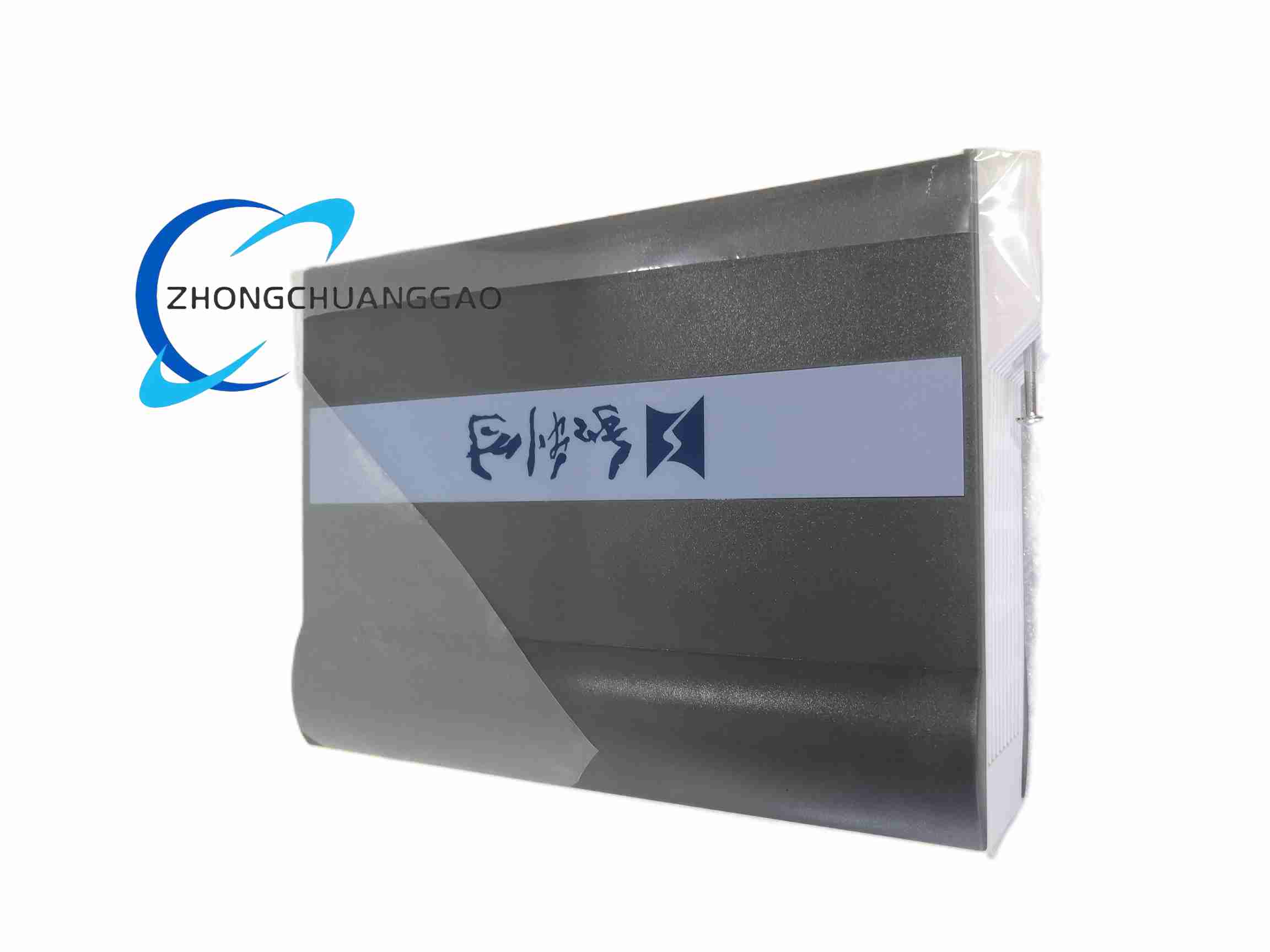

Hollysys FM146B

Technical Specifications:

Multi‑channel analog input, support 4‑20mA current signal and 0‑5V voltage‑signal, 16‑bit high‑precision A/D conversion, DCS backplane bus communication, channel‑to‑channel isolation.

Functional Features:

Per‑channel signal‑over‑range diagnosis, open‑circuit detection for transmitter loop, front‑panel channel‑status LED indication, hot‑swap function, signal‑noise digital‑filtering.

Application Scenarios:

Thermal‑power‑generation DCS system, petrochemical process‑control, chemical‑industry production‑automation, water‑treatment‑plant monitoring‑control system.

Performance Parameters:

Conversion accuracy ±0.1%FS, sampling‑rate configurable, operating ambient temperature ‑25℃ ~ +65℃, high‑electromagnetic‑interference‑resistance performance.

Material Composition:

Flame‑retardant ABS‑plastic housing, tin‑plated‑copper wiring‑terminals, gold‑plated backplane‑connectors, industrial‑precision A/D conversion chips.

Structural Features:

DIN‑rail‑mount modular cabinet‑module, detachable wiring‑terminal blocks, front‑view LED diagnostic‑indicators, standardized DCS‑system module mechanical‑dimension.

Working Principle:

Receive analog‑current or voltage‑signals from field transmitters; analog‑signal pass through isolation and conditioning circuit, converted into digital‑value by high‑precision A/D converter, transmit digital‑process‑data to DCS main‑controller through backplane bus.

Installation Requirements:

Install inside industrial‑control cabinet on DIN‑35 rail, use shielded twisted‑pair cables for field‑transmitter signal wiring, single‑end shield‑grounding, separate analog‑signal cables from high‑voltage‑power‑cables.

Usage Notes:

Do not input over‑range voltage‑current signal to channels, test loop‑insulation before power‑on, avoid strong‑electromagnetic‑field surrounding installation‑position, execute regular channel‑accuracy calibration according to system‑maintenance‑manual.
