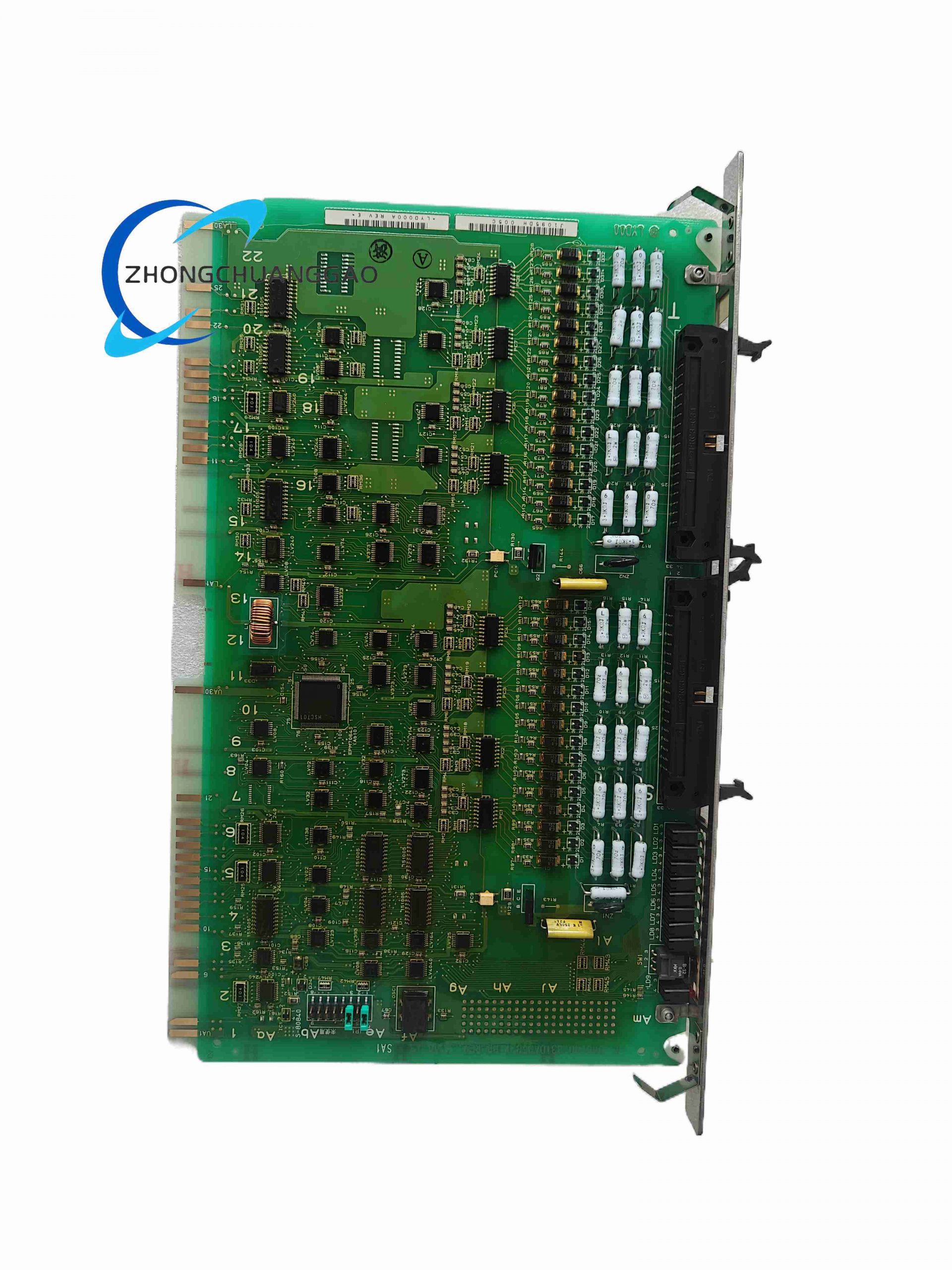

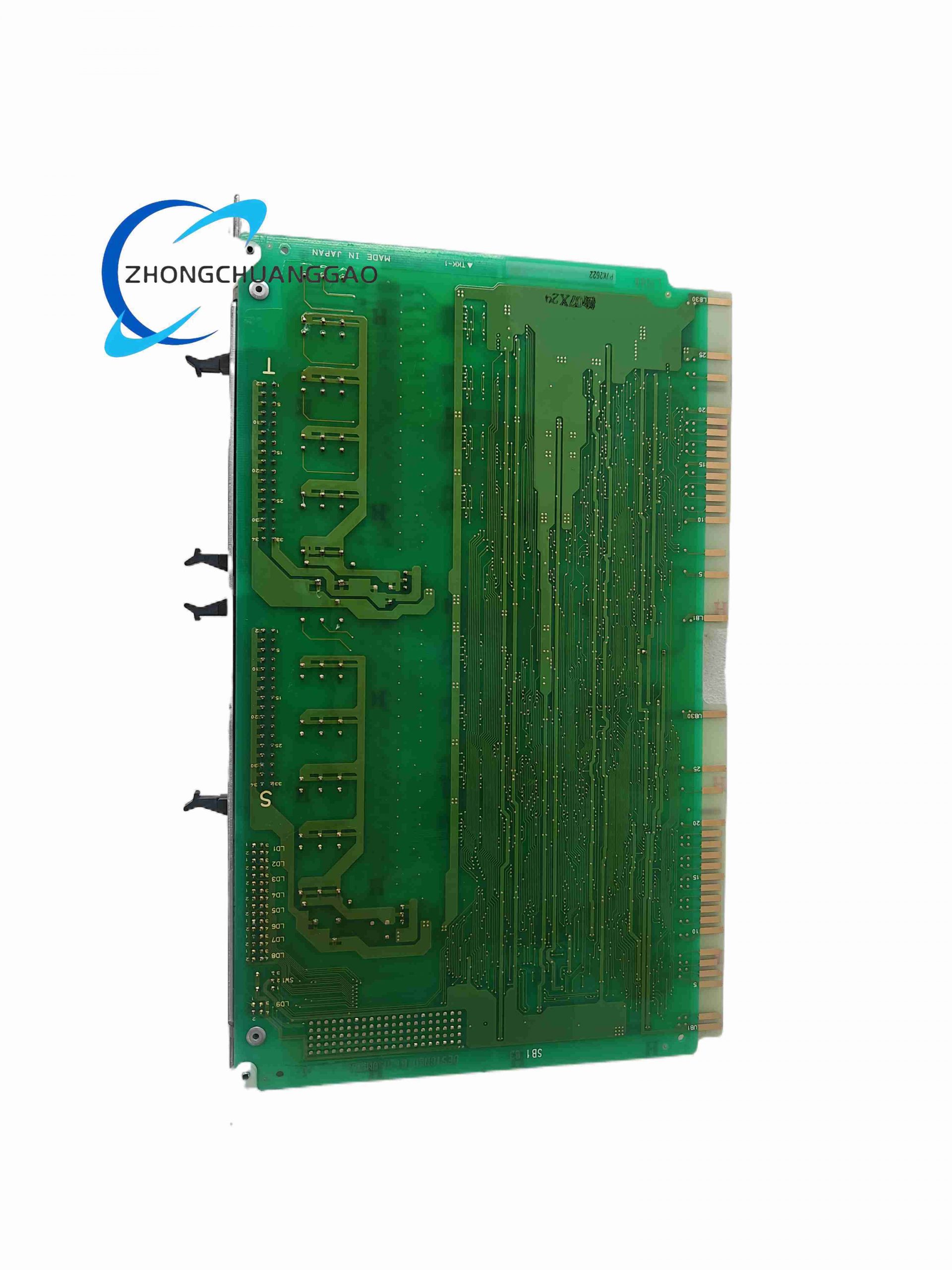

Hitachi LYD000A

Product Name:​ Hitachi LYD000A 16-Channel Digital Input Module (24 VDC)
Product Introduction:​
The Hitachi LYD000A is a 16-point digital (discrete) input module for the Hitachi H-System DCS. It accepts 24 VDC dry-contact or wet-contact signals from field pushbuttons, limit switches, motor aux contacts, and ESD devices, providing optically isolated input to the control processor.
Category:
Description
Key Technical Specifications:
  • Manufacturer:​ Hitachi, Ltd.
  • Model:​ LYD000A
  • Platform:​ Hitachi H-System DCS I/O Rack
  • Input Channels:​ 16 channels
  • Rated Input Voltage:​ 24 VDC (operating range typically 18–30 VDC)
  • Input Type:​ Sink (NPN) or Source (PNP) — selectable by wiring / jumper
  • Input Current:​ ≈5–7 mA @ 24 VDC per channel
  • Response Time:​ ≤1 ms (typical ON/OFF detection)
  • Isolation:​ Opto-coupler isolation between field side and system side (>500 VAC)
  • Power Supply:​ +24 VDC from backplane
  • Indicators:​ Per-channel LED + module status LED
  • Operating Temp:​ –20 °C to +60 °C
  • Installation:​ H-System I/O rack plug-in module
Functional Features:
  • Debounce filtering programmable in controller (typically 2–20 ms)
  • Open-wire detection not standard on DI — usually handled by logic
  • Supports both NO and NC contact wiring
Application Scenarios:
  • Motor run / stop feedback, pump status
  • Valve limit switch (open/closed) monitoring
  • Emergency Stop / alarm contact acquisition for sequence logic
Material & Structure:
  • Flame-retardant molded housing
  • Backplane gold-finger connector
  • Screw / spring clamp field terminal block
Installation & Notes:
  • Wire field commons carefully to avoid ground loops
  • For wet-contact inputs ensure external 24 VDC supply polarity matches module expectation
  • Verify point address assignment in H-System engineering tool before download
