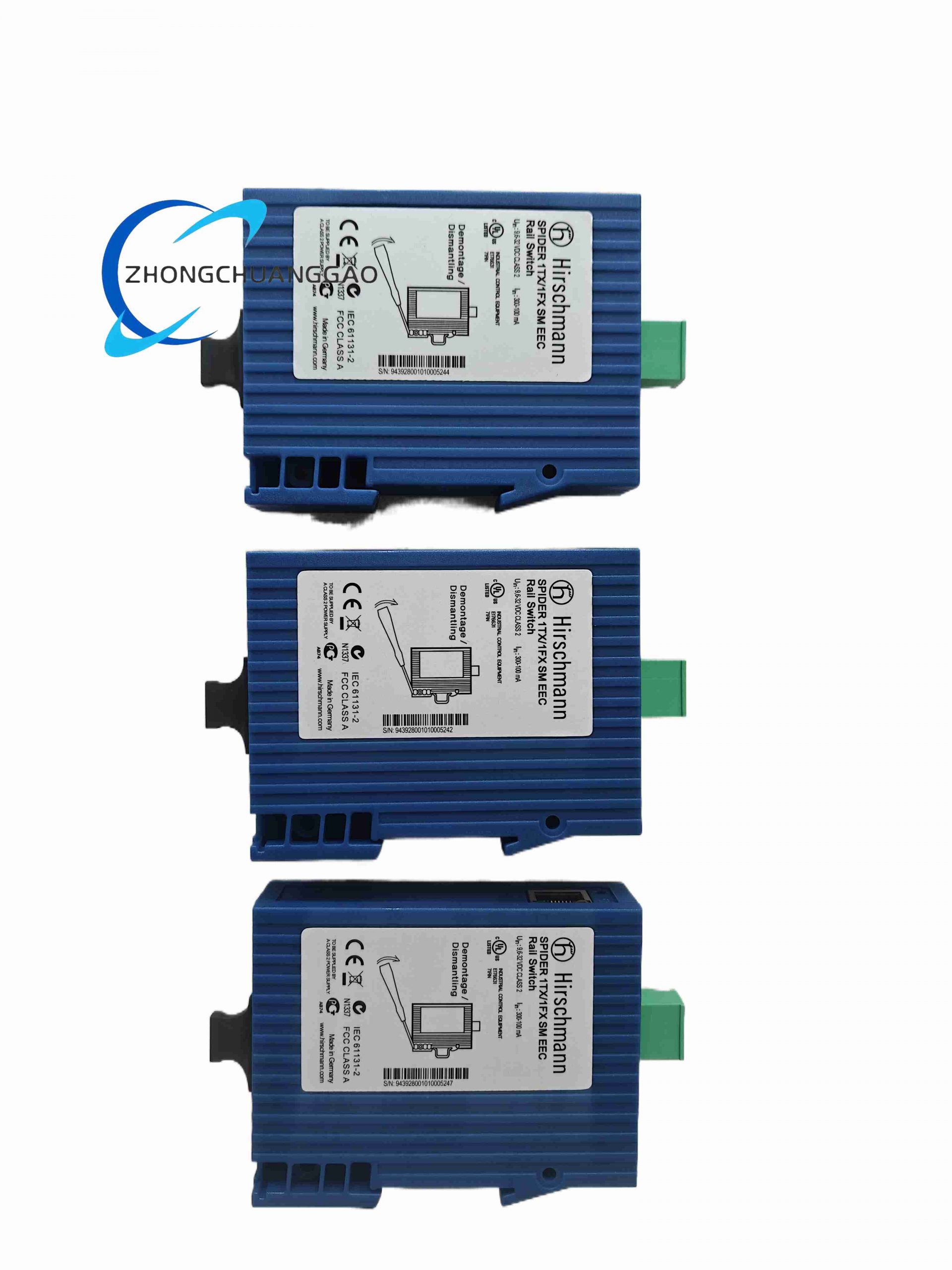

Hirschmann SPIDER 1TX/1FX-SM EEC - Image 1
Hirschmann SPIDER 1TX/1FX-SM EEC - Image 2
Click to enlarge
Hirschmann SPIDER 1TX/1FX-SM EEC

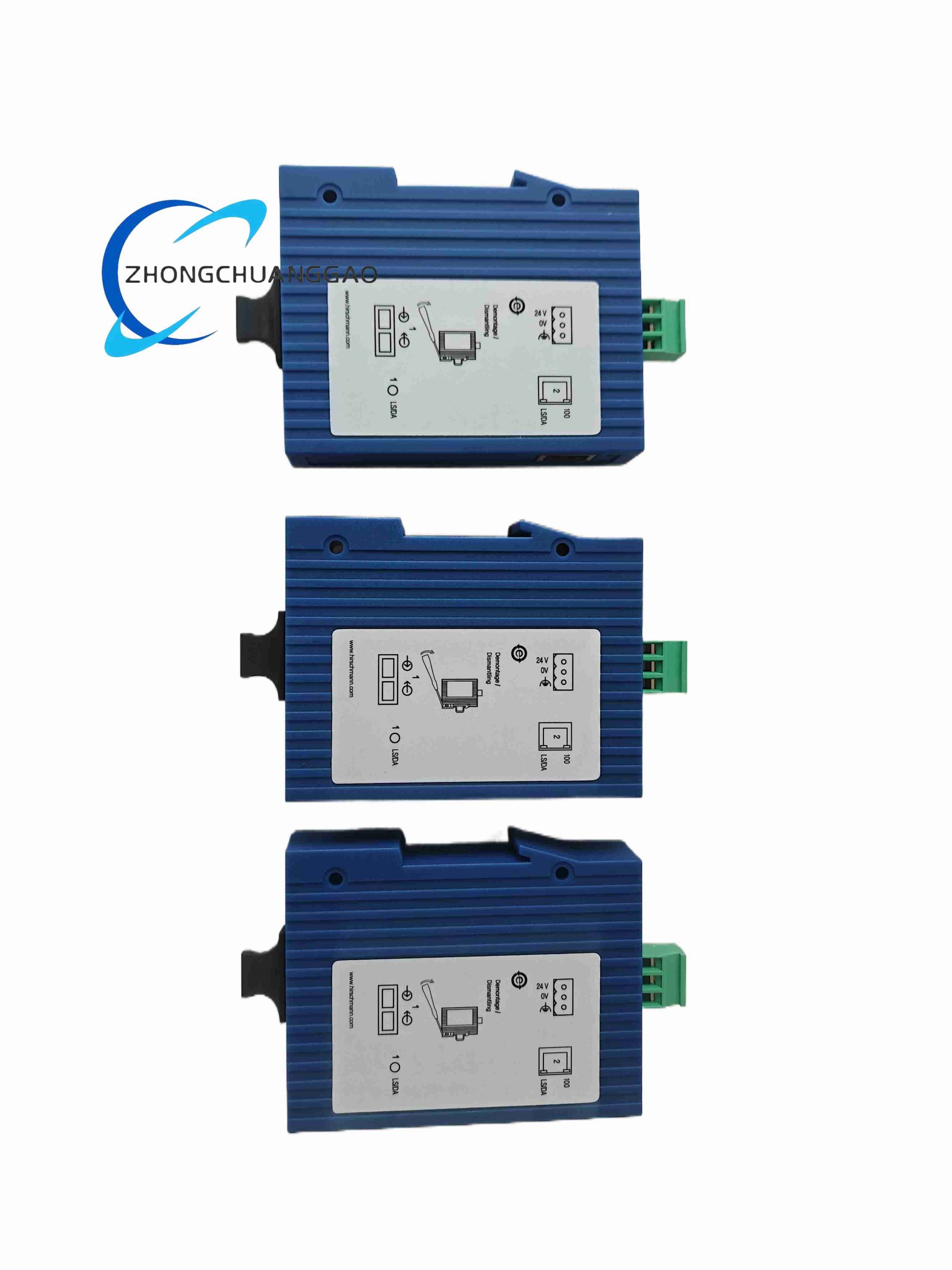

Hirschmann SPIDER 1TX/1FX-SM EEC - Image 2
Emerson SP4402
Emerson SP4402
Back to products
Woodward SPM-D1115B 8440-2165
Woodward SPM-D1115B 8440-2165

Hirschmann SPIDER 1TX/1FX-SM EEC

Product Name:​ Hirschmann SPIDER 1TX/1FX-SM EEC, Industrial Unmanaged Fast Ethernet Switch, 1×10/100Base-TX RJ45 + 1×100Base-FX Single-Mode Fiber SC
Product Introduction:​ A compact, unmanaged DIN-rail mounted industrial Ethernet switch providing one twisted-pair copper port and one single-mode fiber optic port for extending Ethernet networks over long distances in harsh industrial environments. No configuration required—plug-and-play.
Category:
Description
Technical Specifications:
  • Ports:​ 1 × 10/100BASE-TX RJ45 (auto MDI/MDIX, auto-negotiation, up to 100 m Cat.5e); 1 × 100BASE-FX Single-Mode SC (1300 nm, 9/125 µm fiber)
  • Fiber Reach:​ Up to 32.5 km (link budget 16 dB)
  • Switching Mode:​ Store-and-forward
  • Power Supply:​ 9.6–32 V DC (typical 24 V DC), max. current 130 mA @ 24 V DC, max. power 3 W
  • Terminal Block:​ 1 × 3-pin pluggable screw terminal (no signal contact)
  • LED Indicators:​ Power, Link/Act, Data Rate per port
  • Dimensions (W×H×D):​ 25 × 114 × 79 mm
  • Weight:​ approx. 105 g
  • Mounting:​ 35 mm DIN rail (EN 60715)
  • Ingress Protection:​ IP30 (metal housing)
  • Operating Temp:​ −40 to +70 °C (EEC version); Storage −40 to +70 °C
  • Humidity:​ 10–95% RH non-condensing
  • MTBF:​ 101.5 years per MIL-HDBK-217F
  • EMC / Certification:​ CE, FCC Class A, cULus listed; IEC 61850-3 / IEEE 1613compliant EMC levels
Features & Working Principle:
  • Layer 2 unmanaged switch—automatically learns MAC addresses and forwards frames between copper and fiber segments.
  • Fiber port provides galvanic isolation and immunity to EMI from drives/motors.
  • Extended temperature and ruggedized design for outdoor cabinets, substations, tunnels.
Applications:​ Remote I/O fiber uplinks in water/wastewater plants, power substation communication, tunnel monitoring, production line cross-building links.
Installation & Notes:
  • Use only 9/125 µm single-mode fiber with SC connectors. Verify Tx/Rx alignment if no link.
  • Supply clean 24 V DC preferably from a regulated industrial PSU; observe polarity on terminal block.
  • Do NOT open cover; no user-serviceable parts inside.
