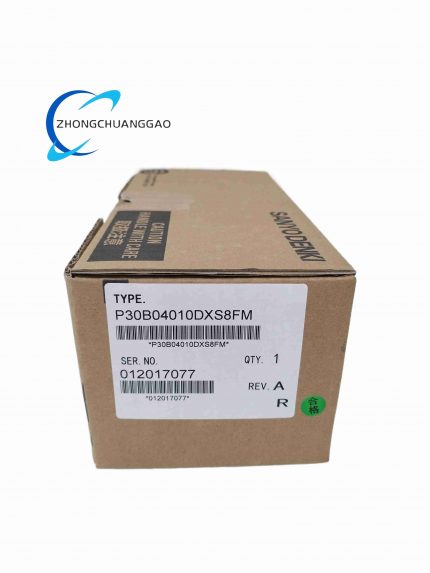

Sanyo Denki P30B04010DXS8FM
Sanyo Denki P30B04010DXS8FM
Back to products

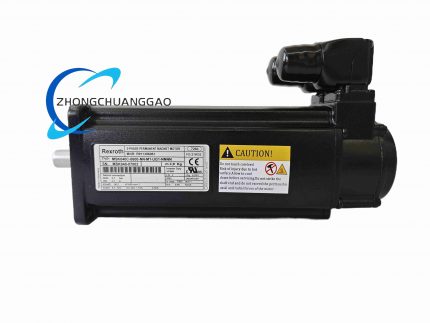

Bosch Rexroth MSK040C-0600-NN-M1-UG1-NNNN
Bosch Rexroth MSK040C-0600-NN-M1-UG1-NNNN

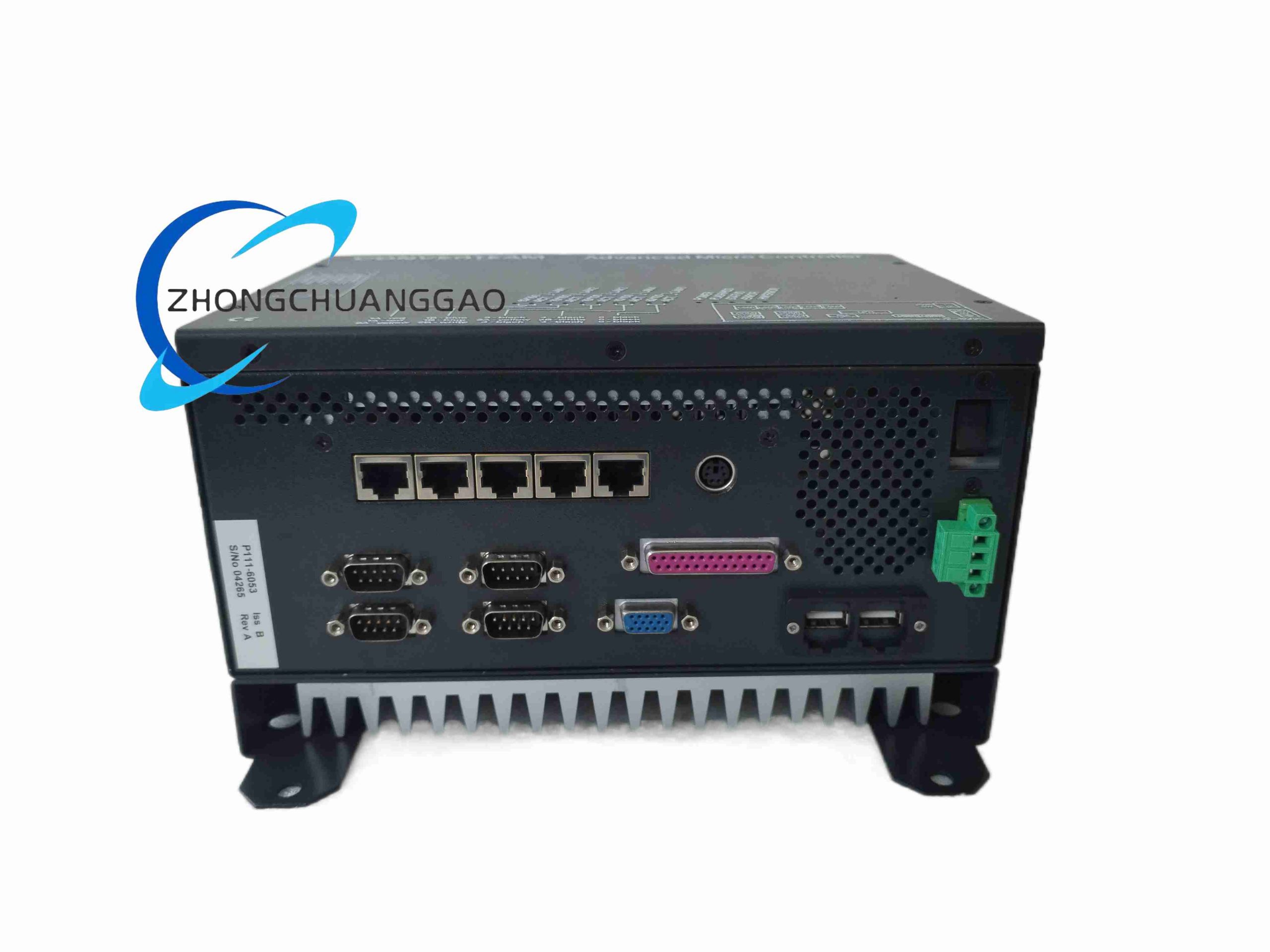

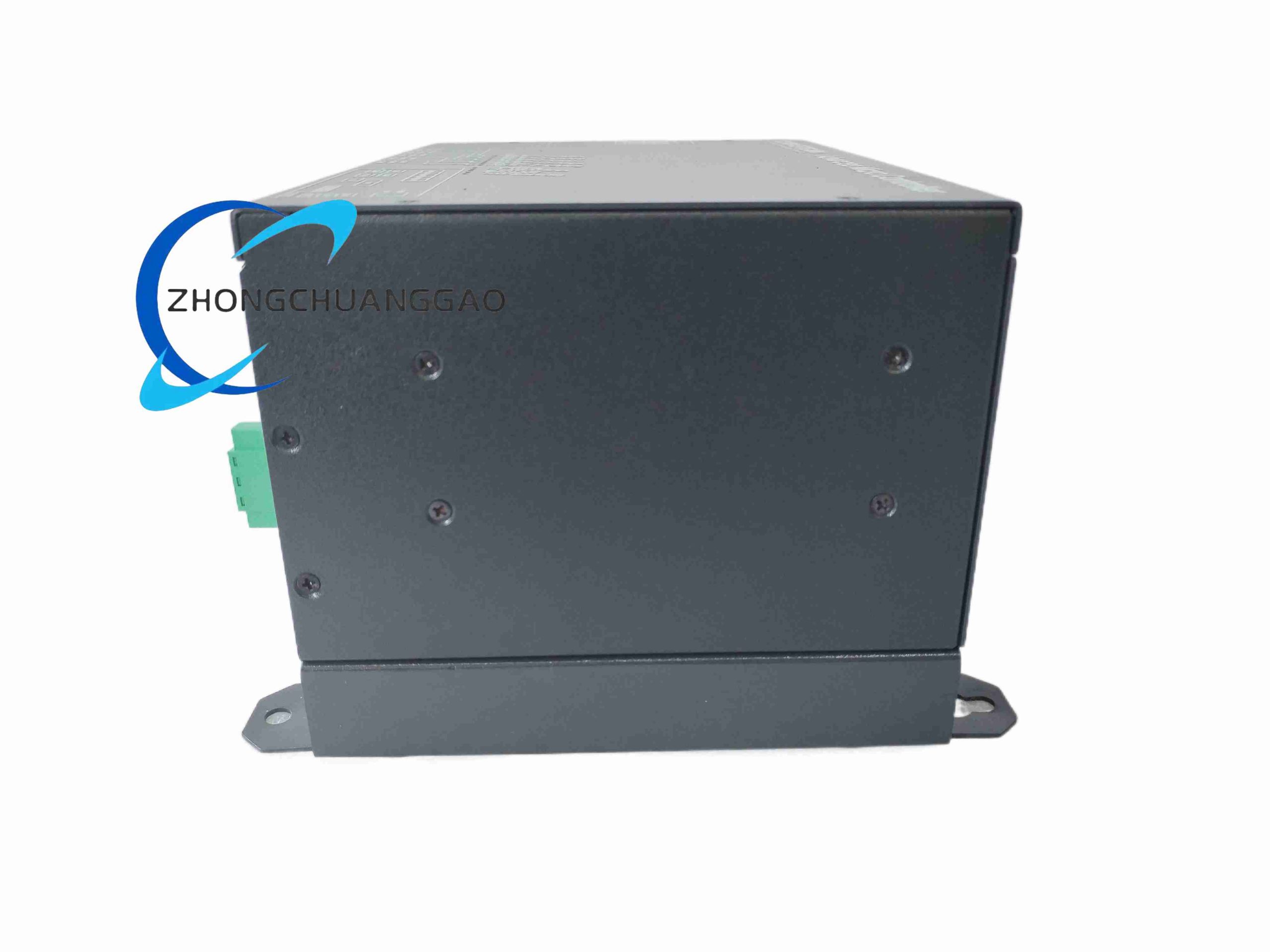

GE P111-6053

Product Name:​ GE / Converteam (Alstom) ALSPA P111-6053 Advanced Microcontroller / Digital Interface Module
Manufacturer:​ Converteam (formerly Alstom Power Conversion), now part of GE Industrial Solutions
Product Category:​ Legacy ALSPA control system I/O or processor module — typically a digital I/O interface or microcontroller board for GE/Alstom ALSPA racks
Category:
Description
Brief Introduction:​
The P111-6053 is a legacy printed circuit board module from the GE/Converteam ALSPA P100/P200 series used in power generation and heavy industrial control systems. It provides 115 VAC digital I/O interfacing or acts as a localized processing node with opto-isolation between field signals and the control backplane. Exact function depends on P111 sub-type — -6053 typically denotes a specific I/O density/config with issue/revision marking (Iss A Rev E, etc.).
Technical Specifications (typical for P111-series I/O board):
  • Model:​ P111-6053 (Issue A / Rev E typical)
  • Function:​ Digital Input/Output module or Microcontroller interface — 115 VAC digital inputs (sinking/sourcing), optically isolated; may include TTL-level bus interface to ALSPA central processor
  • Number of Channels:​ Typically 16 or 32 digital points (model-specific; P111 family offered 8/16/32 ch)
  • Input Voltage Rating:​ 115 VAC nominal (range ~85–132 VAC), 50/60 Hz
  • Isolation:​ ≥1500 V AC opto-isolation between field side and logic backplane
  • Logic Interface:​ Proprietary ALSPA backplane bus (parallel or serial)
  • Indicators:​ Per-point LED (ON/OFF) + module Status/Run/Fault LED
  • Power Requirement:​ +5 VDC from backplane (typ. <500 mA); field side powered by external 115 VAC
  • Operating Temperature:​ 0°C to +55°C (control room grade)
  • Storage Temperature:​ –40°C to +70°C
  • Humidity:​ 5–95% non-condensing
  • Mounting:​ Plug-in to ALSPA P100/P200 rack (card cage) — 19″ subrack
  • Dimensions:​ Standard Eurocard format (e.g., 3U × 160 mm depth typical for P111)
  • Weight:​ ~0.4–0.6 kg
  • Certifications:​ CE, UL (legacy), compliant with IEC 61131-2for I/O modules
  • Material:​ FR4 PCB with gold-edge connector fingers; metal faceplate with labels
Features:
  • Opto-isolated inputs protect backplane from field transients/spikes
  • DIP switches or jumpers for address selection / input polarity configuration
  • Compatible with ALSPA P120/P130 processors for distributed I/O
Applications:​
Legacy thermal power plant turbine control (Alspa), hydro plant gate/valve interlock monitoring, heavy industry motor control center (MCC) status feedback, retrofit of 1980s–2000s vintage GE/Alstom automation systems.
Installation & Handling Warnings:
  • ESD SENSITIVE​ — Wear grounded wrist strap before handling
  • De-energize rack before insertion/removal; wait 5 min for capacitor discharge
  • Verify jumper/DIP settings match the original board being replaced — mismatched addressing can cause I/O mapping errors
  • Inspect backplane connector for oxidation; clean gently with contact cleaner if needed
  • Keep as spare tested unit — these are obsolete and typically sourced as new-surplus or refurbished
