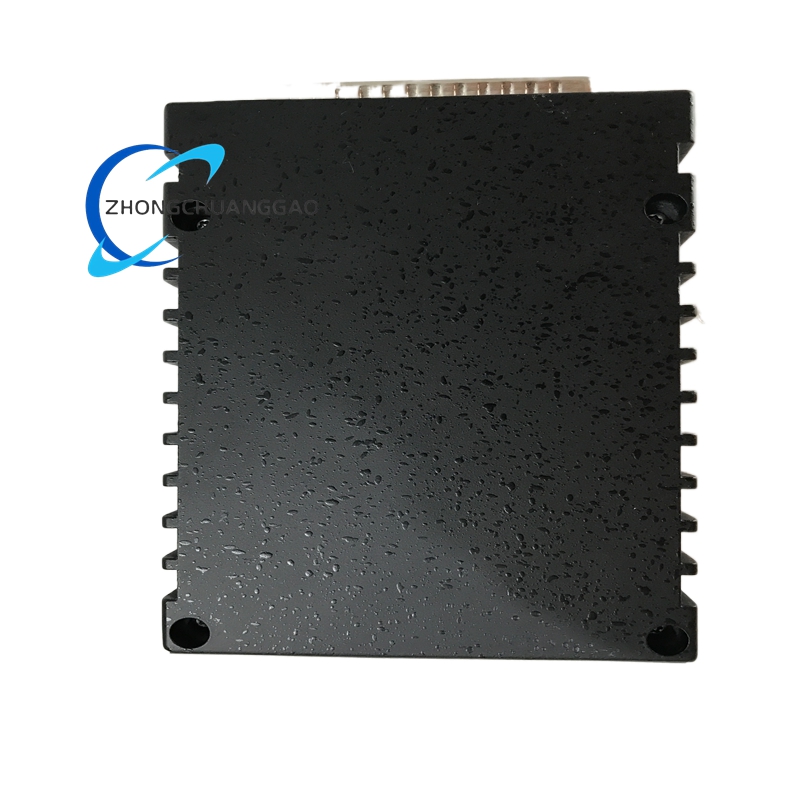

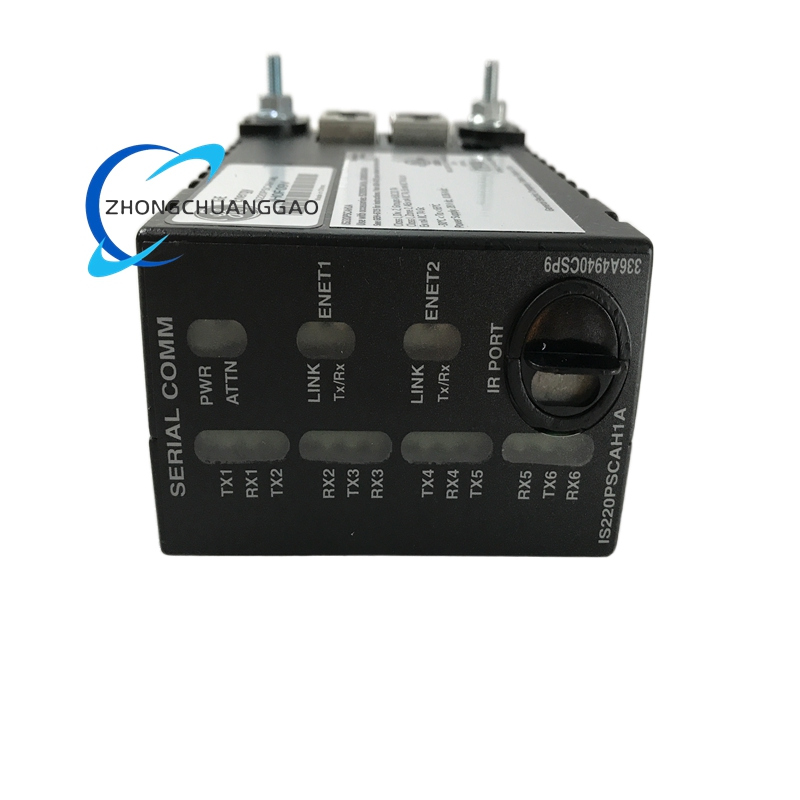

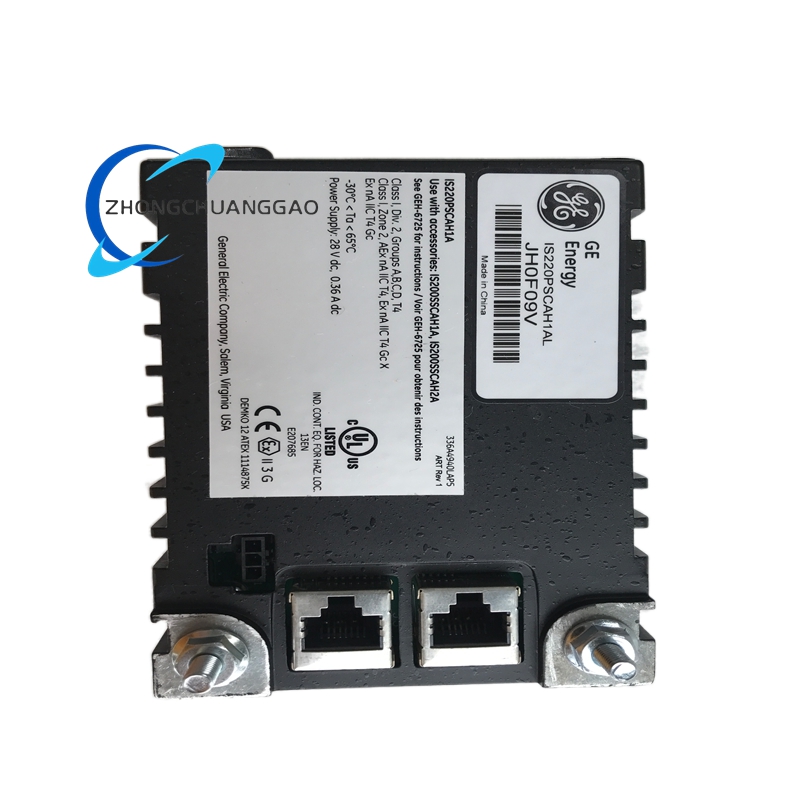

GE IS220PSCAH1A Serial Modbus Communication Interface Pack

Technical Specifications

• Serial Channels: Six independently configurable serial transceiver channels.
• Supported Ports: RS-232, RS-422, and RS-485 half-duplex.
• Communication Protocols: Modbus RTU (primary focus), with compatibility for other protocols like Profibus and CAN in similar GE modules.
• Data Configuration:
  • Data bits: 7 or 8.
  • Parity: Even, odd, or none.
  • 32-bit data word ordering.
• Power Input: Three-pin power connector and dual RJ45 Ethernet ports for供电 (power supply).
• Ethernet Support: Two Ethernet ports for Modbus TCP/IP (operational only on simplex networks).
• Self-Diagnostics: Monitors analog inputs (e.g., position, pressure) with configurable high/low thresholds for alarms and system protection.
• Environmental: Robust design for industrial settings, including DIN rail mounting and high EMC resistance.

Functional Features

• Multi-Protocol Flexibility: Supports Modbus RTU natively, enabling communication with legacy devices, while Ethernet ports allow integration with modern systems.
• High Reliability: Redundant configuration options and self-diagnostic capabilities minimize downtime.
• Scalability: Six serial channels allow simultaneous connections to multiple devices, reducing hardware complexity.
• Industrial-Grade Design: Durable metal casing, DIN rail compatibility, and wide temperature tolerance ensure operation in harsh environments.
• Alarm Management: Generates alerts (e.g., codes 32-67, 72-107) for out-of-range parameters, enhancing system safety.

Application Scenarios

• Power Generation: Turbine control in gas, steam, and renewable energy plants (e.g., wind/solar) for monitoring temperature, pressure, and flow.
• Oil and Gas: Pipeline pressure/flow monitoring and safety systems in extraction and transportation.
• Smart Grid: Real-time data acquisition for power dispatch and load management.
• Industrial Automation: Sensor signal collection and execution control in CNC machines, assembly lines, and material handling systems.
• Water Treatment: pH, dissolved oxygen, and turbidity monitoring for compliance with discharge standards.
• Environmental Monitoring: Air quality, temperature, and humidity tracking for industrial emissions control.
• Transportation: Railway signal monitoring (e.g., track current/voltage) and intelligent building management (e.g., HVAC, lighting).

Key Advantages

• Legacy Integration: Bridges serial devices with Ethernet-based control systems, protecting investments in older equipment.
• Cost Efficiency: Reduces wiring costs and simplifies system architecture through multi-device connectivity.
• Ease of Use: Pre-configured protocols and diagnostic tools streamline deployment and maintenance.
• Future-Proofing: Ethernet ports support protocol transitions (e.g., Modbus TCP/IP) as systems modernize.
