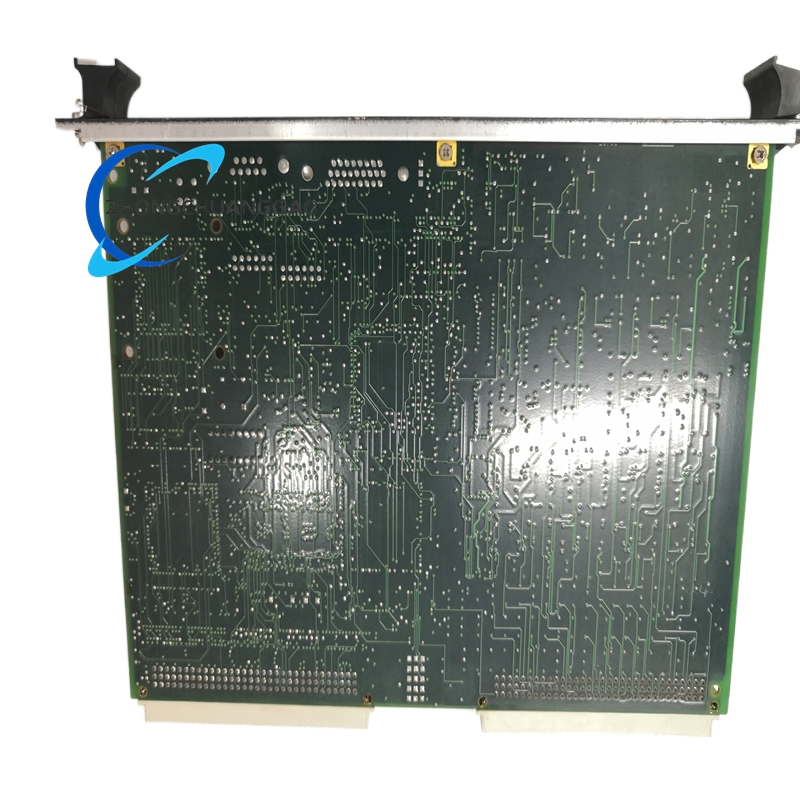

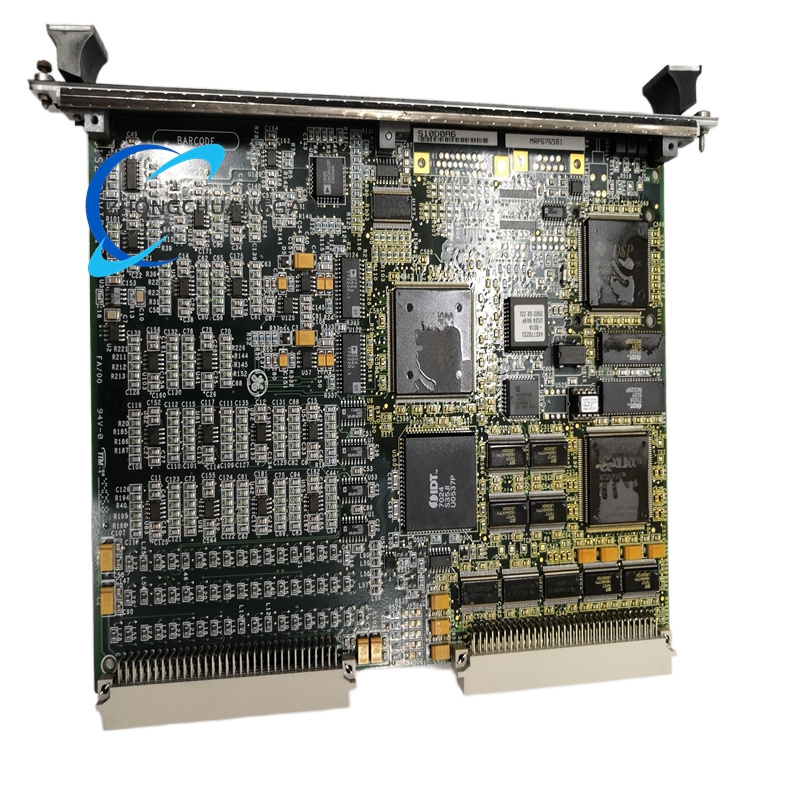

GE IS200VVIBH1CAC Vibration Monitoring Board

Product Overview
The GE IS200VVIBH1CAC is a vibration monitoring board designed for the Mark VI Speedtronic system, which is used in gas and steam turbine management. This board processes vibration signals from connected probes, digitizes them, and transmits the data to the controller via the VME bus. It plays a crucial role in ensuring the safe and efficient operation of turbines by monitoring vibration levels and other critical parameters.

Category:
Description

Technical Specifications

  • Probe Compatibility: Supports Bently Nevada seismic probes, proximity probes, speed probes, and accelerometers.
  • Probe Capacity: Can connect up to 200 probes via DVIB or TVIB terminal boards.
  • Signal Processing: Digitizes vibration signals for analysis and transmission.
  • Power Supply: Provides power to connected probes in both simplex and TMR (Triple Modular Redundant) modes.
  • Connectors: Features two backplane connectors (P1 and P2) and four additional connectors for probe connections.
  • LED Indicators: Includes three LED indicators labeled “Fail,” “Status,” and “Run” for visual status monitoring.
  • Components: Contains inductors/beads (L1 to L55), diodes, capacitors, resistors, and integrated circuits including a Xilinx Spartan FPGA and various types of RAM and SRAM chips.

Functional Characteristics

  • High-Speed Data Processing: Capable of processing and digitizing vibration signals from a large number of probes simultaneously.
  • Redundancy Support: Designed to operate in both simplex and TMR modes for enhanced system reliability.
  • Real-Time Monitoring: Provides real-time vibration data to the controller for immediate analysis and response.
  • Fault Detection: Equipped with LED indicators to quickly identify and diagnose system faults.
  • Modular Design: Easy to install, maintain, and replace within the Mark VI system.

Application Scenarios

  • Gas Turbine Control: Used in gas turbine management systems to monitor vibration levels and prevent potential failures.
  • Steam Turbine Control: Essential for steam turbine control systems to ensure safe and efficient operation.
  • Power Generation: Applied in power plants to monitor and control turbine vibrations, enhancing overall plant reliability.
  • Industrial Automation: Can be integrated into various industrial automation systems for vibration monitoring and fault detection.
  • Oil & Gas Industry: Used in upstream and downstream operations to monitor equipment vibrations and ensure safe production.
