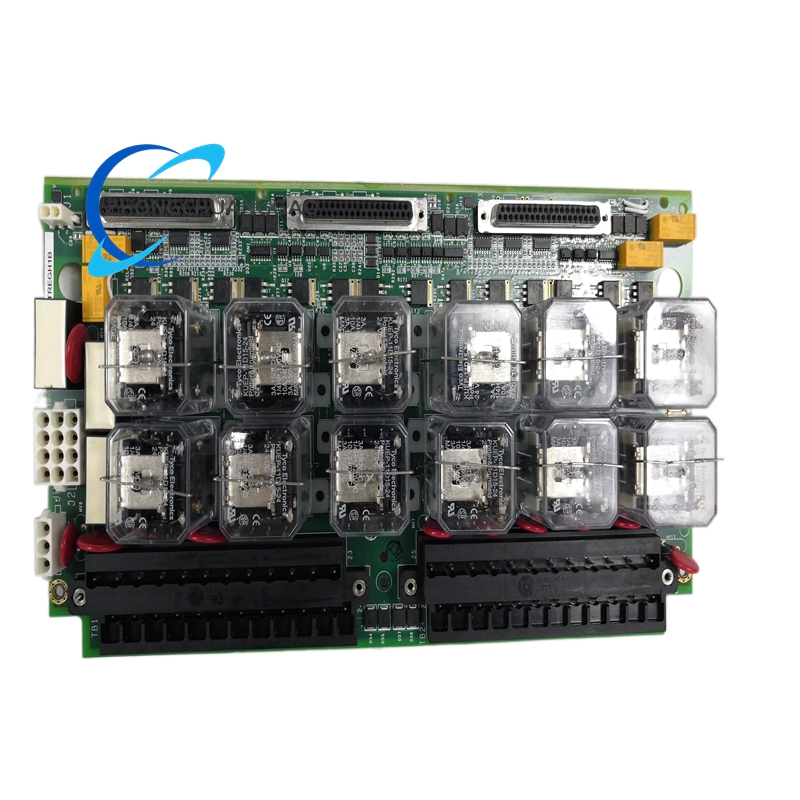

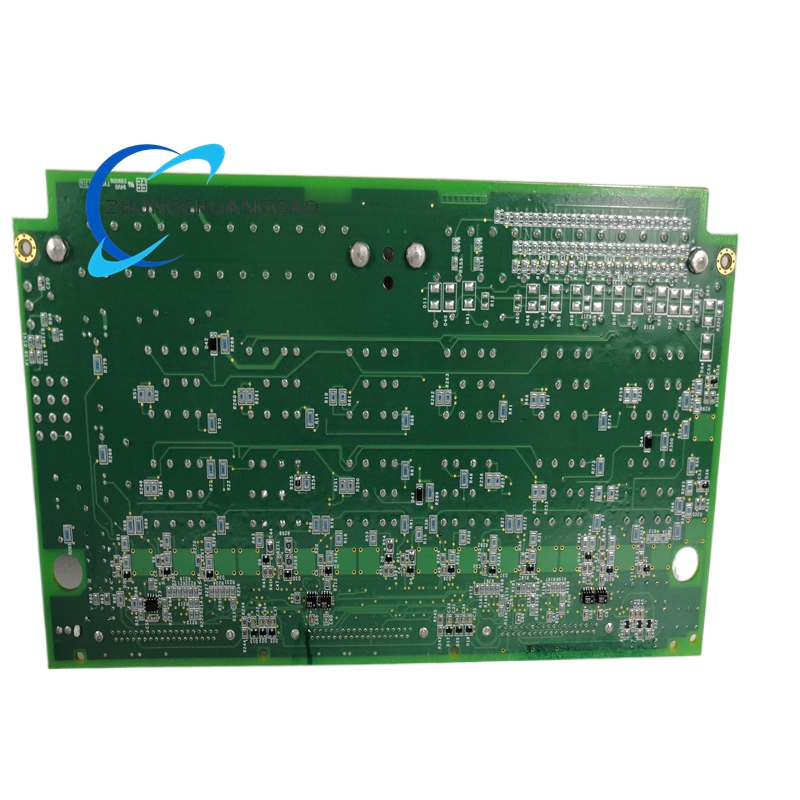

GE IS200TREGH1B TRIP EMERGENCY TERMINATION BOARD

TECHNICAL SPECIFICATIONS

Manufacturer: General Electric (GE) Industrial Systems
Series: Mark VI Speedtronic / Mark VI Series
Product Type: Trip Emergency Termination Board / Turbine Emergency Trip Terminal Board
Functional Acronym: TREG (Trip Emergency Board)

ELECTRICAL SPECIFICATIONS:

• Input Voltage Options: 24 VDC ±10% / 200-250 VAC

• Input Type: DC

• Output Type: Relay

• Relay Type: SPDT (Single Pole Double Throw)

• Output Current Rating: 10 Amperes

• Output Response Time: Less than 5 milliseconds

• Number of Relay/Contactors: 12 large relays or contactors

• Number of Trip Solenoids: 3 units (powered by TREG board)

• Isolation Technology: Opto-isolation, 2500V RMS

SIGNAL CHANNELS:

• Input Channels: 16

• Output Channels: 8

• Terminal Configuration: 48 silver terminal connectors arranged in two rows of 24 each

CONNECTORS AND PORTS:

• Connection Ports: Three jack connector ports (designated JH1, J2, J1)

• 3PL Connector: Transmits conditioned signals to STCA boards

• JE Connector: Transmits generator and line signals

• Backplane Connector: Supports DIN 41612 high-density interface

PHYSICAL DIMENSIONS:

• Width: 100 mm

• Depth: 150 mm

• Height: 20 mm

• Weight: 0.5 kg to 0.52 kg

PROTECTION COMPONENTS:

• MOV Components: Multiple red circular Metal Oxide Varistors for overvoltage protection

• Capacitors: Four large rectangular capacitors arranged in two distinct areas for stable power distribution

• Transformers: Square-shaped units covered with protective transparent plastic

• Potentiometers: Three black variable resistors for fine-tuning system responses

ENVIRONMENTAL SPECIFICATIONS:

• Operating Temperature Range: -20°C to +70°C (Industrial wide temperature range)

• Storage Temperature Range: -40°C to +85°C

• Relative Humidity: 5% to 95% non-condensing

• Environmental Compliance: CE, RoHS

POWER CHARACTERISTICS:

• Maximum Power Consumption: 10 Watts

• Average Power Consumption: 5 Watts

• Power Protection: Overvoltage, reverse polarity, and short circuit protection

RELIABILITY SPECIFICATIONS:

• MTBF (Mean Time Between Failures): Exceeds 500,000 hours

• Standard Compliance: IEC 61000-4-2, IEC 61508 SIL2

• Quality Certification: ISO 9001

BOARD CONSTRUCTION:

• PCB Material: High-density multi-layer FR-4

• Flammability Rating: UL94 V-0

• Mounting Type: Rack mount / Backplane slot insertion

FUNCTIONAL FEATURES

High-Speed Emergency Trip Logic Execution
The IS200TREGH1B implements high-speed emergency shutdown logic capable of responding to system anomalies within less than 5 milliseconds . The board utilizes high-sensitivity relays and opto-isolation technology to ensure reliable trip command execution when critical parameters exceed safe operating limits. The 4-millisecond hardware filter provides additional protection against nuisance trips from electrical noise while maintaining fast response to genuine emergency conditions .

Multi-Channel Input and Output Configuration
The board provides 16 input channels and 8 output channels, offering flexible connectivity for various sensor types, actuator control signals, and external device interfaces . This multi-channel architecture supports comprehensive monitoring of turbine parameters while enabling simultaneous control of multiple protection devices.

Redundant Power Supply Architecture
The IS200TREGH1B features dual power input design that automatically switches to the backup power source when the primary supply fails . This redundant power architecture ensures continuous operation of the emergency trip system even during power disturbances, maintaining protection capabilities without interruption.

Comprehensive Status Indication and Diagnostics
Integrated LED status indicators on the front panel provide real-time visual feedback for critical operating conditions including power status, trip activation, fault conditions, and communication status . The RUN, TRIP, and FAULT indicators enable field personnel to quickly assess board health and identify system anomalies without requiring additional test equipment.

Hot-Swap Maintenance Capability
The modular board design supports online replacement procedures, allowing maintenance personnel to remove and replace the board without powering down the entire control rack . This hot-swap capability reduces Mean Time To Repair to less than five minutes, minimizing turbine downtime during preventive maintenance activities.

High Noise Immunity and Electromagnetic Compatibility
The board meets IEC 61000 series standards for electromagnetic compatibility, providing exceptional noise immunity for operation in high-electromagnetic interference industrial environments . The opto-isolation technology delivers 2500V RMS isolation between input and output circuits, completely eliminating ground loop interference and protecting sensitive control electronics from transient voltages.

Overvoltage Protection with MOV Components
Integrated Metal Oxide Varistors provide robust overvoltage protection by absorbing voltage spikes and clamping transient events . These protection components safeguard the board and downstream field devices from damage caused by lightning strikes, switching transients, and other power disturbances common in industrial electrical environments.

Multiple Redundancy Configuration Support
The board supports single, dual, and triple modular redundancy configurations, enabling system designers to achieve the reliability level required for specific applications . For critical turbine installations requiring maximum availability, the TMR configuration provides triple parallel operation with voting logic that maintains protection integrity even when individual modules require replacement.

Precise Signal Conditioning and Scaling
The IS200TREGH1B performs accurate signal conditioning for various analog and discrete inputs including LVDT position feedback and thermocouple signals . The conditioned signals are passed through the system data bus to the main controller for processing and control algorithm execution.

Transformer-Based Isolation Architecture
Multiple square-shaped transformers covered with protective transparent plastic provide safe electrical isolation between input and output circuits . This transformer-based design ensures secure operation while contributing to the board high reliability in emergency shutdown applications.

Fine-Tuning Adjustment Capability
Three variable resistors or potentiometers enable precise adjustment of system responses to meet specific operational requirements . This fine-tuning capability allows engineers to optimize board performance for unique turbine configurations without replacing components or modifying circuit layouts.

Field-Replaceable Design
All major components including relays, fuses, and terminal connections are designed for straightforward field replacement . The pluggable terminal blocks and modular construction eliminate the need for soldering or specialized tools during maintenance procedures.

APPLICATION SCENARIOS

Gas Turbine Emergency Protection Systems
The IS200TREGH1B is extensively deployed in GE gas turbine control applications as the primary interface for emergency shutdown logic . The board monitors critical parameters including turbine overspeed, exhaust over-temperature, flame loss detection, and vibration levels. When any parameter exceeds safe limits, the board executes trip commands that close fuel control valves and activate braking systems within milliseconds. The high-speed response capability protects turbine blades, bearings, and combustion components from damage during fault conditions.

Steam Turbine Generator Protection
Industrial steam turbine applications utilize the IS200TREGH1B for overspeed protection, low vacuum detection, bearing temperature monitoring, and lubrication oil pressure supervision . In combined cycle power plants and conventional thermal stations, the board coordinates with governor control modules and excitation systems to execute controlled shutdown sequences during grid disturbances. The TMR configuration capability enables these critical facilities to maintain protection integrity during routine maintenance of individual control paths.

Emergency Shutdown Systems for Generator Sets
Emergency generator installations in hospitals, data centers, and critical manufacturing facilities employ the IS200TREGH1B for protection against overload conditions, loss of excitation, reverse power events, and synchronization failures . The board responds to protective relay inputs and initiates immediate generator breaker tripping when grid interconnection faults occur, preventing damage to both the generator and connected utility systems.

Combined Cycle Power Plant Protection
In combined cycle facilities integrating gas turbines, heat recovery steam generators, and steam turbines, the IS200TREGH1B provides coordinated emergency trip functionality across multiple generating assets . The board processes trip commands from the plant Distributed Control System and executes simultaneous shutdown of all generation equipment during emergencies, ensuring safe isolation of energy sources before maintenance activities begin.

Oil and Gas Facility Turbine Control
Natural gas compression stations, pipeline pumping stations, and offshore platform power generation systems use the IS200TREGH1B for protection of gas turbine drivers . The board monitors process parameters including suction pressure, discharge temperature, and compressor surge conditions. When dangerous operating conditions are detected, the board executes emergency shutdown that isolates the turbine from the gas supply and activates blowdown valves.

Industrial CHP System Protection
Combined Heat and Power installations in manufacturing facilities, district heating systems, and campus energy centers employ the IS200TREGH1B for integrated turbine and generator protection . The board coordinates with heat recovery systems to prevent backfeed of steam into idle turbines and ensures proper sequencing of shutdown events to protect both electrical and thermal systems.

Marine Propulsion Turbine Control
Naval vessels, cruise ships, and LNG carriers utilizing steam or gas turbine propulsion systems depend on the IS200TREGH1B for emergency protection of main propulsion turbines . The rugged construction and wide temperature tolerance support operation in marine environments with salt spray exposure. The board processes inputs from engine room sensors and bridge emergency controls to execute rapid turbine shutdown during navigation emergencies.

Power Plant Safety System Integration
Thermal power stations combine the IS200TREGH1B with related modules including IS200TREAS1A trip relays and IS200TRPGH1B trip protection boards to create comprehensive turbine safety systems . This integrated protection architecture meets SIL 2 safety integrity level requirements for critical power generation equipment. The board interfaces with plant fire protection systems and seismic detection equipment to automatically shut down turbines during external hazard events.

SYSTEM INTEGRATION NOTES
The IS200TREGH1B mounts directly to the Mark VI control rack backplane and interfaces with companion boards through dedicated connectors . The IS200TREGH1A termination board provides the connection between the IS200TREGH1B and field wiring, while the IS200TREAS1A trip relay executes the actual switching operations for high-current protection circuits . For power distribution applications, the IS200TREGH1BDB variant provides I/O Pack power distribution functionality within Mark VI systems . The board supports both simplex and TMR configurations, with the H1B revision representing a functional upgrade from the parent IS200TREGH1 assembly.

COMPATIBLE COMPONENTS

• IS200TREGH1A: Termination Board, Trip Emergency

• IS200TREAS1A: Trip Relay Board

• IS200TRPGH1B: Trip Protection Board

• STCA: Signal Conditioning Board

• Mark VI System Backplane

• GE Mark VI I/O Modules

REFERENCE DOCUMENTATION

• GEH-6781 Series Manuals

• Mark VI System Documentation Suite

• GE Control System Toolbox Software compatible

PRODUCT LIFECYCLE STATUS: Active – In-service. The IS200TREGH1B remains installed in operational GE Mark VI turbine control systems worldwide through long-term service agreements with power generation facilities and industrial turbine operators. Replacement units and spare parts are available through authorized GE distributors, Emerson Automation channels, and industrial automation aftermarket suppliers .
