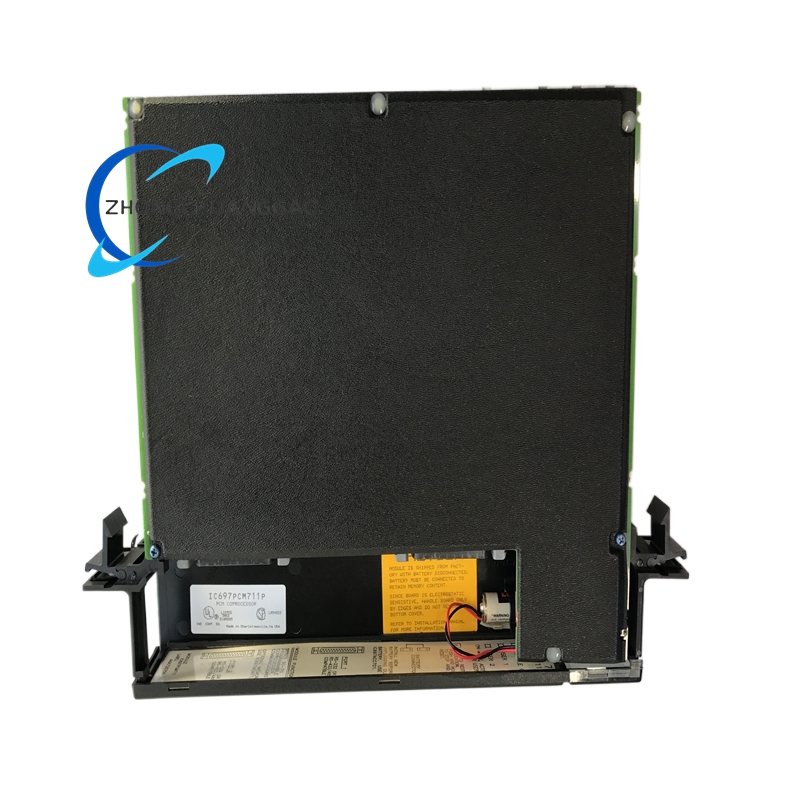

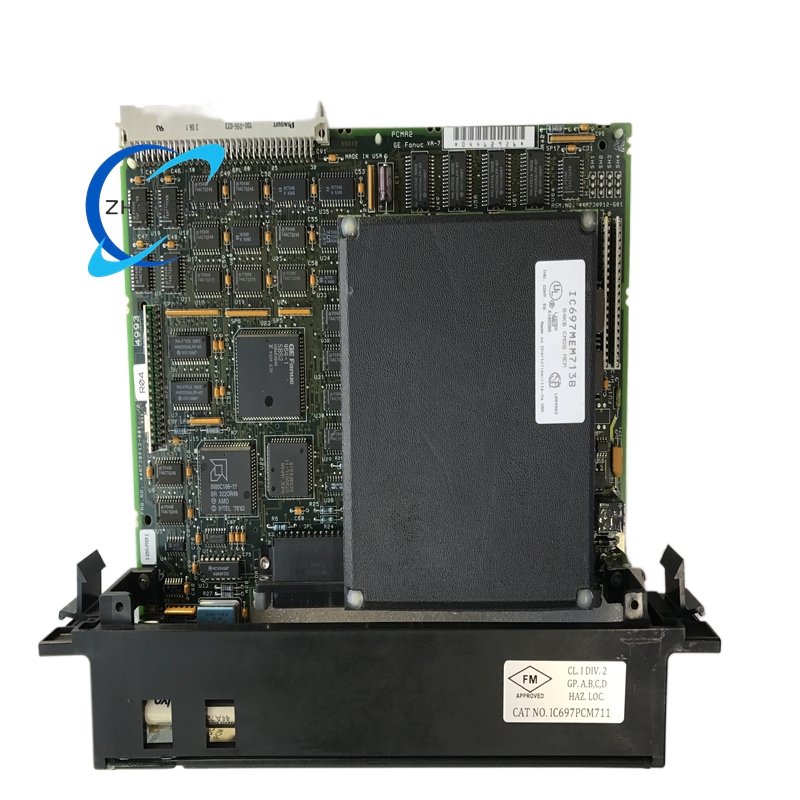

GE IC697PCM711 Programmable Coprocessor Module

Technical Specifications

• Processor: 80C186 microprocessor with a clock speed of 12 MHz.
• Memory:
  • Basic user memory: 95 KB (expandable up to 512 KB using optional expansion memory subboards).
  • Expansion options: 64 KB, 128 KB, 512 KB, or 2586 KB.
• Communication Ports:
  • Two RS-422/RS-485 or RS-232 serial ports for connecting to upstream CPU racks or daisy-chaining additional expansion racks.
• Power Requirements:
  • Current consumption: 1 A from the 5 V bus.
• Status Indicators:
  • Three green LEDs provide real-time feedback on module status, rack activity, and I/O bus terminator plug presence.

Functional Features

• Real-Time Computation: Offloads complex calculations from the main PLC CPU, improving overall system responsiveness.
• Operator Interface Support: Manages display and input functions for HMI applications, reducing CPU workload.
• Data Processing: Handles high-speed data acquisition and processing tasks, such as filtering, scaling, and logging.
• Modular Design: Supports hot swapping and easy installation in standard 90-70 series racks without disrupting system operation.
• Diagnostics and Alerts: Monitors module health and generates alerts for faults or abnormal conditions, facilitating quick troubleshooting.

Application Scenarios

• Manufacturing Automation: Used in assembly lines for real-time motion control, quality inspection, and process optimization.
• Energy Management: Monitors and controls power generation equipment in thermal power plants, ensuring stable and efficient operation.
• Smart Warehousing: Manages automated storage and retrieval systems (AS/RS) by tracking inventory levels and optimizing material flow.
• Water Treatment: Controls filtration, pumping, and chemical dosing processes in municipal and industrial water treatment facilities.
• Oil and Gas: Monitors pipeline pressure, flow rates, and equipment status in upstream and downstream operations.

Installation and Configuration

• Hardware Setup:
  • Install the module in a standard 90-70 series rack, ensuring proper alignment and secure mounting.
  • Connect external devices to the serial ports using appropriate cabling, following the pinout specifications in the user manual.
• Software Configuration:
  • Use GE’s programming software (e.g., Proficy Machine Edition) to configure the module’s tasks, memory allocation, and communication settings.
  • Set up data exchange protocols with the main PLC CPU and other network devices.
• Power Management:
  • Ensure the rack’s power supply meets the module’s 1 A current requirement at 5 V DC.
  • Install optional backup batteries to retain data during power interruptions.
