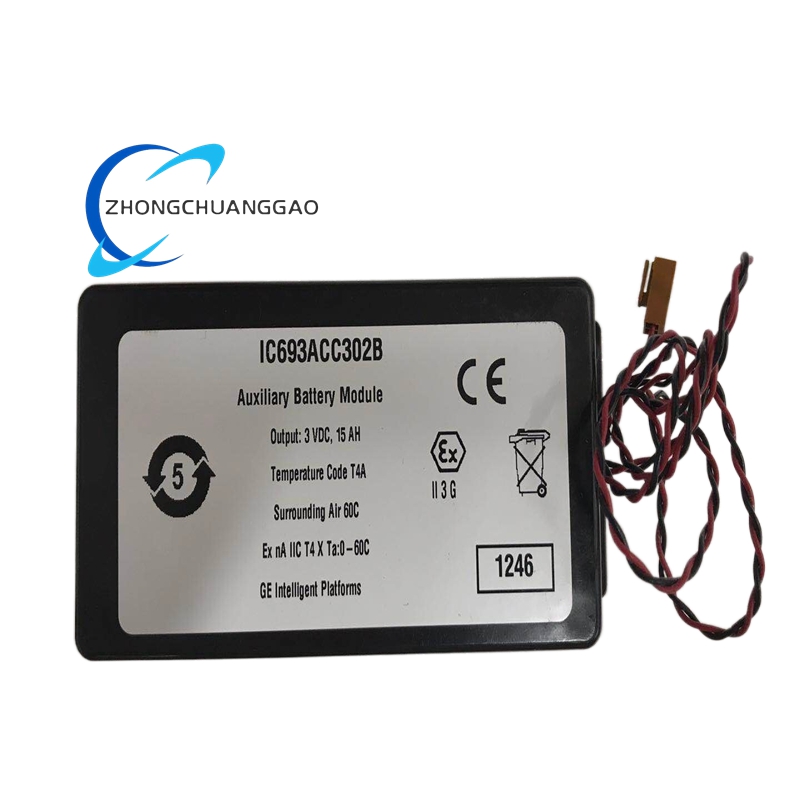

GE IC693ACC302A High-Capacity Lithium Backup Battery

Technical Specifications

• Manufacturer: GE Fanuc / Emerson

• Product Type: Auxiliary Battery Module (Memory Retention)

• Battery Chemistry: Lithium-Thionyl Chloride (Li-SOCl2)

• Nominal Voltage: 3.0 V DC

• Nominal Capacity: 15,000 mAh (15.0 Ah)

• Connection: 2.0 feet (0.6 meters) red/black 24 AWG twisted wire with a 2-pin female keyed connector

• Shelf Life: 7 to 10 years (when stored under proper conditions)

• Internal Protection: 1-Amp sealed fuse for short-circuit and overload protection

• Operating Temperature Range: 0°C to 60°C (32°F to 140°F)

• Storage Temperature Range: -40°C to +85°C

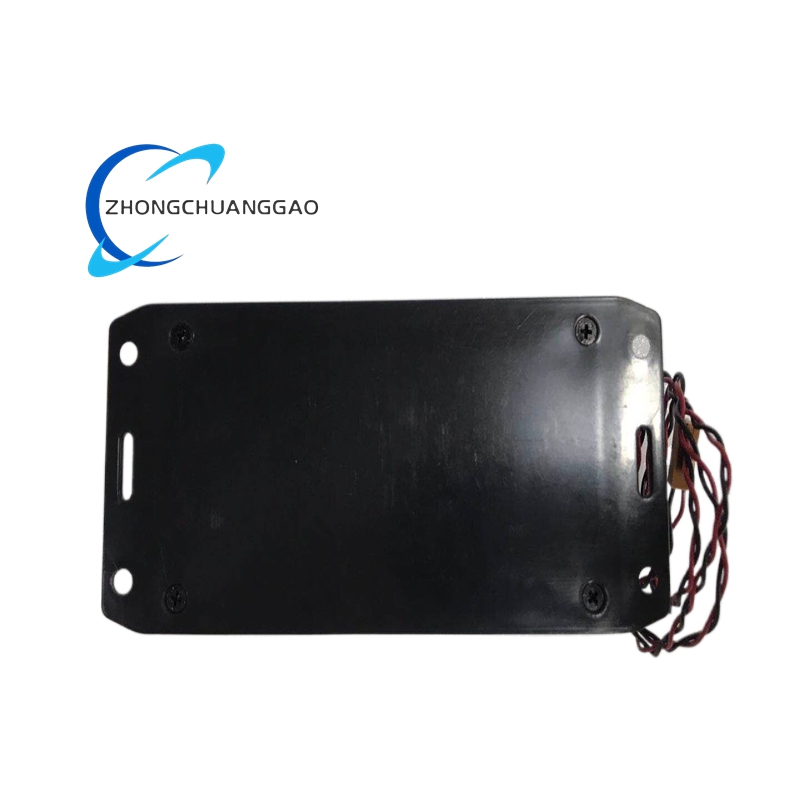

• Case Material: Black, flame-retardant ABS plastic

• Physical Dimensions:

  • Commonly cited dimensions are 145.1 mm x 65 mm x 39.9 mm (5.7 in x 2.5 in x 1.5 in)

  • Weight is approximately 0.3 kg

Key Functional Features

• Extended Memory Backup Time: Provides substantially longer data retention compared to standard internal PLC batteries. For most Series 90-30 CPUs (models 311-364) and all existing IC697 CPUs, the backup time extends up to 75 months. For the IC693 CPU374, it extends up to 15 months.

• High Capacity and Reliability: The 15 Ah lithium battery offers a massive power reserve and a low self-discharge rate. Its shelf life of seven to ten years ensures the module is viable for long-term deployment even before installation.

• Integrated Safety Protections: A 1-Amp sealed fuse is integrated into the battery pack to protect against short circuits or severe overloads, safeguarding the auxiliary battery and the connected PLC’s memory circuit.

• Durable and Safe Enclosure: The entire unit is housed in a black, flame-retardant ABS plastic case designed to withstand mechanical vibrations and the electromagnetic interference common in industrial environments.

• User Alert via PLC: As the battery nears its depletion point, the BATT LED indicator on the host PLC’s CPU module illuminates, providing a clear signal that a replacement is required.

Application Scenarios

• Power Generation and Energy Sector: Protects PLC Memory in power generation facilities, substations, and renewable energy sites where control logic for generator sets and power distribution must be retained through grid faults and extended blackouts.

• Oil and Gas Industry: Preserves critical control programs and data in remote pipeline monitoring, wellhead control, and refinery process systems where power outages can be frequent or prolonged, and on-site maintenance is challenging.

• Water and Wastewater Treatment: Maintains PLC data integrity for chemical dosing schedules, pump control logic, and Supervisory Control and Data Acquisition (SCADA) configurations during power interruptions, preventing operational failures and regulatory non-compliance.

• Industrial and Discrete Manufacturing: Ensures the retention of user programs and configuration data for automated production lines, robotic work cells, and machine control systems, preventing costly downtime and reprogramming after power loss.

• Transportation and Other Critical Infrastructure: Provides essential backup power in applications such as transportation control systems and aerospace support equipment, where data loss due to power failure can have significant operational or safety implications.
