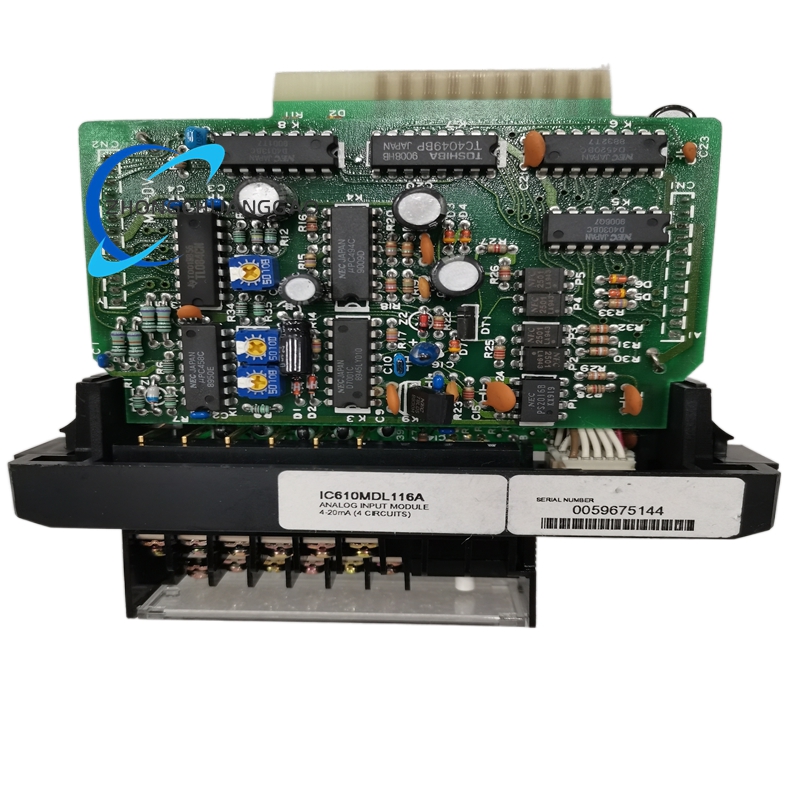

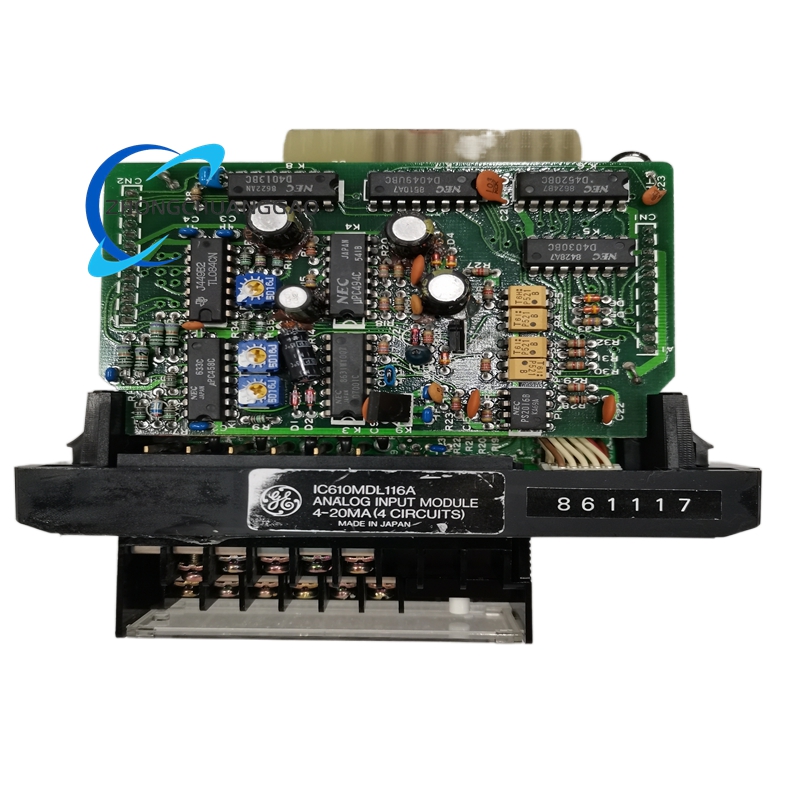

GE IC610MDL116A Analog Input Module

Technical Specifications
The specifications below represent the most frequently cited values across available documentation:

• Manufacturer: General Electric (GE)

• Product Type: Analog Input Module

• Series: Series 1 / Series 90-30/70 PLC

• Input Channels: 4 analog input channels

• Input Type: Voltage or Current

• Input Range: 4–20 mA or 0–10 V, configurable

• Resolution: 12-bit

• Accuracy: ±0.1%

• A/D Conversion Time: Less than 2 ms

• Common Mode Rejection Ratio: Greater than 60 dB

• Noise Immunity: Greater than 10 V RMS

• Power Supply Voltage: 24 V DC

• Power Consumption: 2 W to 2.6 W

• Operating Temperature Range: -40°C to +70°C

• Storage Temperature Range: -40°C to +85°C

• Relative Humidity: 5% to 95% non-condensing

• Enclosure Protection Rating: IP67

• Housing Material: ABS plastic

• Mounting: DIN rail installation

• Dimensions: 90 mm x 30 mm x 25 mm

• Weight: Approximately 100 g

Functional Features

• High-Accuracy Signal Conversion: Delivers 12-bit resolution and ±0.1% accuracy for precise measurement of analog field signals, ensuring reliable data for control decisions .

• Configurable Input Ranges: Supports both 4–20 mA current and 0–10 V voltage input signals, selectable through software configuration to accommodate different sensor types .

• Fast Conversion Speed: A/D conversion is completed in less than 2 milliseconds, enabling rapid response to changes in process variables .

• Strong Noise Rejection: Features common mode rejection exceeding 60 dB and noise immunity above 10 V RMS, maintaining signal integrity in electrically noisy industrial environments .

• Channel Isolation Design: Electrical isolation between channels enhances system protection and reduces interference from ground loops .

• Modular and Compact Construction: DIN rail mountable with ABS plastic housing for easy installation in control cabinets; compact dimensions save panel space .

• LED Status Indication: Built-in LED indicators provide visual feedback on module operational status for simplified diagnostics .

Application Scenarios
This module is deployed across industrial sectors where continuous acquisition of analog process signals is essential:

• Industrial Automation: Collects data from temperature, pressure, flow, and level sensors on production lines and manufacturing equipment .

• Process Control: Monitors critical process parameters in chemical, petrochemical, and pharmaceutical plants to maintain safe and consistent operations .

• Energy and Power Systems: Acquires voltage, current, and power measurements in power generation plants and distribution substations .

• Water Treatment: Connects to sensors monitoring water quality parameters such as pH, turbidity, and conductivity in treatment facilities .

• Food and Beverage Industry: Interfaces with sensors for temperature and pressure monitoring during food processing and packaging .

• Building Automation: Integrates with HVAC sensors, environmental monitors, and building management systems .
